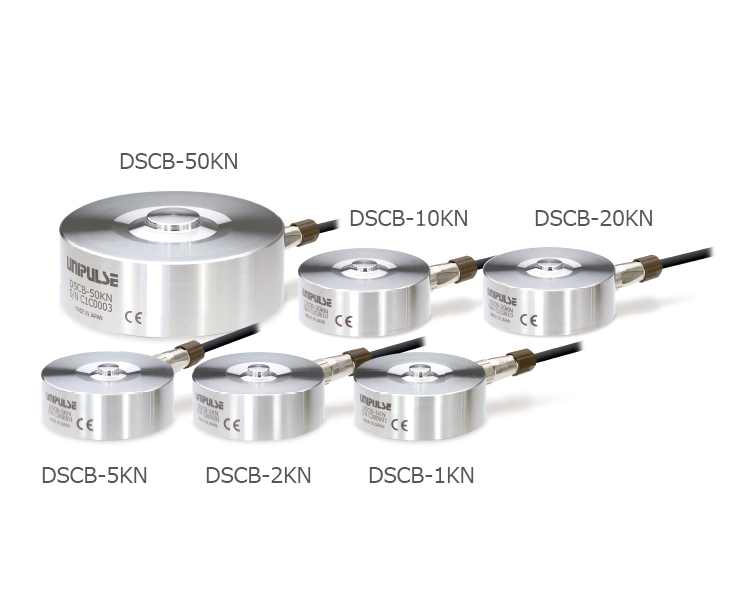

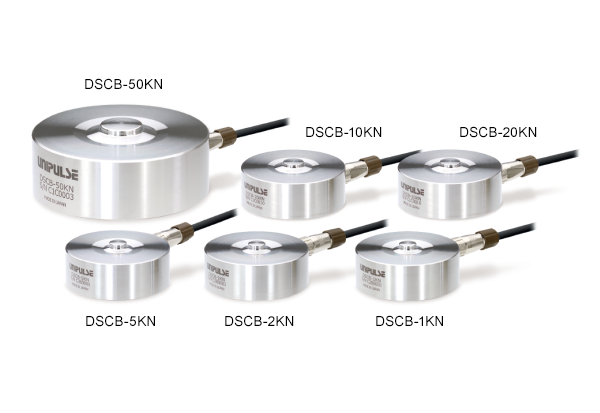

Product outline
Not only the characteristics of high stiffness load cell, but noise resistant digital output incorporated!
●Capacity 1 kN / 2 kN / 5 kN / 10 kN / 20 kN / 50 kN
●High stiffness and Safe overload of 500％
●Excellent maintainability
●Amplifier incorporated
●Hold function and high/low limit comparison function can be used without an indicator!
●Displays load change on PC in real-time
●High stiffness and Safe overload of 500％
●Excellent maintainability
●Amplifier incorporated
●Hold function and high/low limit comparison function can be used without an indicator!
●Displays load change on PC in real-time
High stiffness and Safe overload of 500％
As deformation under load is small, DSCB can be used safely for measuring cutting or grinding force.
With its 500% safe overload, DSCB can stably measure even severe load over a long period.
Excellent maintainability
It is unnecessary to reset the zero point and the sensitivity for the indicator and troublesome cable laying according to a replacement of DSCB.
Customers can detect a sign of DSCB malfunction by recognizing the shift of the zero-point value.
Noise insensitive digital output incorporated!
The output complies with RS-485 and is insensitive to external noises. Thus, you can use long cables unavailable in conventional load cells and indicators.
Abundant functions incorporated
HI/LO limit comparison & a wide variety of hold functions are included.
Sample, Peak, Bottom, Peak & Bottom, Average can be selected for Hold function.
Digital low-pass filter and moving average filter can be adjusted by commands.
Connect to PC and PLC directly without dedicated indicator
By connecting to PC, draw waveforms, logging and such operations can be achieved with dedicated software (for free).
●OK/NOK & stability judgement function
Upper/lower limit comparators (HH, HI, OK, LO, LL)
●Easy initial setting
Export/Import of setting values
●Waveform drawing
By real-time waveform display, visualizes load change of a load cell
Stability & upper/lower limit comparison status can be checked in one glance
Waveform data can be recorded
Stability & upper/lower limit comparison status can be checked in one glance
Waveform data can be recorded
●Record
Record measured values and status (such as upper/lower limit comparison)
USB dedicated software for DSCB
Display load variation on a load cell in real time via USB.
■Display setting
●Normal
Waveform can be acquired up to acquisition time after “Start” button is clicked.
Data acquisition resumes when “Stop” button is clicked
Data acquisition resumes when “Stop” button is clicked
〇Continuous data recording function
Continue data recording until “Stop” button is clicked
〇USB dedicated software for DSCB
Once “Start” button is clicked, the status will turn to trigger standby.
Data acquisition starts when data level passes the specified value in the specified direction.
Data acquisition starts when data level passes the specified value in the specified direction.
●History
Display past data in waveform
■Trigger function
・Pre-trigger ・Level trigger ・Trigger slope
※RS-485-USB converter is required to use the USB dedicated software for DSCB.
（Ask our sales representative for a recommended converter.）
（Ask our sales representative for a recommended converter.）
Specifications
DSCB-1KN, DSCB-2KN, DSCB-5KN
| Model | DSCB-1KN | DSCB-2KN | DSCB-5KN |
|---|---|---|---|
| Rated capacity | 1 kN | 2 kN | 5 kN |
| Safe overload | 500% R.C. | ||
| Non-linearity | 0.1% or less R.O. | ||
| Hysteresis | 0.2% or less R.O. | ||
| Repeatability | 0.1% or less R.O. | ||
| Compensated temperature range |
-10 to +60℃ | ||
| Safe temperature range |
-20 to +70℃ | ||
| Temperature effect on zero | 0.015% R.O./℃ or below | ||
| Temperature effect on span | 0.01% R.O./℃ or below | ||
| Converter resolution |
24 bit | ||
| Deflection at rated | 0.010 mm | 0.012 mm | 0.021 mm |
| Natural frequency | 22 kHz | 22 kHz | 21 kHz |
| Load cell material | Stainless steel | ||
| Weight | 300 g | 300 g | 400 g |
| Power supply voltage |
DC 12 to 24 V±15% (Insulated internally) | ||
| Power consumption | 0.7 W or less | ||
| Digital low-pass filter |
Can be set anywhere between OFF, 0.1 to 999.9 Hz | ||
| Moving average filter |
Can be set anywhere between OFF, 2 to 999 times | ||
| Sampling rate | 4800 times/sec. | ||
| Interface | RS-485 interface (4-wire) | ||
| Operation & setting methods | Display & configuration by command operation or through dedicated software (Free software) |
||
| Dedicated software function | ・Indicated value display ・Waveform display ・Setting changes ・Data logging function |
||
| Display digit number |
5 digits (-99999 to +99999 plus decimal point) | ||
| Other functions | ・Digital zero ・OK/NOK judgement (Upper and lower limit comparison: HH, HI, OK, LO, LL) ・Hold function (Sample. Peak, Bottom, Peak & Bottom, Average) ・Calibration date / rated capacity / serial info read-out |
||
| Cable | φ5 6-conductor flexible cable (2 m) Cable end: 7 wires | ||
| Optional accessories | φ5 6-conductor flexible cable (5 m) Cable end: 7 wires | ||
| CE marking certification |
2011/65/EU+(EU)2015/863, 2014/30/EU(EN61326-1) | ||
DSCB-10KN, DSCB-20KN, DSCB-50KN
| Model | DSCB-10KN | DSCB-20KN | DSCB-50KN | |||
|---|---|---|---|---|---|---|
| Rated capacity | 10 kN | 20 kN | 50 kN | |||
| Safe overload | 500% R.C. | |||||
| Non-linearity | 0.1% or less R.O. | |||||
| Hysteresis | 0.2% or less R.O. | |||||
| Repeatability | 0.1% or less R.O. | |||||
| Compensated temperature range |
-10 to +60℃ | |||||
| Safe temperature range |
-20 to +70℃ | |||||
| Temperature effect on zero | 0.015% R.O/℃ or below | |||||
| Temperature effect on span | 0.01% R.O/℃ or below | |||||
| Converter resolution |
24 bit | |||||
| Deflection at rated | 0.025 mm | 0.035 mm | 0.065 mm | |||
| Natural frequency | 24 kHz | 26 kHz | 15 kHz | |||
| Load cell material | Stainless steel | |||||
| Weight | 400 g | 2.0 kg | ||||
| Power supply voltage |
DC 12 to 24 V±15% (Insulated internally) | |||||
| Power consumption | 0.7 W or less | |||||
| Digital low-pass filter |
Can be set anywhere between OFF, 0.1 to 999.9 Hz | |||||
| Moving average filter |
Can be set anywhere between OFF, 2 to 999 times | |||||
| Sampling rate | 4800 times/sec. | |||||
| Interface | RS-485 interface (4-wire) | |||||
| Operation & setting methods | Display & configuration by command operation or through dedicated software (Free software) |
|||||
| Dedicated software function | ・Indicated value display ・Waveform display ・Setting changes ・Data logging function |
|||||
| Display digit number |
5 digits (-99999 to +99999 plus decimal point) | |||||
| Other functions | ・Digital zero ・OK/NOK judgement (Upper and lower limit comparison: HH, HI, OK, LO, LL) ・Hold function (Sample. Peak, Bottom, Peak & Bottom, Average) ・Calibration date / rated capacity / serial info read-out |
|||||
| Cable | φ5 6-conductor flexible cable (2 m) Cable end: 7 wires | |||||
| Optional accessories | φ5 6-conductor flexible cable (5 m) Cable end: 7 wires | |||||
| CE marking certification |
2011/65/EU+(EU)2015/863, 2014/30/EU(EN61326-1) | |||||

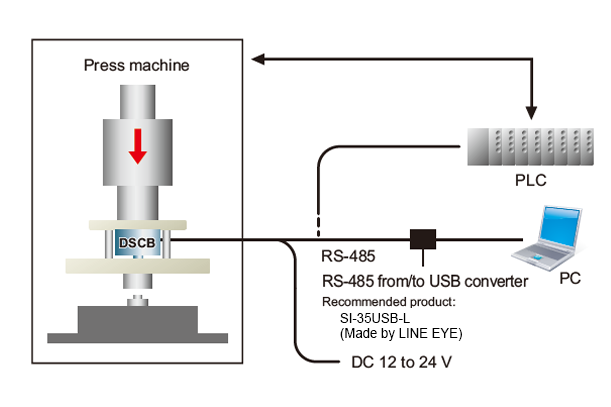

Example of use

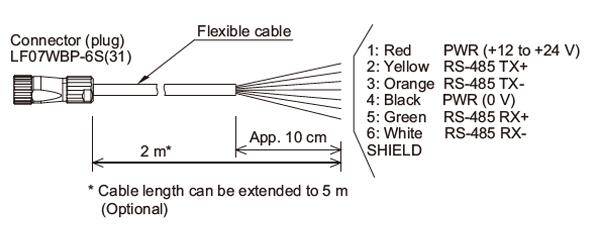

Cable

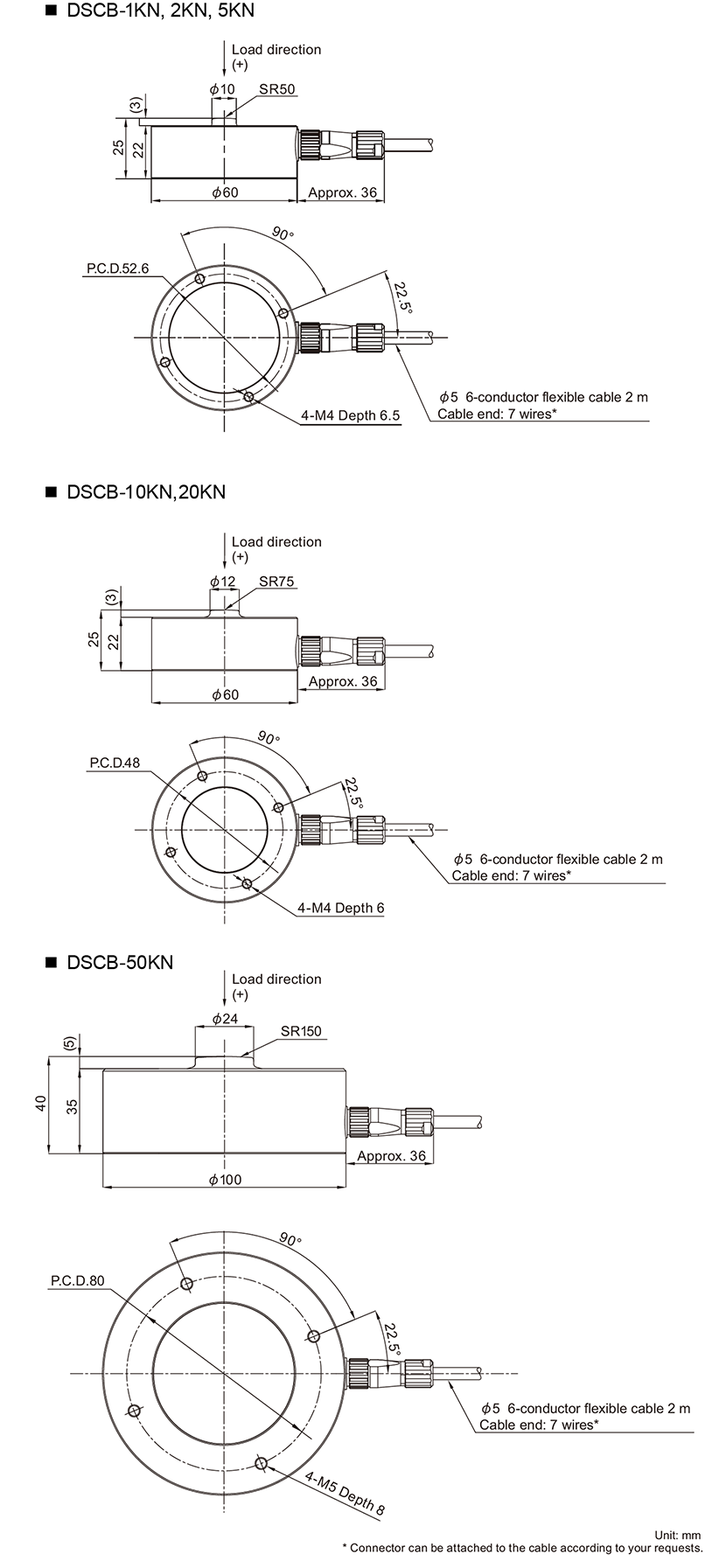

External dimension
