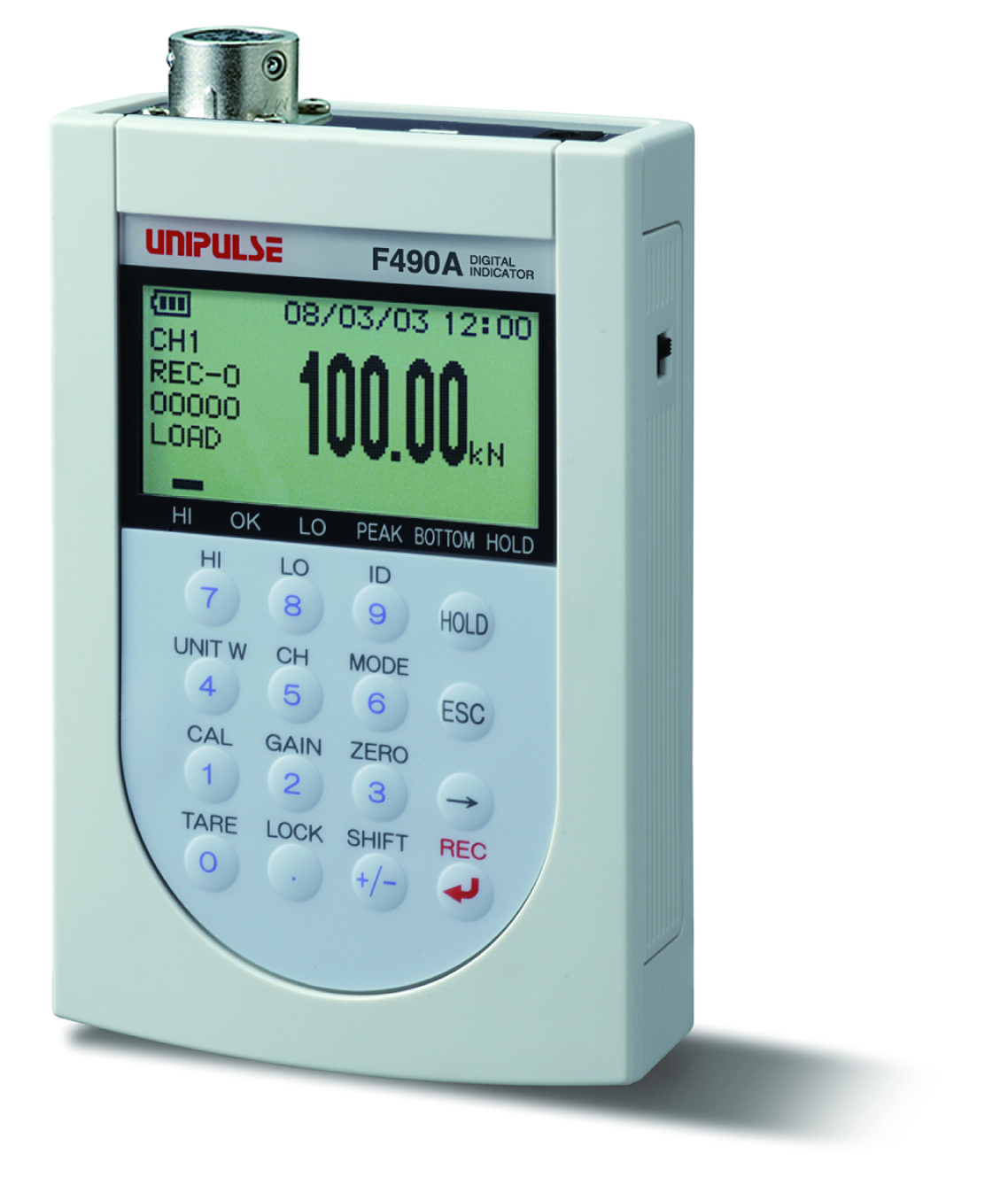

Product outline
Perfect for inspection of load cell embedded into facilities & quick load check!
Small, lightweight and power-saving design best for field use
86(W) × 132(H) × 30(D) mm with weight of approx. 290 g
It can be continuously used for about 30 hours
(when using 1 pc of 350 Ω sensor)
The measured data can be stored in csv format in its
internal memory.
Recorded data can be referred to and copied using its USB interface.

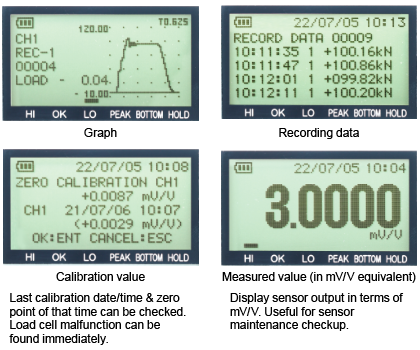

Equipped with a variety of information display such as graph, recorded data, measured value (in mV/V equivalent) etc.
Hold function
Peak/ Bottom/ P-P/ Sample (data monitoring range can be set)
Multi calibration function
Stores 6 channels of calibration value; selectable arbitrary calibration value according to sensors at fields
Optional accessories
With a 4-wire terminal block connector (sold separately), a cable with loose ends is easily connectable
Specifications
Analog section｜Display section｜Setting section｜Recorder｜Hold section｜Measuring mode｜Display mode｜Clock｜Interface｜General specifications｜Attachments｜Optional accessories
| Analog section | |
| Excitation voltage | DC 3 V±10%, Output current: within 35 mA |
|---|---|
| Signal input range | -3.0 to +3.0 mV/V |
| Calibration range | -3.0 to -0.05 mV/V, +0.05 to +3.0 mV/V |
| Accuracy |
Non-linearity: within 0.02% FS (at 3.0 mV/V input) Zero drift: within 0.3 μV/℃ RTI Gain drift: within 5 ppm/℃ |
| A/D converter |
Speed: Selectable from 80, 400, or 1200 times/sec. Resolution: 24 bit (binary), Approx. 1/30000 at 3.0 mV/V input |
| Display section | |
| Display unit | 128 × 64 dot black and white LCD |
|---|---|
| Measured value | 5 digits: -99999 to +99999, Sign: Character height: 14 mm |
| Status display |
Status display 1: R(Recording)/ A(AC adapter on use)/ U(USB in connection)/ N(NOV RAM reading)/ B(Backup battery abnormal) Status display 2: HI/ OK/ LO/ PEAK/ BOTTOM/ HOLD |
| Setting section | |
| Setting items | ･ Tare*/ equivalent input calibration/ span calibration/ zero calibration(one-touch zero)/ weight unit setting*/ channel setting/ HI setting/ LO setting/ machine ID setting*/ setting value lock ･ Unit/ digital filter/ MD(period, range)/ ZT(period, range)/ near zero/ digital zero/ minimum scale/ ADC sampling rate ･ Data/ buzzer/ backlight/ auto off/ version display/ memory check/ initialization ･ Hold: mode/ range/ start level/ end level/ monitoring time ･ Graph: time axis*/ mode*/ trigger edge*/ trigger level*/ pre-trigger* ･ Operation mode/ HI/LO comparison mode/ measuring mode*/ recording mode*/ real-time output* * Not usable at simple operation mode |
|---|---|
| Recorder | |
| Recording function | ･ Records when [REC] key is pressed ･ Records when stability is detected ･ Records the Hold value when the Hold is cancelled ･ Interval recording(records data at every fixed interval) ･ Records graph data(records data displayed in graph) |
|---|---|
| Recording media | Internal memory |
| Recording method | Text form of CSV format |
| Recording data | ID, number of recordings, recording data, measured channels, measured values, unit |
| Number of recording data | 20,000 data |
| Hold section | |
| ･ Hold Mode: Peak/ Bottom/ P-P/ Sample ･ Data monitoring range: All ranges/ level/ level+time |
|
| Measuring mode | |
| Load measuring/ counting | |
| Display mode | |
| Measured value/ graph/ recorded data/ measured value (in mV/V equivalent) | |
| Clock | |
| Display | Year (last two digits), month, day, hour, minute |
|---|---|
| Accuracy | Lunar inequality 1 minute. (ordinary temperature) |
| Interface | |
| USB interface | |
| General specifications | |
| Internal power supply | AA alkaline batteries or Nickel metal-hydride rechargeable battery (4 pcs) |
|---|---|
| External power supply | Special AC adapter (Optional) |
| Power consumption | Approx. 60 mA (when a 120 Ω sensor is connected, backlight OFF) Approx. 70 mA (when a 120 Ω sensor is connected, back light ON) |
| Backup power supply | Lithium battery for storing of setting values and recorded data (stores up to 5 years or more) |
| Continuous usage duration | Approx. 30 hours (when connected to 350 Ω sensor with backlight OFF) Approx. 12 hours (when connected to 120 Ω sensor with backlight OFF) |
| Operating conditions | Operation temperature: -10℃ to +40℃ Humidity: 80% RH or lower（non-condensing) |
| External dimension | 86(W) × 132(H) × 30(D) mm (Not including projections) |
| Weight | Approx. 290 g (including the 95 g weight of battery) |
| CE marking certification | EMC directives: EN61326-1 Safety standard: EN62311 |
| Attachments | |
| Sensor connector | 1 |
|---|---|
| AA alkaline battery | 4 |
| CD-ROM | 1 |
| Operation manual | 1 |
| Optional accessories | |
| AP0516 | Special AC adapter |
|---|---|
| AP0520A | Special AC adapter (for free power source) |
| TM400 AC CABLE EU | AC cable (for Europe) |
| CA81-USB | USB Type-A – miniUSB cable 1.8 m |
| CBB-01-4W | 4-wire terminal block connector |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
