Product outline

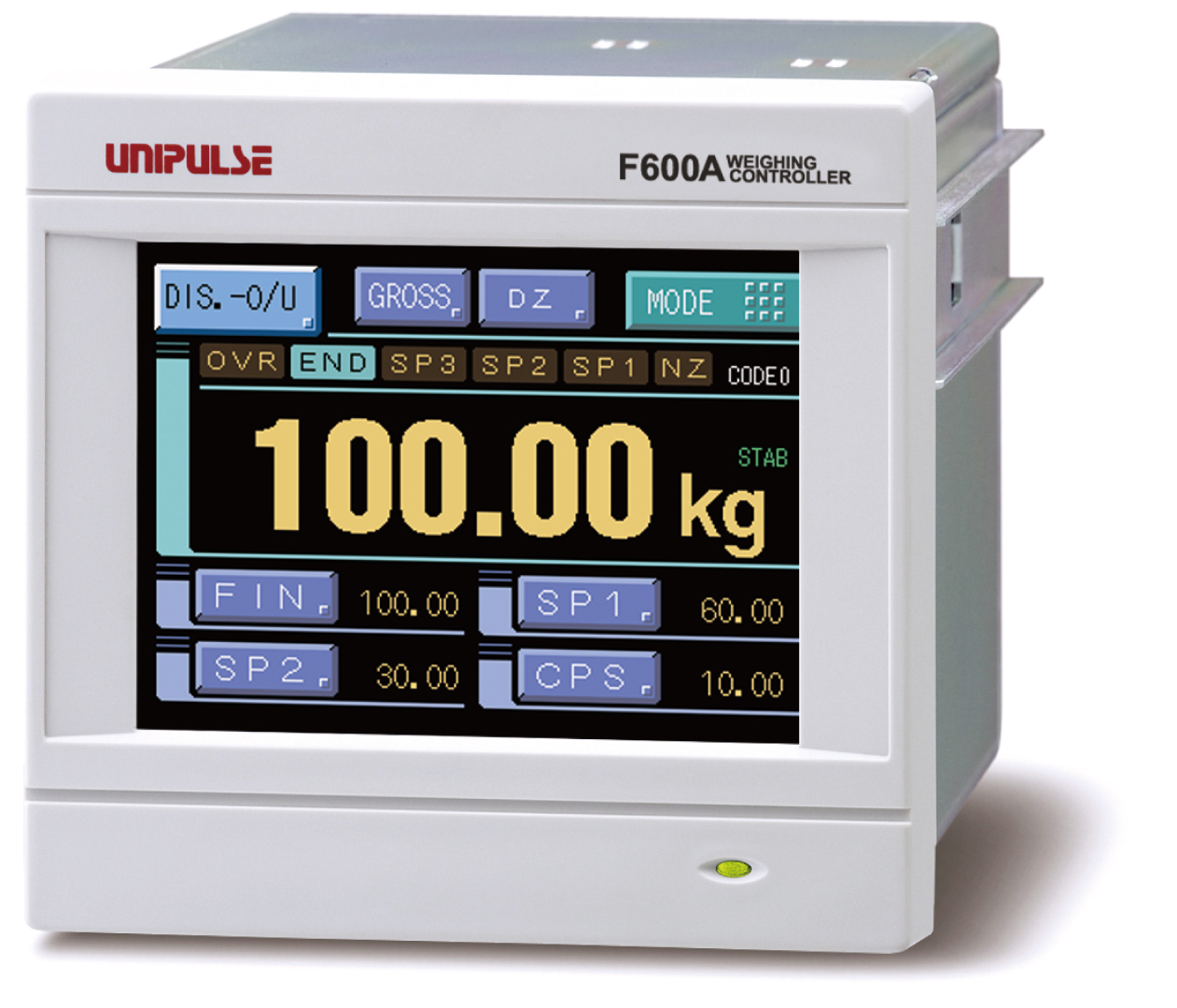

F600AT is a low-priced weighing controller that pursues operability and functions. Adoption of the LCD touch panel that allows easy operation without a manual has realized excellent visibility and operability. This is a practical device packed with the functions required for weighing such as direct connectability to PCs and PLCs including RS-232C, CC-Link and DeviceNet, besides the waveform display function.
- 3.5 inch color LCD module & touch panel

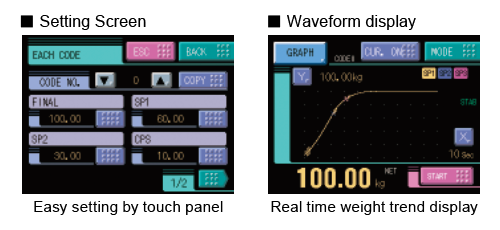

Weight is graphically displayed in real time. The color LCD and touch panel are equipped with backlight for improved visibility on guidance messages so that setting can be performed without the instruction manual. - Memory for 8 types of codes
Up to 8 kinds of setting values such as final value can be saved, the code selection can be done via external signal. - Direct PLC connection
CC-Link and DeviceNet can directry connect to PLC. - DIN-size 96×96 for easy installation

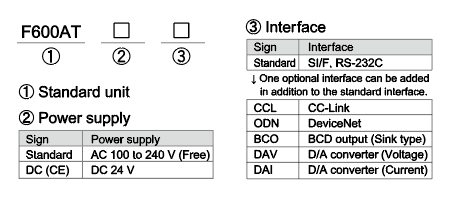

Structure of product code
Specifications
Analog section｜Setting section｜External signal｜Interface｜Display section｜General specifications｜Attachments
| Analog section | |
| Excitation voltage | DC 10 V±5%, Output current: within 120 mA, Remote sense type (Up to 4 350 Ω load cells can be connected in parallel.) |
|---|---|
| Signal input range | -0.2 to +3.0 mV/V |
| Zero adjustment range | -0.2 to +3.0 mV/V Automatic adjustment by digital processing |
| Gain adjustment range | Automatic adjustment by digital processing |
| Accuracy | Non-linearity: within 0.02% FS±1 digit (at 3 mV/V input) Zero drift: within 0.25 μV/°C RTI Gain drift: within 25 ppm/°C |
| A/D converter | Speed: 100 times/sec. Resolution: 24 bit (binary) |
| Analog filter | Bessel low-pass filter (-12 dB/oct.) Selectable from 2, 4, 6, 8 Hz |
| Secondary calibration | Equivalent input calibration method that allows calibration by simply key-inputting the rated value of a sensor without applying an actual load; Min. calibration resolution at secondary calibration (1/1000 at room temperature) |
| Setting section | |
| Setting method | Set by touch panel operation |
|---|---|
| Memory of set values | ･ Initial values : NOV RAM (nonvolatile RAM) ･ Other values : Lithium-battery-backed-up C-MOS RAM (The memory life is approx. 7 years or more, which varies depending on the operating conditions and storage environment.) ･ Crucial setting values: (calibration, comparison, operational setting, etc.): NOV RAM (Non-volatile RAM) |
| Protection of set values | ･ Setting operation can be prohibited to prevent changes by misoperation. (LOCK1, LOCK2) |
| Setting item | ･ EACH CODE (Comparison mode: HI-LO COMP) HH, HI, LO, LL ･ EACH CODE (Comparison mode: DIS) FINAL, SP1, SP2, CPS, AFFC, OVER/HI (selectable depending on setting), UNDER/LO (selectable depending on setting) ･ COMPARISON Comp Mode Selection, Comp. Inhibit Time, Judging Time, Complete Output Time, AFFC, Cps. Coefficient, Avg. Count of AFFC, Discharge Control Mode, Complete Signal Out, Over/under Comparison, Hi/lo Comparison Selection, Near Zero Comparison, Preset Tare Weight 1, Near Zero, Preset Tare Weight 2 ･ OPERATION Digital Filter, Analog Filter, MD (Period), MD (Range), Display Freq., ZT (Period), ZT (Range), Indicate Color, Back Light, Display Select, Hi/lo Output Selection, Lock1, Lock2 ･ GRAPH Ggraphic Mode, Trigger Level, X End Point, Y Start Point, Y End Point, Drawing Weight ･ SYSTEM Initialization, Self check, Password, Language, Key Valid/invalid, B4 Function Selection ･ CALIBRATION Zero Calibration, Span Calibration, Equiv. Input Calibration, Balance Weight, Min. Scale Div., Net Over, Gross Over, Unit Display, Decimal Place, DZ Regulation Value ･ SEQUENCE MODE Sequence Mode, Adjust Feeding, At Start NZ Conf., At Start WV Conf., Adjust Feeding Time, AZ Times, Judging Times |
| Display section | |
| Display unit | TFT color LCD module Display area: 71 (W) x 53 (H) mm, 320 x 240 dot |
|---|---|
| Measured value | 5 digits Sign: Minus sign on most significant digit |
| Unit | Selectable from t, kg, g, N, lb, none |
| Status display | NET/GROSS / HOLD / STAB / ZT / ZALM / NZ / HH*1 / HI*1*3 / GO*1 / LO*1*3 / LL*1 / SP1*2*3 / SP2*2*3 / SP3*2*3 / COMPLETE*2*3 / OVER*2 / UNDER*2 *1 Display at HI/LO limit comparison mode *2 Display at Final discharge-Over/Under comparison mode *3 Display at Final discharge-HI/LO limit comparison mode |
| External signal | |
| External output signal (9) |
– At HI/LO limit comparison mode HH / HI / GO / LO / LL / NZ / ERR / STAB – At Final discharge mode SP1 / SP2 / SP3 / COMPLETE / OVER/HI / UNDER/LO / NZ / ERR / STAB Transistor open collector output. (Emitter = COM terminal) The output turns to LOW when the transistor turns ON. Vceo = 30 V (max), Ic = 50 mA (max) |
|---|---|
| External input signal (11) |
D/Z / TARE ON / TARE OFF / HOLD or JUDGE / Feed/Discharge / Gross/Net switching / CODE select/KEY LOCK / START / STOP ON when shorted with COM terminals by contact (relay, switch, etc.) or non-contact (transistor, TTL open-collector output, etc.) Ic = 10 mA or lower |
| Interface (Only 1 option can be installed) | |
| SIF | 2-wire type serial interface |
|---|---|
| 232 | RS-232C communication interface |
| CCL | CC-Link interface(Option) |
| ODN | DeviceNet interface(Option) |
| BCO | BCD parallel data output interface(Option) |
| DAV | D/A converter voltage output(Option) |
| DAI | D/A converter current output(Option) |
| General specifications | |
| Power supply voltage | AC 100 to 240 V(+10%-15%) (Free power source 50/60 Hz) DC 24 V (±15%) (For DC, please specify when ordering) |
|---|---|
| Power consumption | 4 W typ. |
| Operating conditions | Operating temperature: -10 to +40°C Storage temperature: -20 to +60°C Humidity: 80% RH or less (non-condensing) |
| External dimension | 96(W) × 96(H) × 138(D) mm (Not including projections) |
| Weight | Approx 1.0 kg |
| Attachments | |
| AC input cord (Nominal rating: 125 V) 3 m* | 1 |
|---|---|
| Mini-driver (when D/A converter option is selected) |
1 |
| Jumper wire | 2 |
| FCN series I/O connector (with cover) | 1 |
| BCD output connector (when BCD output option is selected) | 1 |
| DeviceNet connector (when DeviceNet option is selected) | 1 |
| CC-Link connector (when CC-Link option is selected) | 1 |
| Operation manual | 1 |
| Analog I/O connector terminal block (Already mounted on the main unit) |
1 |
* To be attached only for AC specifications.
| Optional accessories | |
| CA372-I/O | Cable with FCN connector at one-end 3m |
|---|---|
| CA600-BCDCNV | FCN connector 32p-57・36p cabtyre cable 0.3 m |
| CA81-232X | miniDIN-D-Sub9p cross cable 1.5 m |
| CAAC2P-B3 | AC input cord 3 m (Same as the attachment) |
| CAAC3P-B3 | AC input cord 3 m |
| CA325AC3P-B3 | AC input cord 3 m |
| CAAC3P-CEE7/7-B2 | AC input cord (Voltage resistance:250 V) 2 m |
| CA325AC3P-CEE7/7-B2 | AC input cord (Voltage resistance:250 V) 2 m |
| CN50 | FCN series I/O connector (with cover)(Same as the attachment) |
| CN51 | BCD output connector |
| CN55 | FCN series I/O connector (with diagonal cover) |
| CN60 | Round DIN8p connector for RS-232C |
| CN71 | CC-Link connector |
| CN72 | Double row connector for CC-Link |
| CN80 | Analog I/O connector terminal block (Same accessory as the attached one) |
| CND01 | DeviceNet connector |
| DTC2-PSL | Case for F600AT |
| GMP96 × 96 | Rubber packing |
| TSU03 | Lightning surge protector |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
