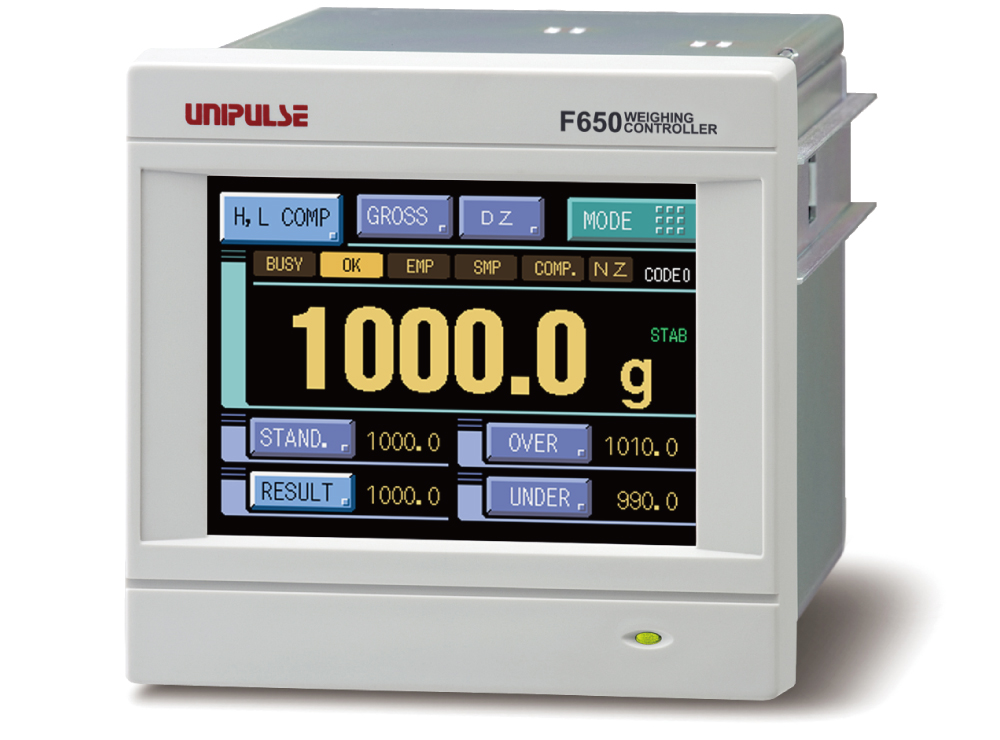

Product outline
With high-performance filter to attenuate noise and vibration, stable and accurate weight measurement can be achieved.
All necessary functions for check weighers like over/under evaluation, ranking or sorting, various weighing modes, conveyor controls, statistics, and so on are packed into this model.
High-performance filter to attenuate vibration
Cut-off frequency for low-pass filter with steep property can be adjusted in fine increment for in-motion check weighers.Stable and accurate weighing can be achieved even in an environment with a lot of vibration.

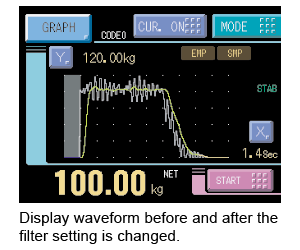

Waveform display
Waveform can be constantly monitored.Since the effect of filter can be visually checked (simulated), the adjustment of filter settings can be performed easily.
Over/under evaluation and ranking functions
Check if the weight is over or under the target weight, and/or sorting into preset grades or classes (sorting into 11 grades or classes at the most).
Useful weighing modes to improve efficiency and accuracy
Auto sorting mode is useful when conveyor speed, size, and weight are not constant.
Reduction of processing capacity can be prevented as zero adjustment can be performed during operation.
Detect the situation where two cartons are on the scale.
2Even if two cartons are on scale, weight of each individual carton will be weighed and judged (OK/NG).

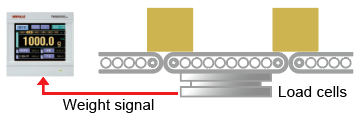

Conveyor control
Control signal is sent out for controlling conveyor.In-motion check weigher can be designed with only F650-CK.
Real-time statistic function
In order to process statistics in real time, you can constantly check and monitor the variation and distribution of data.
Specifications
| Analog section | |
| Excitation voltage | DC 5 V±5% Output current: within 90 mA Ratiometric method (Up to 4 350 Ω load cells can be connected in parallel.) |
|---|---|
| Signal input range | -0.3 to +3.0 mV/V |
| Zero adjustment range | -0.2 to +3.0 mV/V Automatic adjustment by digital computation |
| Gain adjustment range | Automatic adjustment by digital computation |
| Accuracy | Non-linearity: within 0.01% FS±1 digit (when 3.0 mV/V is input) Zero drift: 0.025 μV/℃ RTI Typ. Gain drift: 1 ppm/℃ Typ. |
| A/D converter | Conversion rate: 1000 times/sec. Resolution: 24 bit (binary) |
| Theoretical calibration | Equivalent input calibration: accuracy when theoretical calibration is performed: 1/1,000 |
| Filter | |
| Digital filter | Moving average (common for all modes): OFF, 2 to 999 times |
|---|---|
| Low-pass filter | Variable: 2.0 to 10.0 Hz |
| Display section | |
| Display unit | TFT color LCD module 3.5 inch (320×240 dot) Display area: 71(W) x 53(H) mm |
|---|---|
| Weight display | 5-digits (signs: minus sign on the highest numerical digit) |
| Unit | NONE, kg, t, g, N, or lb (selectable) |
| Decimal place | 0, 0.0, 0.00, or 0.000 (selectable) |
| Status display | BUSY, GO, EMP, SMP, COMP, NZ, STAB, RANK1 to 11 |
| Setting section | |
| Setting method | Setting by analog touch panel operation (with a key click buzzer) Setting can be performed by external devices as well via RS-232C interface and so on. |
|---|---|
| Setting value memory | Initial values F.RAM (nonvolatile RAM), other values : lithium-battery-backed-up C-MOS RAM |
| Settings protection | Setting operation can be prohibited to prevent changes by miss-operation (LOCK1, LOCK2, LOCK3). |
| Setting item | ・Standard mode (COMP MODE SEL.: COMP): CODE/ STANDARD/ OVER/ UNDER/ UPPER/ LOWER ・Standard mode (COMP MODE SEL.: RANK.1): CODE/ BOUNDARY 0/ BOUNDARY 1/ BOUNDARY 2/ BOUNDARY 3/ UPPER/ LOWER ・Standard mode (COMP MODE SEL.: RANK.2): CODE/ BOUNDARY 0/ BOUNDARY 1/ BOUNDARY 2/ BOUNDARY 3/ BOUNDARY 4/ BOUNDARY 5/ BOUNDARY 6/ BOUNDARY 7/ BOUNDARY 8/ BOUNDARY 9/ UPPER/ LOWER ・Checker mode: ・State output: ・Graph: ・Result: ・Comparison: ・Operation: ・Communication: ・System: ・Calibration: |
| Total function | |

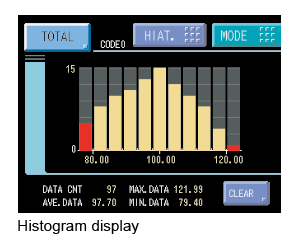

| Histogram display | Numbers of data for each 9 weight ranges are displayed. Two set of data out of the range are displayed as well. |
|---|---|
| Weighing results | Results are displayed for each code. |
| Statistics | Display statistics data stored on F650-CK. Display average weight, maximum weight, minimum weight, number of data, population standard deviation, sample standard deviation, difference between maximum and minimum, latest data. |
| External signal | |
| External output (10) | OVER or RANK1 or RANK20/ GO or RANK2 or RANK21/ UNDER or RANK3 or RANK22/ NONE or RANK4 or RANK23/ NONE or RANK5 or STROBE/ OUTPUT SEL. 0/ OUTPUT SEL. 1/ OUTPUT SEL. 2/ OUTPUT SEL. 3/ OUTPUT SEL. 4 |
|---|---|
| External input (10) | CODE0/ CODE1/ CODE2 or KEY LOCK/ Graph drawing/ D/Z ON/ TARE ON/ TARE OFF/ Accumulation command/ Measurement start/ Measurement reset |
| Interface (Only one option can be installed.) |
|
| SIF | 2-wire serial interface |
|---|---|
| 232 | RS-232C communication interface |
| CCL | CC-Link interface (option) |
| ODN | DeviceNet interface (option) |
| BCO | BCD parallel data output interface (Sink type) (option) |
| BSC | BCD parallel data output interface (Source type) (option) |
| DAV | D/A converter(voltage output) (option) |
| DAI | D/A converter(current output) (option) |
| 485 | RS-485 communication interface (Modbus-RTU/ UNI-format) (option) |
| General specifications | |
| Operating voltage・Power consumption | AC 100 to 240 V ±10 to 15% (50/60 Hz) 4 W typ. |
|---|---|
| Operating conditions | Operation temperature: -10 to +40℃ Storage temperature: -20 to +60℃ Humidity: 80% RH or less (non-condensing) |
| Dimension | 96(W) × 96(H) × 138(D) mm (Not including projections) |
| Weight | Approx. 1.0 kg |
| Attachments | |
| AC power cable (voltage resistance: 125 V) (3 m) | 1 |
|---|---|
| Jumper wire | 2 |
| Operation manual | 1 |
| FCN series I/O connector (with cover) | 1 |
| Analog I/O connector terminal block (Already mounted on the main unit) |
1 |
| Mini driver (when D/A converter option is selected) | 1 |
| BCD output connector (when BCO option is selected) | 1 |
| DeviceNet connector (with ODN option is selected) | 1 |
| CC-Link connector (when CCL option is selected) | 1 |
| Optional accessories | CA372-I/O | Cable with FCN connector at one-end 3 m |
|---|---|
| CA600-BCDCNV | FCN connector 32p-57・36p cabtyre cable 0.3 m |
| CA81-232X | miniDIN-D-Sub9p cross cable 1.5 m |
| CAAC2P-B3 | AC input cord 3 m (Same as the attachment) |
| CAAC3P-B3 | AC input cord 3 m |
| CA325AC3P-B3 | AC input cord 3 m |
| CAAC3P-CEE7/7-B2 | AC power cable (voltage resistance: 250 V) 2 m |
| CA325AC3P-CEE7/7-B2 | AC input cable (voltage resistance: 250 V) 2 m |
| CN50 | FCN series I/O connector (with cover)(Same as the attachment) |
| CN51 | BCD output connector |
| CN55 | FCN series I/O connector (with diagonal cover) |
| CN60 | Round DIN 8p connector for RS-232C |
| CN71 | CC-Link connector |
| CN72 | Double row connector for CC-Link |
| CN80 | Analog I/O connector terminal block (Same as the attachment) |
| CND01 | DeviceNet connector |
| DTC2-PSL | Case for F650 |
| GMP96 × 96 | Rubber seal |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.

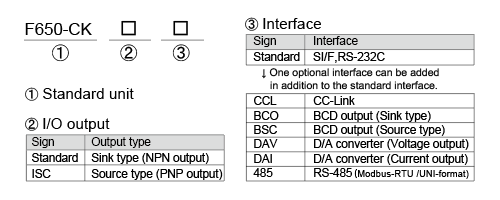

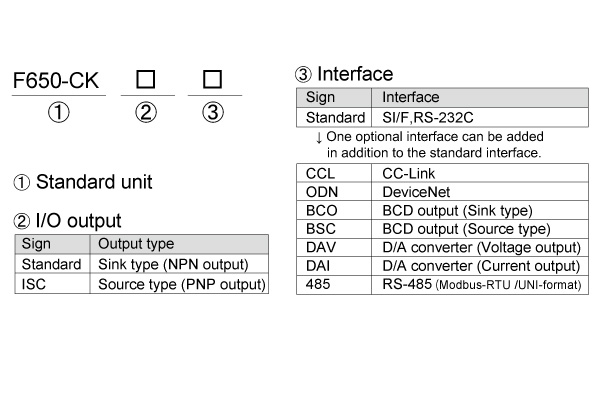

Structure of product code
