Please specify requirement for CE marking certified product when making your order.
Product outline

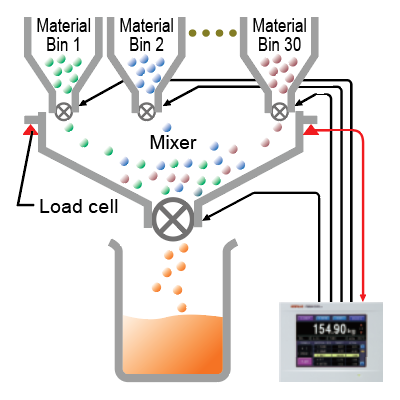

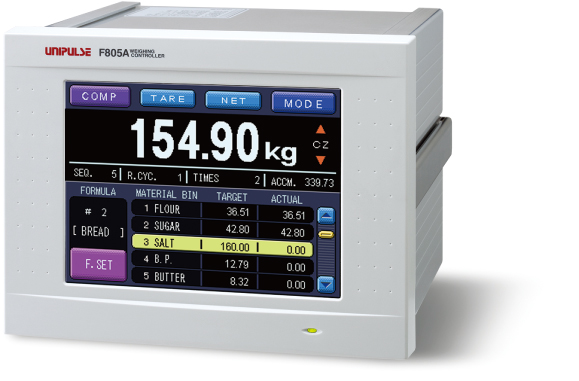

A weighing indicator developed for formula batch weighing.
A maximum of 200 types of formula and 100 types of raw materials can be pre-registered by switching over from feeding and discharging to allow automatic weighing.
- Registration of 200 types of formula and 100 types of raw materials
- A maximum of 30 types of raw materials for each formula can be pre-registered
- Process from weighing to discharging of each raw material is automated
- Function of displaying the numbers of raw materials being weighed
- Names for raw materials and formula are displayed in kana or kanji characters
- Timer control function
- Function of refilling when weight is under fixed quantity (Auto / Manual)
- Function of power cut security
- Weighing status message function
Interface
|
Model
|
Interface
|
Remarks
|
|---|---|---|
| SIF | 2-wire type serial interface | Standard |
| SI2 | 2-wire type bi-directional serial interface | Standard |
| 232 | RS-232C communication interface | Standard |
| BCO | BCD parallel data output interface | Option |
| BC2 | BCD parallel data output interface 2 | Standard |
| BCI | BCD parallel data intput interface | Option |
| DAC | D/A converter interface | Option |
| 485 | RS-485 communication interface | Option |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.

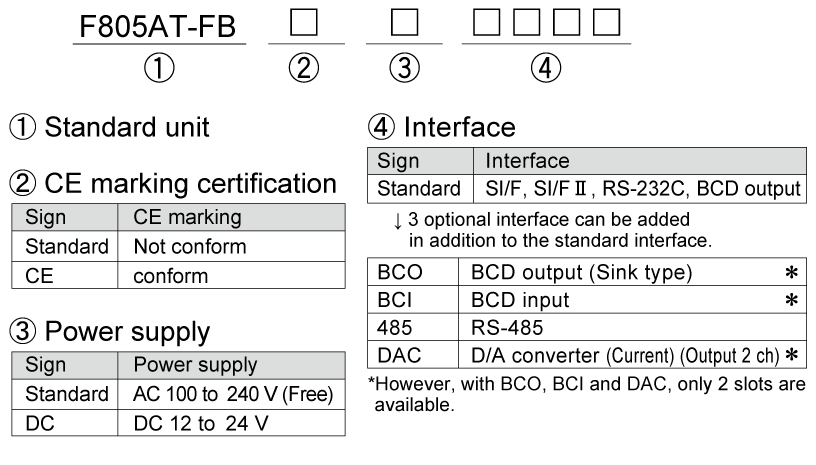

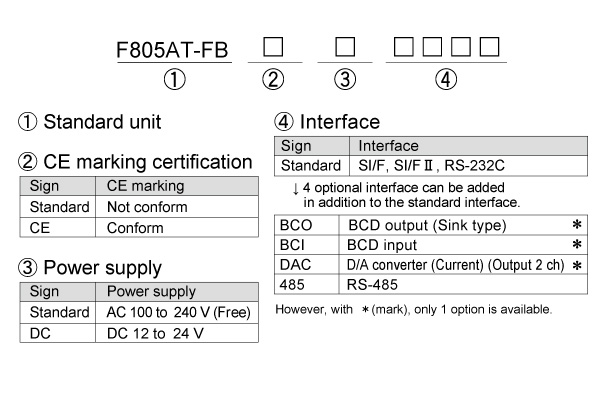

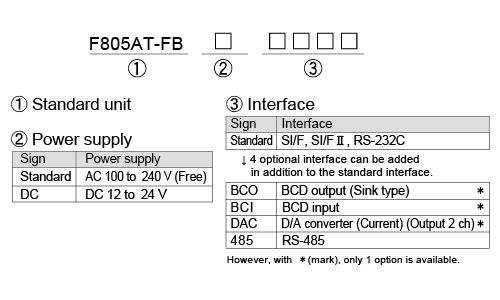

Structure of product code
Download
|
Product catalogue(PDF)
|
⇒Download Page | |
|---|---|---|
|
Operation manual(PDF)
|
||
|
External dimension
|
DXF
（ZIP） |
|
|
PDF
|
||
|
Support tools
|
||
|
Software
|
||
