Product outline
EtherNet/IP is a registered trademark of ODVA.

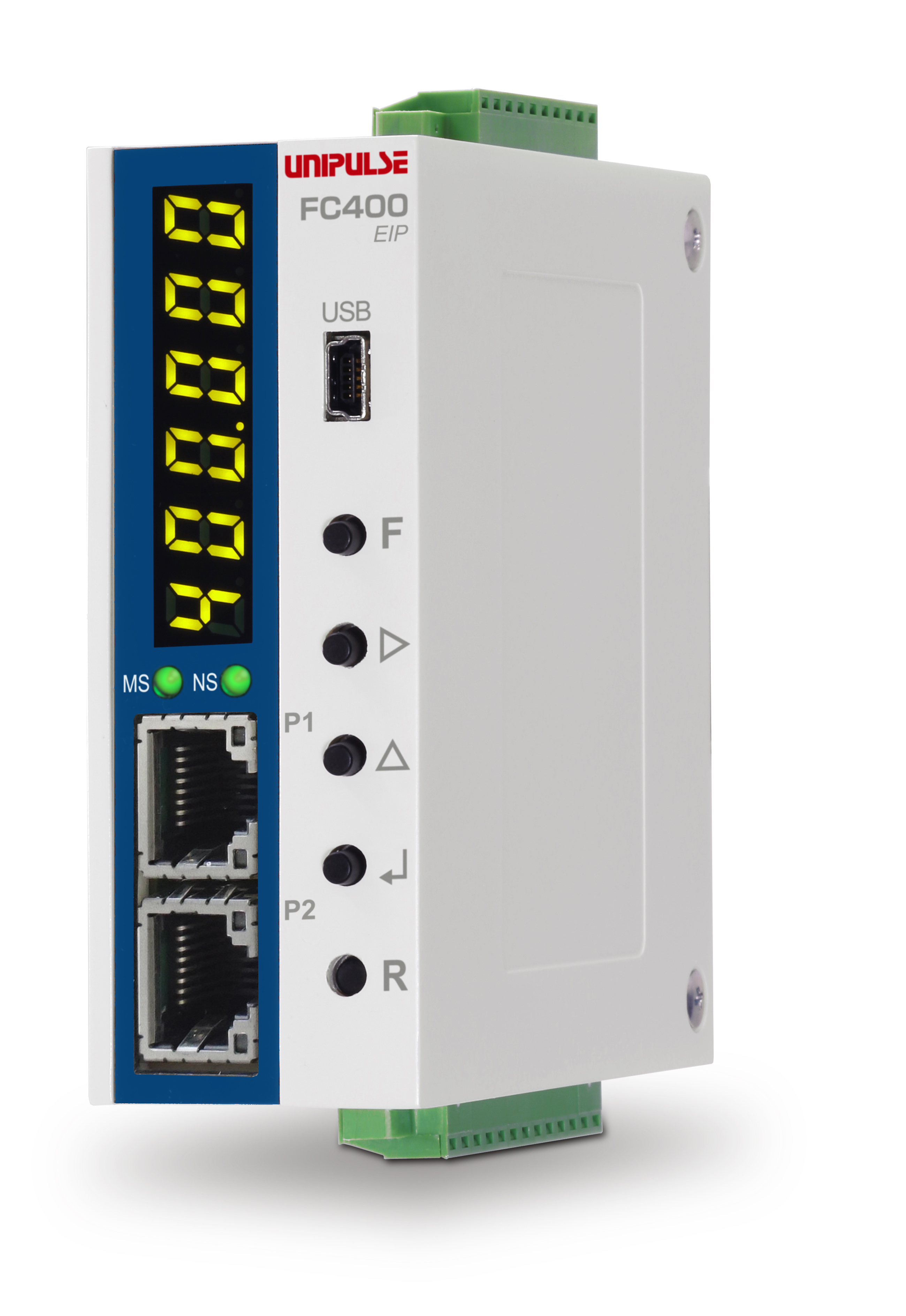

FC400-EIP is a compact type indicator equipped with EtherNet/IP & USB as standard features.

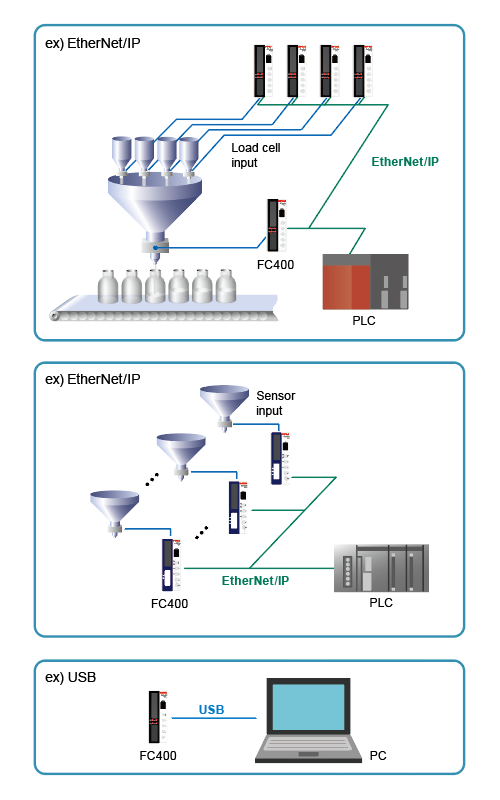

Matches perfectly with every weighing applications such as hopper scale, packer scale, weighing monitor, etc.It has displayable graph in the pc software, and setup can be done easily.
High sampling rate & resolution
High-Speed A/D conversion and powerful digital processing capability of 1200 times/sec..
High display resolution of 1/100000 (max).

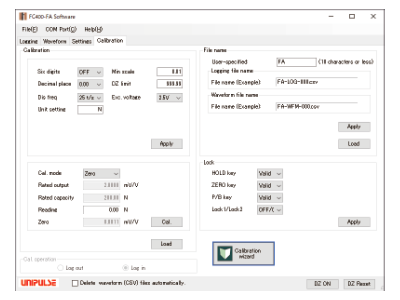

Application software for USB interface
With communication through USB interface, logging, graph, display, setting parameters, and calibration can be done.

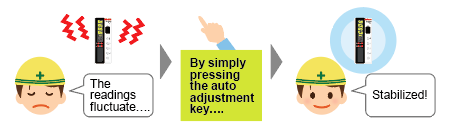

High performance filter & Auto filter adjustment
With combination of low pass filter (0.1 to 300 Hz) which corresponds to various vibration and moving average filter (OFF, 2 to 512) that is effective for periodic vibration, automatic searching for optimal value with accuracy and stability can be achieved.
(You can manually adjust settings too).
Lightweight and compact body to fit into limited space in a control panel
Light weight & compact body for 35 mm DIN rail mount.
Dimensions : 34(W) × 88(H) × 91(D) mm (Not including projections)
Weight : Approx. 230 g
Various interfaces
Load cell signal level display (-2.5 mV/V to 5.1 mV/V)
The output signal level of load cell can be displayed in mV/V for monitor purpose.
Malfunction indicator or faulty sensor can be differentiated easily.
6 digit display
24 bit A/D convertor enables 6 digit display.
Equivalent input calibration
Theoretical calibration can be performed easily by registering the capacity and rated output of load cells.

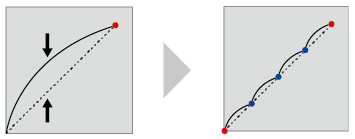

Multipoint calibration (linearization)
Three additional points can be defined in the middle between zero and span for better linearity.
Even though the scale has poor linearity, it can be corrected to be a highly accurate scale.
Specifications
Analog section｜Display section｜External signal｜Interface｜General specifications｜Attachments
| Analog section | |
| Excitation voltage | DC 5 V±5% Output current:within 90 mA DC 2.5 V±5% Output current:within 45 mA (depending on settings) Ratiometric method (Up to 6 350 Ω load cells can be connected in parallel) |
|---|---|
| Signal input range | -2.5 to 5.1 mV/V |
| Zero adjustment range | Automatic adjustment by digital processing -0.5 to 2.0 mV/V |
| Span adjustment range | Automatic adjustment by digital processing 0.01 to 3.0 mV/V |
| Linearization function | Up to three point multi-point calibration is possible |
| Min. input sensitivity | 0.15 μV/count |
| Accuracy | Non-linearity: within 0.01% FS Zero drift: 0.0002% FS/℃ Typ. Gain drift: 1 ppm/℃ Typ. |
| Filter | Digital low-pass filter: 0.1 to 300 Hz Moving average filter: OFF, 2 to 512 times |
| A/D converter | Speed: 1200 times/sec. Resolution: 24 bit (binary) |
| Display section | |
| Display unit | Character height 8 mm Numerical display by 7-segment green LED |
|---|---|
| Display value | Up to 6 digits |
| Display frequency | Selectable from 3, 6, 13 or 25 times/sec. |
| Status display | MS, NS |
| External signal | |
| Output signal (5) |
Transistor’s open collector output Vceo = 30 V, Ic = 50 mA |
|---|---|
| Input signal (3) |
Selectable/configurable Input is ON when shorted to COM terminal by contact (relay switch, etc.) or non contact (transistor, open collector, etc.). * DC 24 V external power supply is required. |
| Interface | |
| USB | USB interface |
|---|---|
| EIP | EtherNet/IP interface |
| General specifications | |
| Power supply voltage | DC 24 V (±15%) |
|---|---|
| Power consumption | 4 W typ. |
| Operating conditions | Operating temperature range: -10℃ to +50℃, Storage temperature range: -20℃ to +85℃ Humidity: 85% RH or less (non-condensing) |
| Dimensions | 34(W) × 88(H) × 91(D) mm (Not including projections) |
| Weight | Approx. 230 g |
| CE marking certification | EMC Directives EN61326-1 |
| Attachments | |
| Jumper wire | 2 |
|---|---|
| Mini driver | 1 |
| Various I/O connector | 2 |
| Quick manual | 2 |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
