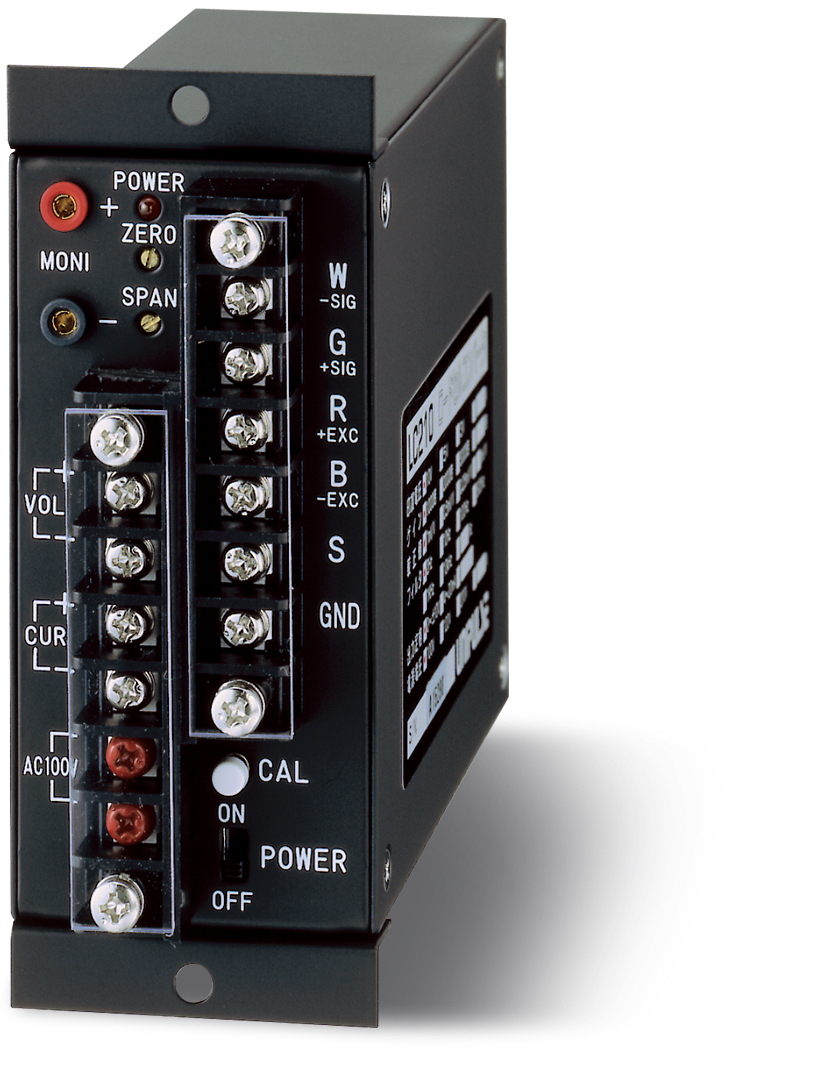

Product outline

These are basic load cell converters equipped with only required and substantial functions that are carefully selected. All the functions required for instrumentation such as the calibration function, bridge excitation power supply and low-pass filter are incorporated into the body.

Specifications

Excitation voltage DC 10 V±5%, Output current: within 30 mA
Zero adjustment range ±0.25 mV/V
20 turn trimmer potentiometer
Expandable by external resistance connection if the above range is exceeded.
Gain adjustment range 1 mV/V to 5 mV/V (gain: 1000 time)
Maximum gain allows 1 mV/V input to be 10 V output.
20 turn trimmer potentiometer
Accuracy Non-linearity: within 0.02% FS
Zero drift: within 0.01%/°C RTI (at 1 mV/V input)
Gain drift: within 0.01%/°C
Output signal Voltage output: 0 to ±10 V, Load resistance: 1 kΩ or more, Output resistance: 0.1 Ω or less
Low-pass filter Low-pass filter (-6 dB/oct.)
2 Hz/-3 dB
Calibration value 1 mV/V ±0.2%
Power supply voltage AC 100 V±10%, 50/60 Hz
Power consumption Approx. 5 VA
Operating conditions Working temperature range: -10 to +60°C
Humidity: 85% RH or less (non-condensing)
Dimensions 44(W) × 110(H) × 110(D) mm (Not including projections)
Weight 600 g
Attachments AC input cord・・・1
Spare fuse (0.5 A)・・・1
Mini-driver・・・1
Crimping terminal・・・11
Operation manual・・・1

Option

Nonstandard specifications are available. Please specify when ordering.

Configurable parameter Standard specification Changeable specification
Excitation voltage 10 V 5 V, 3 V
Gain 1000 times 2000 times, 3000 times
Filter 2 Hz 10 Hz, 100 Hz, 1 kHz, other
Calibration value 1 mV/V 0.5 mV/V, 0.25 mV/V
