Product outline

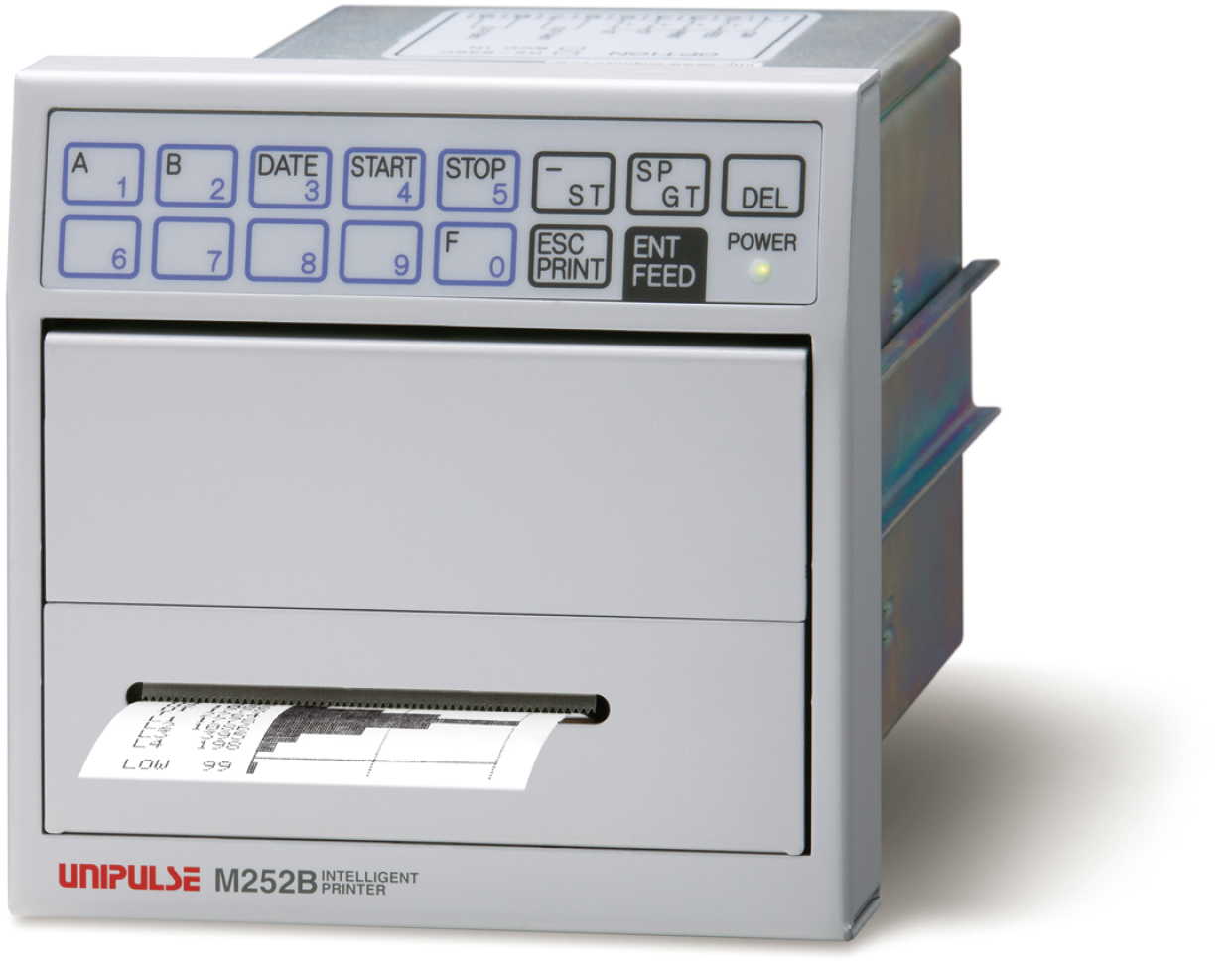

M252B is a printer that can be connected to Unipulse load cell indicators and digital indicators via SI/F (2-wire type serial interface). In addition, it can print out data of various types of equipment via BCD input or RS-232C interface.
Specifications
Printer section｜Setting section｜Main performance｜Interface｜General specifications｜Attachments
| Printer section | |
| Printing method | 5 x 7 dot impact, 24 digits |
|---|---|
| Printing rate | Approx. 2.5 rows/sec (approx. 60 cps) |
| Printing paper | ･ Roll paper: Width 57.5±0.5 mm, Winding diameter 60 mm, Total length 30 m, No. of printable rows: Approx. 8000 rows/1 roll ･ Roll paper (duplicate): Width 57.5±0.5 mm, Winding diameter 60 mm, Total length 20 m, No. of printable rows approx. 5900 row/1 roll |
| Durability | MCBF 1,000,000 rows or more (roll paper: 200 rolls or more) |
| Setting section | |
| Setting method | Key switches |
|---|---|
| Setting value storage | ･ Setting value: Recorded in NOV-RAM (nonvolatile RAM) ･ Data: SRAM (backup by lithium battery) |
| Main performance | |
| Printing method | ･ Printing by key switches ･ Printing by print command input (PRINT terminal block) ･ Printing by auto print command input (SI/F, RS-232C) ･ Auto printing by cycle setting (1 to 9999 sec) (2 to 9999 sec for displacement diagram printing) |
|---|---|
| Printout contents | Date, time, weight value, code(6 digits), counts(1 to 9999 times), sub-total(9 digits), total(9 digits), batch total, target value, range, maximum value, minimum value, average, standard deviation, range(maximum value – minimum value), displacement diagram, histogram |
| Interface (With regard to options, only one function can be installed.) | |
| External input signal | (1)COM, (2)FEED, (3)PRINT, (4)ST, (5)GT |
|---|---|
| Interface |
SI/F: 2-wire type serial interface. This is a serial interface to connect to Unipulse printers and external display units. BCI: BCD parallel data input interface (Optional) 232: RS-232C communication interface (Optional) |
| General specifications | |
| Power supply voltage | AC 100 to 240 V(+10%,-15%) |
|---|---|
| Power consumption | 20 W |
| Inrush current | 30 A, 2 msec: AC 100 V average load condition (cold start at room temperature) 60 A, 2 msec: AC 200 V average load condition (cold start at room temperature) |
| Operating conditions | Working temperature range 0°C to +40°C; Storage temperature range -20 to +70°C Humidity: 85% RH or less (non-condensing) |
| Dimensions | 110(W) × 110(H) × 168(D) mm (Not including projections) |
| Panel cutout dimensions | 92(W) × 92(H) mm |
| Weight | Approx. 1.8 kg |
| Attachments | |
| Ink ribbon (1 mounted on main unit) | 2 |
|---|---|
| Roll paper | 1 |
| AC input cord | 1 |
| Mini-driver | 1 |
| Roll paper spindle | 1 |
| Operation manual | 1 |
| BCD input connector (when BCD input option is installed) | 1 |
Option
| Model | |
| BCI | BCD parallel data input interface |
|---|---|
| 232 | RS-232C communication interface |
Optional accessories
| Model | |
| PP350/10 | Roll paper: 10 pcs |
|---|---|
| PP350-2P/10 | Roll paper (duplicate): 10 pcs |
| PR350/10 | Ink ribbon: 10 pcs |
| PC252B | Roll paper spindle |
| CAAC2P-B3 | AC input cord 3 m |
| CAAC3P-CEE7/7-B2 | AC input cord (Voltage resistance: 250 V) 2 m |
| CN34 | D-Sub 9p connector for RS-232C (inch thread) |
