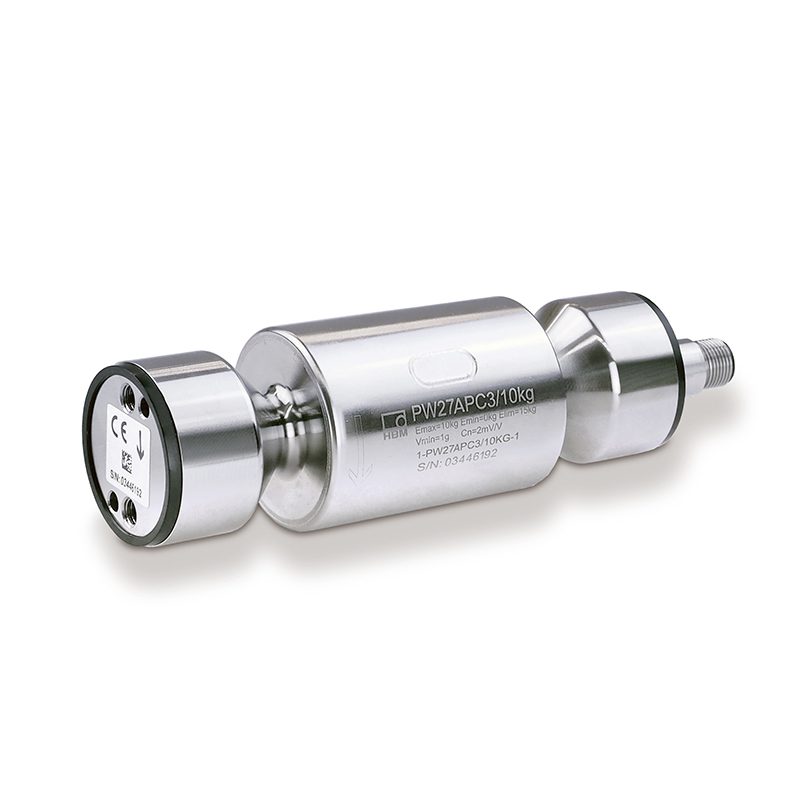

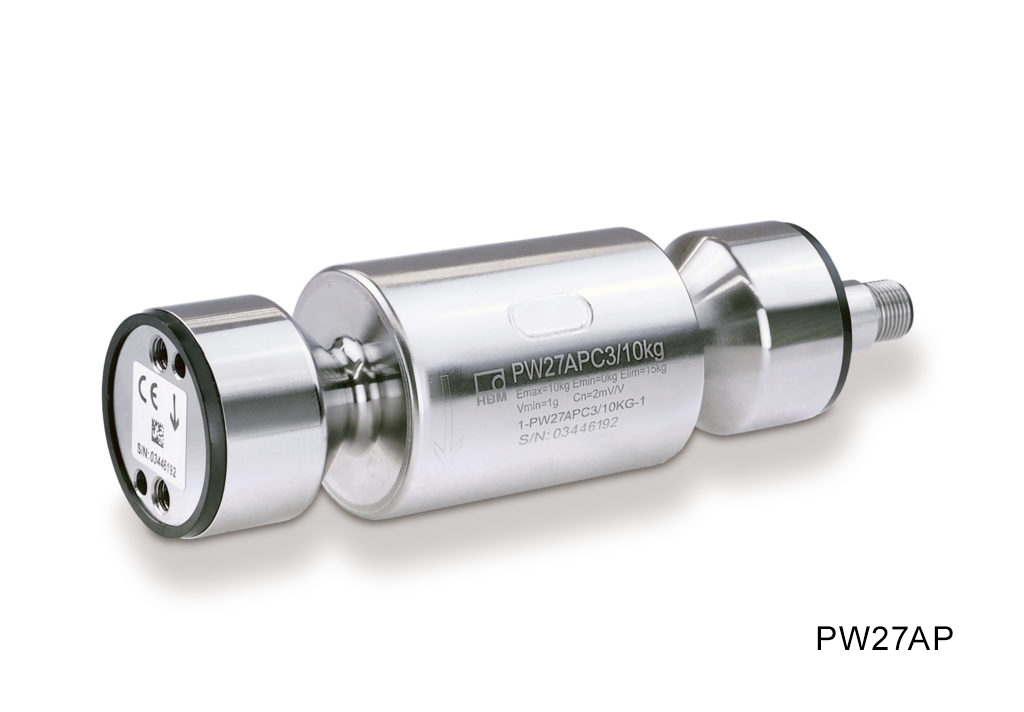

Product outline
Stainless steel single point load cell.
Completely waterproof, all stainless steel-made & hermatically sealed structure
Hygienic load cell designed for food production!
Built-in safe overload prevention mechanism!
- Capacity 10 kg/ 20 kg
- Construction material: Stainless steel
- Completely waterproof, all stainless steel-made & hermatically sealed structure
- Hygienic load cell designed for food production
- Suitable for small weight measurement
- Connector specs for easy exchange (cable sold separately)
Specifications
| Model | PW27AP-10KG | PW27AP-20KG |
|---|---|---|
| Rated capacity | 10 kg | 20 kg |
| Rated output | 2.0±0.2 mV/V | |
| Limit load at 20 mm eccentricity |
1000% R.C. | |
| Service load at max. 120 mm eccentricity |
150% R.C. | |
| Maximum safe side overload |
200% R.C. | |
| Zero balance | 0±0.1 mV/V | |
| Non-linearity | 0.0166% R.O. typ. | |
| Hysteresis | 0.0166% R.O. typ. | |
| Compensated temperature range | -10 to +40℃ | |
| Safe temperature range | -10 to +70℃ | |
| Temperature effect on zero |
0.0140% R.O./10℃ | |
| Temperature effect on span |
0.0175% R.O./10℃(＋20 to +40℃), 0.0117% R.O./10℃(-10 to +20℃) |
|
| Input resistance | 300 to 500 Ω | |
| Output resistance | 300 to 500 Ω | |
| Recommended excitation voltage |
1 to 12 V | |
| Insulation resistance | 1000 MΩ or more | |
| Degrees of protection | IP68, IP69K * | |
| Load cell material | Stainless steel | |
| Deflection at rated | 0.19 mm | 0.18 mm |
| Natural frequency | 210 Hz | 315 Hz |
| Maximum platform size | 400 × 400 mm | |
| Weight | 0.8 kg | |
| Cleaning temperature | Up to 120°C in 10 minutes | |
* IP69K load condition: DIN 40050 part 9 compliant

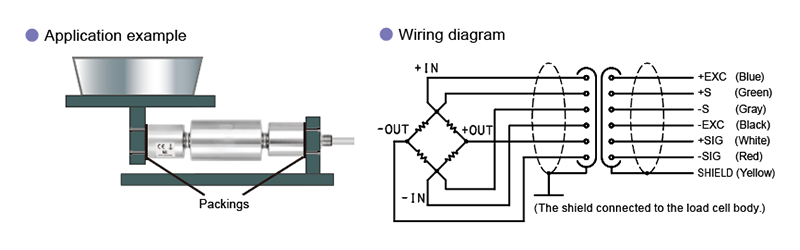

Wiring diagram
Optional accessories

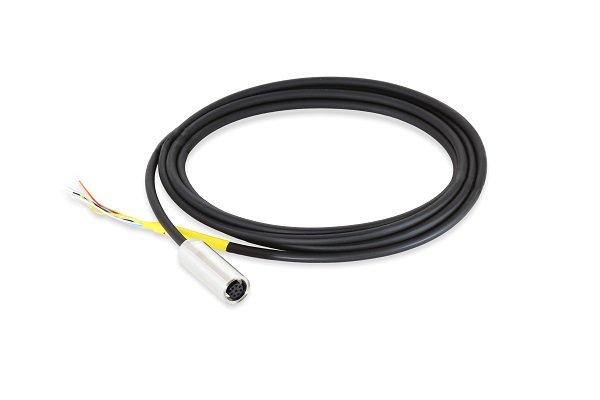

KAB177-3:φ5.4 6 conductor hygiene design cable 3 m Cable end: 7 wires

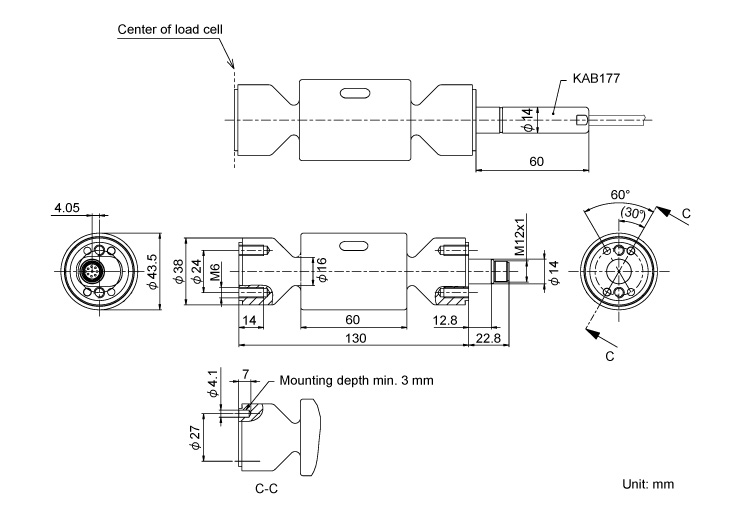

External dimension
Download
|
Product catalogue(PDF)
|
⇒Download Page | |
|---|---|---|
|
Operation manual(PDF)
|
||
|
External dimension
|
DXF
（ZIP） |
|
|
