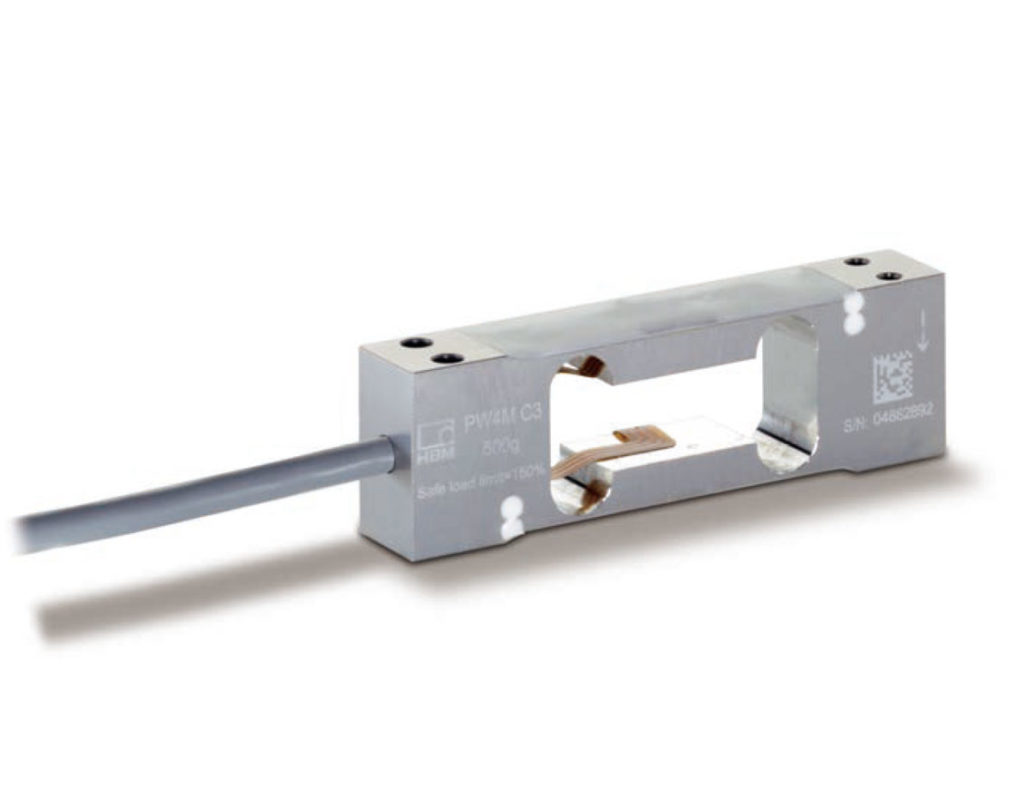

Product outline

Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.

● Capacity 300 g/ 500 g/ 1 kg/ 2 kg/ 3 kg
● Constructed of Aluminum, Lightweight
● Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.

Specifications

Model PW4M-300G,
PW4M-500G		 PW4M-1KG, PW4M-2KG,
PW4M-3KG
Rated capacity 300 g, 500 g 1 kg, 2 kg, 3 kg
Rated output 1±0.1 mV/V 2±0.2 mV/V
Safe overload 150% R.C.
Maximum safe side
overload		 200% R.C.
Zero balance 0±0.1 mV/V
Non-linearity 0.0150% R.O. typ.
Hysteresis 0.0150% R.O. typ.
Compensated temperature range -10 to +40℃
Safe temperature range -10 to +50℃
Temperature effect on zero 0.0233% R.O./10℃(300 g), 0.0280% R.O./10℃(500 g), 0.020% R.O./10℃(1/2/3 kg)
Temperature effect on span 0.0175% R.O./10℃(+20 to +40℃), 0.0117% R.O./10℃(−10 to +20℃)
Input resistance 380±38 Ω
Output resistance 380±38 Ω
Recommended excitation
voltage		 1 to 15 V
Insulation resistance 2000 MΩ or more
Degrees of protection IP65
Cable φ4 4-conductor shield cable 0.4 m
Cable end: 5 wires

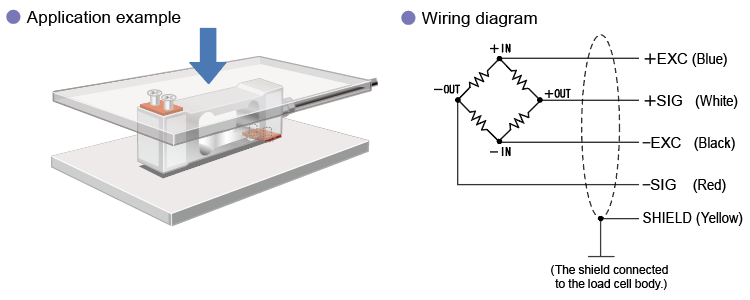

Cable color code ＋EXC：Blue
＋SIG：White
－EXC：Black
－SIG：Red
SHIELD：Yelow
Load cell material Aluminum
Deflection at rated 0.5 mm or less
Natural frequency 300G：225 Hz
500G：294 Hz
1KG：294 Hz
2KG：397 Hz
3KG：493 Hz
Maximum off center
distance		 100 mm
Maximum platform size 200 × 200 mm
Weight 0.05 kg

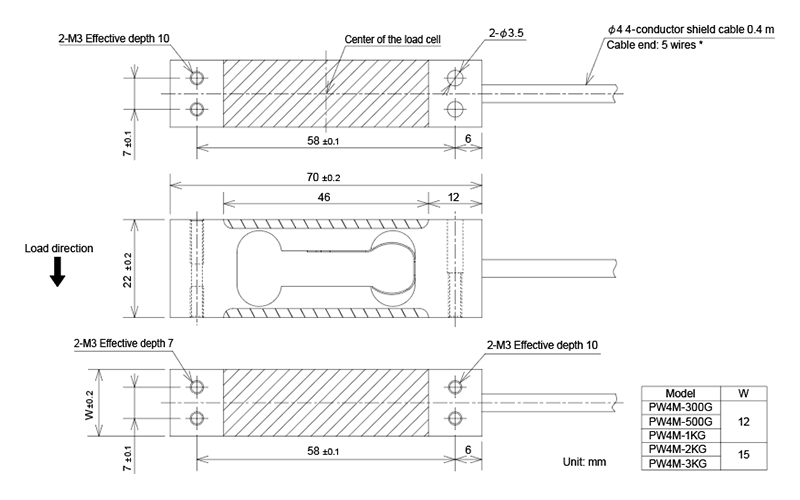

External dimension
