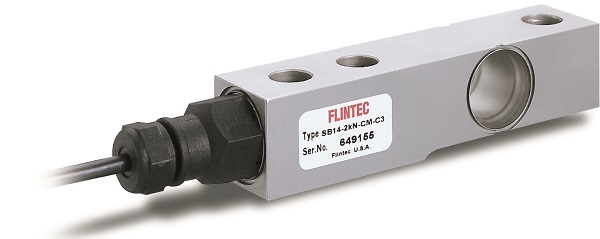

Product outline
Most appropriate for load control of platform scales, hopper scales, etc.
● Capacity 2.5 kN/ 5 kN/ 12 kN/ 25 kN
● High accuracy, constructed of stainless steel, hermetically sealed
● High input impedance: 1100 Ω
● Applications: Platform scales, hopper scales, etc.
● High accuracy, constructed of stainless steel, hermetically sealed
● High input impedance: 1100 Ω
● Applications: Platform scales, hopper scales, etc.
Specifications
Model | SB14-2.5KN, SB14-5KN, SB14-12KN, SB14-25KN |
---|---|
Rated capacity | 2.5 kN, 5 kN, 12 kN, 25 kN |
Rated output | 2 mV/V±0.1% |
Safe overload | 200% R.C. |
Maximum safe side overload |
100% R.C. |
Zero balance | ±5% R.O. |
Combined error | 0.0200% R.O. |
Non-linearity | 0.0166% R.O.typ. |
Hysteresis | 0.0166% R.O.typ. |
Creep | 0.0166% R.O./30 min |
Compensated temperature range |
-10 to +40℃ |
Safe temperature range | -40 to +80℃ |
Temperature effect on zero |
0.0122% R.O./10℃ |
Temperature effect on span |
0.0100% R.O./10℃ |
Input resistance | 1100±50 Ω |
Output resistance | 1000±2 Ω |
Recommended excitation voltage |
5 to 15 V(AC, DC) |
Insulation resistance | 5000 MΩ or more |
Degrees of protection | IP68 |
Cable | 4-conductor color shield cable. Length 3 m. |
Cable color code | +EXC: Green +SIG: White -EXC: Black -SIG: Red SHIELD: Yellow |
Load cell material | Stainless steel |
Weight | 1.2 kg |
External dimension
