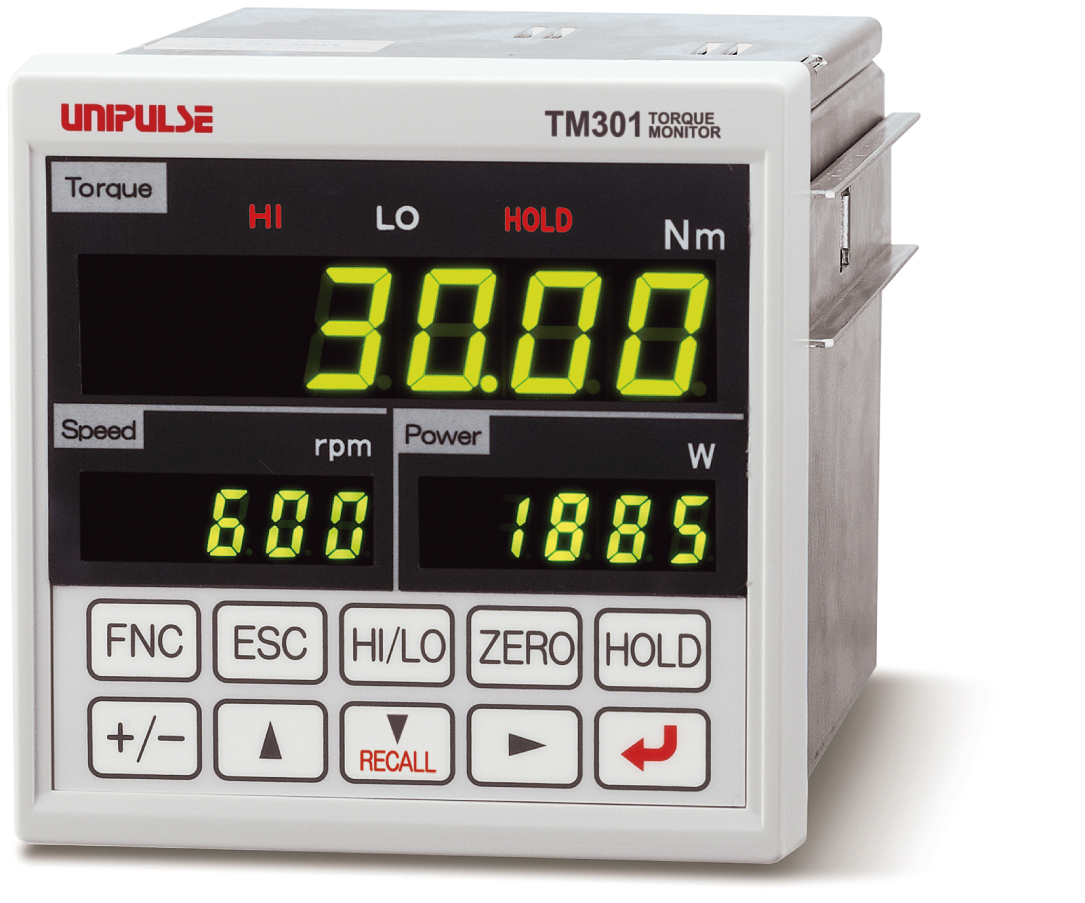

Product outline

Torque, rotation speed and power are displayed
■ Torque monitor specialized for UTMⅡ/UTMV.
■ Torque, rotation speed and power are displayed simultaneously.
■ Hold function (Sample, Peak, Bottom, P-P, Average)
■ Upper/lower comparators function (ALM HI, HI, OK, LO, ALM LO)
■ Data storage function
■ Easy connection to UTMⅡ/UTMV with one cable.
■ The unit supplies electric power to UTMⅡ/UTMV.
■ Variation of torque, rpm, and power can be monitored and saved on PC. (with USB interface option only)

Specifications

Torque sensor input｜Drive power supply for UTMⅡ/UTMV｜Pulse input for rotation speed｜Display section｜Setting section｜External I/O section｜General specifications｜Attachments

Torque sensor input(voltage input)
Input resistance	1 MΩ or more
Signal input range	±5 V
Accuracy	Non-linearity : Within 0.02%/FS±1 digit Zero drift : Within 0.2 mV/℃ RTI Gain drift : Within 0.01%/℃
A/D converter	･ Speed : 300 times/sec. ･ Resolution : 24 bit (binary) Effective Resolution : 1/30000 with respect to 5 V
Analog filter	Low-pass filter (-6 dB/oct.) Selectable from 3 Hz, 30 Hz, 300 Hz, and 1 kHz.
Voltage monitor output	Linked to the output voltage of the torque meter

Drive power supply for UTMⅡ/UTMV
Power supply voltag	DC 24 V *One UTMⅡ/UTMV at the maximum

Pulse input for rotation speed (open collector input)
Maximum input frequency	Conforming to the maximum rotation speed of UTMⅡ/UTMV
Minimum input frequency	Selectable from 15, 10, 5, 3, or 2 rpm (when pulse rate is 4 ppr) Selectable from 60, 40, 20, 12, or 8 rpm (when pulse rate is 1 ppr)
Minimum detection pulse width	50 μs
Circuit configuration	No-voltage contact input (minus common) Open collector connectable (Ic ＝ Approx. 10 mA)

Display section
Display	Main display : Character height 15 mm　Numerical display by 7-segment green LED (5-digit+sign) Sub display : Character height 8 mm　Numerical display by 7-segment green LED (5-digit)
Indicated value	Main display : 5-digit -99999 to +99999 Signs : Minus sign on most significant digit Sub display : 5-digit -19999 to +99999 Signs : Minus sign on most significant digit (No minus sign for rotational speed)
Decimal point	0, 0.0, 0.00, 0.000 (Only a torque and a power. Rotation speed is nothing)
Display frequency	Selectable from 3, 6, 13, and 25 times/sec.
Status display	HI / LO / HOLD

Setting section
Setting item	HI/LO limit : HI limit / LO limit / Alarm HI limit / Alarm LO limit Comparison/hold : Comparison function select / Near zero / Hysteresis / Hold function select / Detection time / Average sample number / Hold start level Operation 1 : Motion detect (time) / Motion detect (range) / Zero tracking (time) / Zero tracking (range) / SI/F function select / Display frequency / Display ON/OFF Operation 2 : Digital filter (torque) / Analog filter (torque) / Dead band / Digital filter (rotation speed) Calibration : Calibration function select 1 (torque) / Zero calibration / Equivalent input calibration / Actual load calibration / Digital offset / Digital Zero limit / Calibration function select 2 (rotation speed/power) Protect/Initializ : Setting protect / Key protect / Initialize / Password / Record data clear
Hold	Sample, Peak, Bottom, P-P, Average Hold section setting (All section・External signal・External signal+Time・Level+Time)

Setting section

Setting item

HI/LO limit :
HI limit / LO limit / Alarm HI limit / Alarm LO limit

Comparison/hold :
Comparison function select / Near zero / Hysteresis / Hold function select / Detection time / Average sample number / Hold start level

Operation 1 :
Motion detect (time) / Motion detect (range) / Zero tracking (time) / Zero tracking (range) / SI/F function select / Display frequency / Display ON/OFF

Operation 2 :
Digital filter (torque) / Analog filter (torque) / Dead band / Digital filter (rotation speed)

Calibration :
Calibration function select 1 (torque) / Zero calibration / Equivalent input calibration / Actual load calibration / Digital offset / Digital Zero limit / Calibration function select 2 (rotation speed/power)

Protect/Initializ :
Setting protect / Key protect / Initialize / Password / Record data clear

Hold

Sample, Peak, Bottom, P-P, Average
Hold section setting (All section・External signal・External signal+Time・Level+Time)

External I/O section
External input (4)	Hold control / Hold reset / Digital Zero / Record data clear Dry contact input circuit (minus common type), Ic ＝ 10 mA or less
External output (12)	Torque HI/LO limit comparison (alarm HI・HI・OK・LO・alarm LO) / Rotation speed HI/LO limit comparison (alarm HI・HI・OK・LO・alarm LO) / Hold complete / RUN Open collector output circuit (sink type), Vceo ＝ 30 V (max) Ic ＝ 30 mA (max)
Interface	SIF : 2-wire serial interface BCO : BCD parallel data output interface (Option) D3V : D/A converter voltage output(3 ch) (Option) DAV : D/A converter voltage output (Option) DAI : D/A converter current output (Option) 232 : RS-232C communication interface (Option) USB : USB interface (Option) * Only one option can be installed.

General specifications
Power supply voltage	AC 100 V to 240 V(+10%-15%)(free power source) 50/60 Hz
Power consumption	7 W typ.
Operating conditions	Operation temperature : -10 to +40℃　Storage temperature : -40 to +80℃ Humidity : 85% RH or less(non-condensing)
Dimensions	96(W) × 96(H) × 138(D) mm (Not including projections)
Panel cutout size	92 × 92(+1-0) mm
Weight	Approx. 1.0 kg

Attachments
Operation manual	1
Cable for UTMⅡ/UTMV connection 2 m	1
External input/output connector	1
Unit seal	1
AC input cord 3 m (with solderless terminal)*	1
Connector for BCD output (with BCD output option)	1
Operating tool (with D/A converter(3 ch) option)	1
Mini screwdriver (with D/A converter option)	1

*The attached AC input cord is intended for 100 V AC power in Japan.

Option (Only one option can be installed.)

Model	Description
BCO	BCD parallel data output interface
D3V	D/A converter voltage output(3 ch)
DAV	D/A converter voltage output
DAI	D/A converter current output
232	RS-232C communication interface
USB	USB interface

Optional accessories

Model	Description
CA372-I/O	Cable with FCN connector at one-end 3 m
CA81-USB	miniUSB-computer USB cable 1.8 m
CAAC2P-B3	AC Supply cord 3 m
CAAC3P-CEE7/7-B2	AC Supply cord (Voltage resistance:250 V)2 m
CAAC3P-B3	AC Supply cord 3 m
CA325AC3P-CEE7/7-B2	AC Supply cord (Voltage resistance:250 V)2 m
CA325AC3P-B3	AC Supply cord 3 m
CATM21-M	Cable for UTMⅡ/UTMV connection 2 m
CATM51-M	Cable for UTMⅡ/UTMV connection 5 m
CN34	D-Sub9p connector for RS-232C
CN50	FCN series I/O connector (with cover)
CN51	BCD output connector
CN55	FCN series I/O connector (with diagonal cover)
CN73	D/A converter(3 ch) connector
CN90	Waterproof plastic connector for UTMⅡ/UTMV connection
DTC2-PSL	Case for TM301
GMP96x96	Rubber packing

Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.

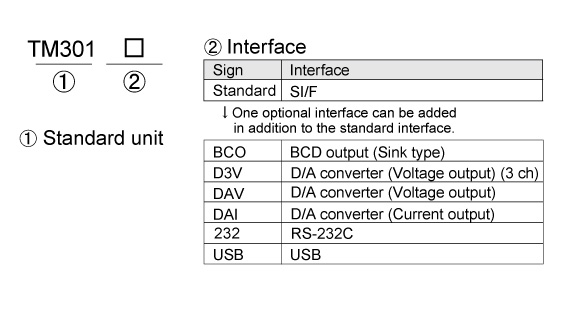

Structure of product code
