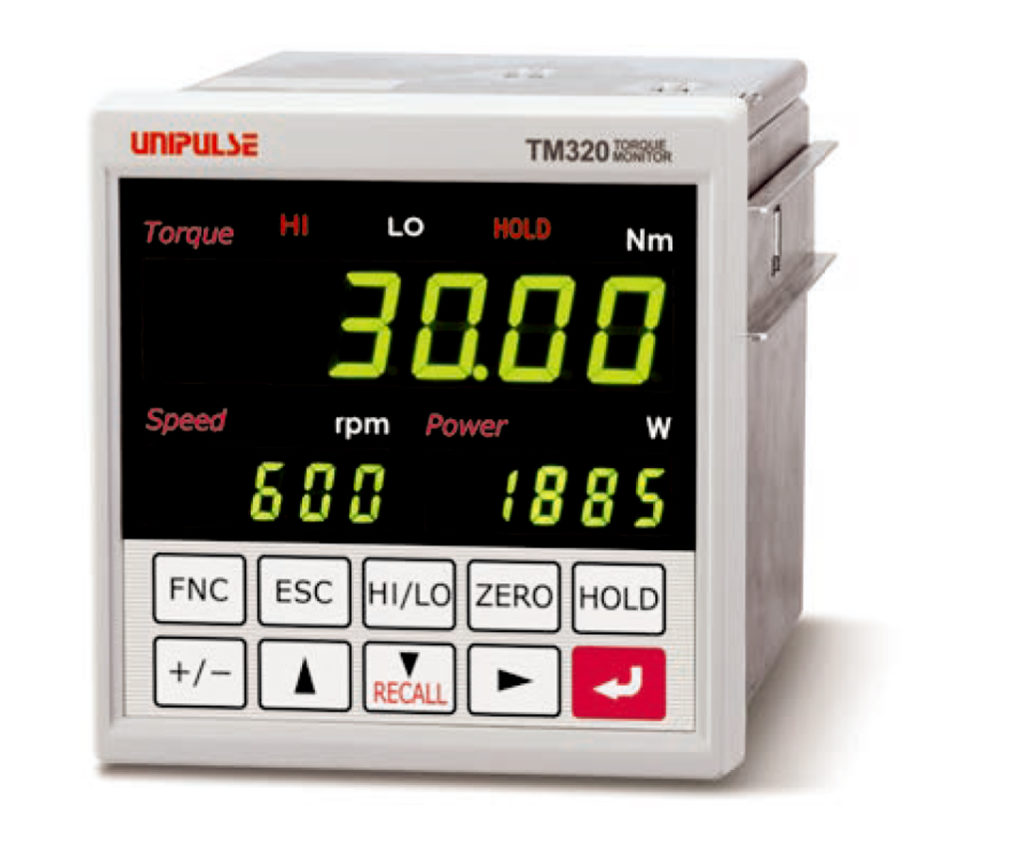

Product outline

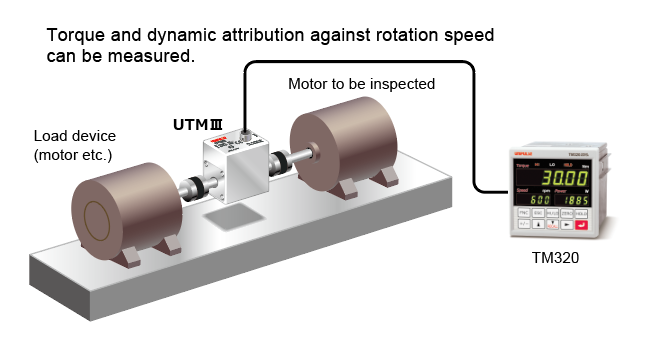

■ Equipped with display and comparison function for connection data(*1) of UTMⅢ
■ Torque, rotation speed and power(*2) are displayed simultaneously.
■ Hold function (Sample, Peak, Bottom, P-P, Average)
■ Upper/lower comparators function (ALM HI, HI, OK, LO, ALM LO)
■ Equipped with data memory function (Torque, rotation speed, power, the latest 30 items are recorded)
■ The unit supplies electric power to UTMⅢ/UTMⅡ/UTMV.
*1 RS-485 interface(torque, rotation speed)
*2 Power(W) = 2πxTorque(Nm)xRotation speed(rpm)/60
*Please consult us when connecting to UTFⅡ.

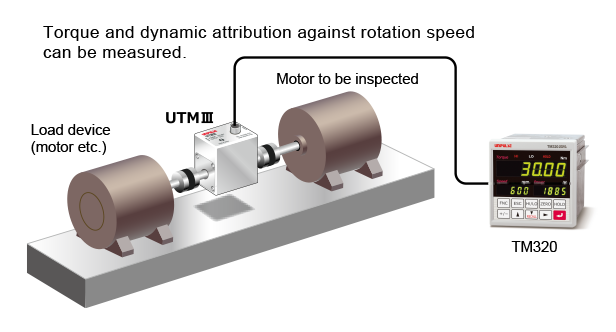

■ Torque, rotation speed and power(*2) are displayed simultaneously.
■ Hold function (Sample, Peak, Bottom, P-P, Average)
■ Upper/lower comparators function (ALM HI, HI, OK, LO, ALM LO)
■ Equipped with data memory function (Torque, rotation speed, power, the latest 30 items are recorded)
■ The unit supplies electric power to UTMⅢ/UTMⅡ/UTMV.
*1 RS-485 interface(torque, rotation speed)
*2 Power(W) = 2πxTorque(Nm)xRotation speed(rpm)/60
*Please consult us when connecting to UTFⅡ.
Specifications
Sensor input for torque｜Pulse input for rotation speed｜Display section｜External I/O section｜General specifications｜Attachments
| Sensor input for torque (voltage input) | |
| Input resistance | 1 MΩ |
|---|---|
| Signal input range | -10 to +10 V (UTMⅢ) Input resistance 1 MΩ or more -5 to +5 V (UTMⅡ/UTMV) Input resistance 1 MΩ or more |
| Accuracy | Non-linearity : Within 0.02%/FS±1 digit Zero drift : Within 0.2 mV/℃ RTI Gain drift : Within 0.01%/℃ |
| A/D converter | ･ Speed…16000 times/sec. ･ Resolution…24 bit (binary) Approx. 1/30000 with respect to 10 V |
| Digital low pass filter | PASS, 3 Hz to 1 kHz. |
| Voltage monitor output | Linked to the output voltage of the torque meter |
| Pulse input for rotation speed (Open collector) | |
| Maximum input frequency | Conforming to the maximum rotation speed of UTMⅢ/UTMⅡ/UTMV |
|---|---|
| Minimum input frequency | Selectable from 15, 10, 5, 3, or 2 rpm (when pulse rate is 4 ppr) Selectable from 60, 40, 20, 12, or 8 rpm (when pulse rate is 1 ppr) |
| Minimum detection pulse width | 50 μs |
| Circuit configuration | No-voltage contact input (minus common) Open collector connectable (Ic ＝ Approx. 10 mA) |
| Display section | |
| Display | Main display : Character height 15 mm Numerical display by 7-segment green LED (5-digit+sign) Sub display : Character height 8 mm Numerical display by 7-segment green LED (5-digit) |
|---|---|
| Indicated value | Main display : 5-digit -99999 to +99999 Signs : Minus sign on most significant digit Sub display : 5-digit -19999 to +99999 Signs : Minus sign on most significant digit (No minus sign for rotational speed) |
| Decimal point | 0, 0.0, 0.00, 0.000 (Only a torque and a power. Rotation speed is nothing) |
| Display frequency | Selectable from 3, 6, 13, and 25 times/sec. |
| Status display | HI / LO / HOLD |
| Hold | Sample, Peak, Bottom, P-P, Average Hold section setting (All section・External signal・External signal+Time・Level+Time) |
| External I/O section | |
| External input (4) |
Hold control / Hold reset / Digital Zero / Record data clear Dry contact input circuit (minus common type), Ic ＝ 10 mA or less |
|---|---|
| External output (13) |
Torque HI/LO limit comparison (alarm HI・HI・OK・LO・alarm LO) / Rotation speed HI/LO limit comparison (alarm HI・HI・OK・LO・alarm LO) / Hold complete / RUN / Timing output/ Absolute value display Open collector output circuit (sink type), Vceo ＝ 30 V (max) Ic ＝ 30 mA (max) |
| Interface |
SIF : 2-wire serial interface BCO : BCD parallel data output interface (Option) D3V : D/A converter voltage output(3ch) (Option) DAV : D/A converter voltage output (Option) DAI : D/A converter current output (Option) 232 : RS-232C communication interface (Option) USB : USB interface (Option) * Only one option can be installed. |
| General specifications | |
| Power supply voltage | DC 24 V±15% |
|---|---|
| Power consumption | 8 W typ. |
| Operating conditions | Operation tenperature : -10 to +50℃ Storage temperature : -40 to +80℃ Humidity : 85% RH or less(non-condensing) |
| Dimensions | 96(W) × 96(H) × 138(D) mm (Not including projections) |
| Weight | Approx. 1.2 kg |
| CE marking certification | EMC directives EN61326-1 |
| Attachments | |
| Operation manual | 1 |
|---|---|
| External input/output connector | 1 |
| Unit seal | 1 |
| Connector for BCD output (with BCD output option) | 1 |
| Operating tool (with D/A converter(3 ch) option) | 1 |
| Mini screwdriver (with D/A converter option) | 1 |
| Ferrite core | 1 |
Optional accessories
| Model | Description |
| CA372-I/O | Cable with FCN connector at one-end 3 m |
|---|---|
| CA81-USB | miniUSB-computer USB cable 1.8 m |
| CATM321-M | Cable for UTMⅢ connection 2 m |
| CATM351-M | Cable for UTMⅢ connection 5 m |
| CATM21-M | Cable for UTMⅡ/UTMV connection 2 m |
| CATM51-M | Cable for UTMⅡ/UTMV connection 5 m |
| CN34 | D-Sub9p connector for RS-232C |
| CN50 | FCN series I/O connector (with cover) |
| CN51 | BCD output connector |
| CN55 | FCN series I/O connector (with diagonal cover) |
| CN73 | D/A converter(3ch) connector |
| CN90 | Waterproof plastic connector for UTMⅡ/UTMV |
| CN96 | UTMⅢ connector |
| DTC2A | Case for TM320(with AC power supply &ferrite core) |
| E04SR211132 | Ferrite core |
| GMP96x96 | Rubber packing |
| TSU03 | Lightning surge protector (DC) |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.

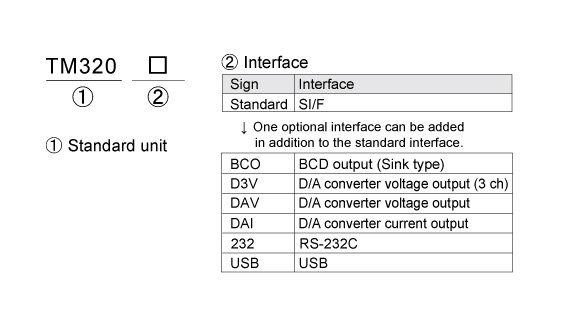

Structure of product code
