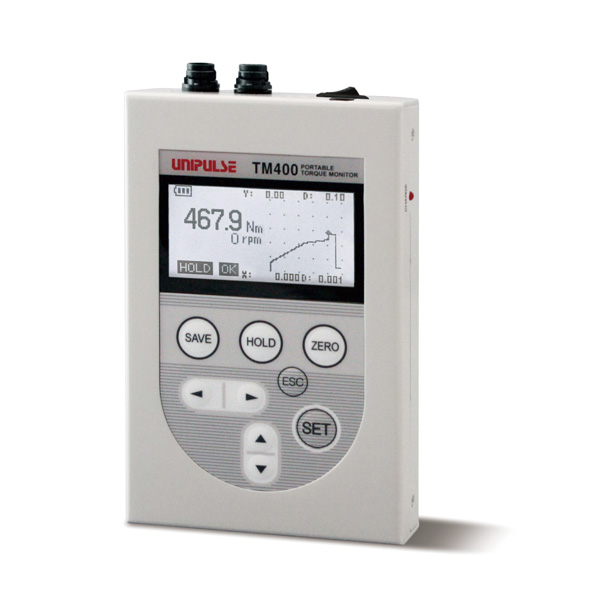

Product outline

UTMⅡ/UTMV can be easily connected to TM400 with the supplied cable. With the built-in battery, it can be operated even without power source. Using with UTMⅡ with rotary encoder option, torque-angle (or displacement) relationship can be monitored. With the compact body and the high sampling speed, it is ideal for field use.

Features

■ Torque monitor for UTMⅡ/UTMV.
■ With the built-in battery, it can be operated even without power source.
■ Ideal for use with UTMⅡ (square shaft) series with the high-speed sampling at 20000 times/sec.
■ Easy connection to UTMⅡ/UTMV with one cable.
■ Operation power can be supplied to the UTMⅡ/UTMV (and also to an optional rotary encoder).
■ Torque & rotation speed and torque-angle curve can be monitored.
■ Data recording with memory function and USB.
■ Various display modes: real-time, graph, recorded data, etc….
■ Upper/lower limit & hold function.

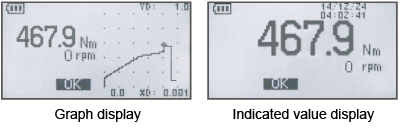

Change the display mode by pressing the ESC button

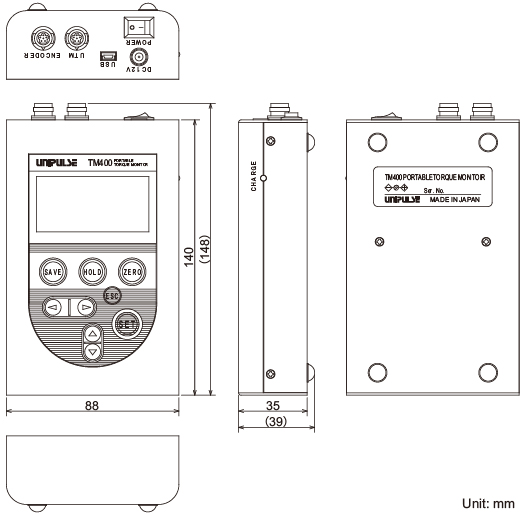

External dimension

Specifications

Torque input｜Input for rotation speed｜Encoder input｜Display section｜Interface｜General specifications｜Attachments

Torque input (voltage input)
Signal input range	-5 to +5 V Input impedance：1 MΩ or more
Accuracy	Non-linearity : within 0.02% FS±1 digit Zero drift : within 0.2 mV/℃ RTI Gain drift : within 0.01%/℃
Analog filter	Low pass filter (-6 dB/oct.) Selectable from 10 Hz, 30 Hz, 100 Hz, 300 Hz, 1 kHz, 3 kHz, 10 kHz, 30 kHz
A/D converter	･ Speed : 20000 times/sec ･ Resolution : 24 bit (binary) Approx. 1/30000 against 5 V

Input for rotation speed (open-collector pulse)
Maximum input frequency	Conforming to the maximum rotation speed of UTMⅡ/UTMV
Minimum input frequency	15 rpm
Minimum detection pulse width	50 μs
Circuit configuration	No-voltage contact input (minus common) Open collector connectable (Ic ＝ Approx. 10 mA)

Encoder input (open-collector pulse)
Maximum input frequency	50 kHz

Display section
Display unit	128×64 dots monochromatic LCD (display area: 57 x 28 mm)
Displayed data	Torque, rotation speed, Angle (numeric) Torque-time or torque-angle/displacement curve (graphic) Status display (HI, LO, OK, and HOLD)

Interface
Interface	USB

General specifications
Power supply	Built-in secondary battery Continuous use time: Approx. 5 hours(at room temperature) AC adopter
Operating conditions	Operation temperature : -10 to +40℃, storage temperature : -20 to +60℃ Humidity : 85% RH or less (non-condensing)
Dimension	88(W) × 140(H) × 35(D) mm (Not including projections)
Weight	Approx. 500 g
CE marking certification	EMC directives EN61326-1 Safety standard EN62311 Please specify requirement for CE marking certified product when making your order.

Attachments
AC adopter	1
Operation manual	1
Cable for UTMⅡ/UTMV connection 2 m	1
Cable for UTMⅡ rotary encoder connection 2 m	1

Optional accessories

Model	Description
CA81-USB	miniUSB-computer USB cable 1.8 m
CATM21-M	cable for connecting UTMⅡ/UTMV 2 m
CATM51-M	cable for connecting UTMⅡ/UTMV 5 m
CATM(R)21	cable for UTMⅡwith rotary encoder connection (non-connector at one end) 2 m
CATM(R)21-M	cable for connecting UTMⅡrotary encoder 2 m
CATM(R)51-M	cable for connecting UTMⅡrotary encoder 5 m
CN90	Waterproof plastic connector for UTMⅡ/UTMV
CN91	Waterproof plastic connector for UTMⅡ rotary encoder
TM400 AC CABLE EU	AC cable（For EU）

Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
