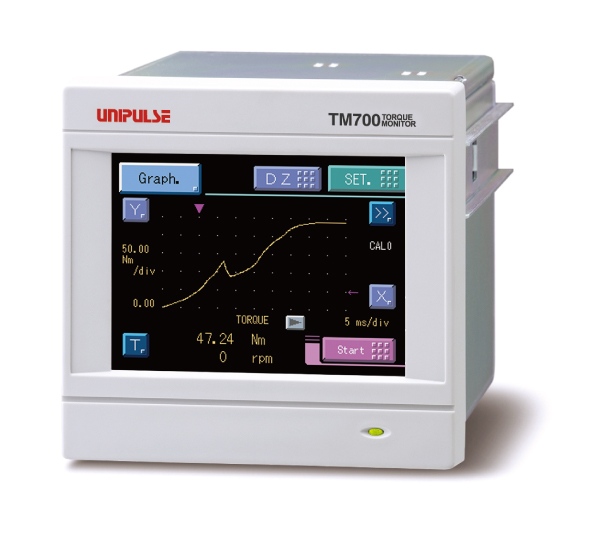

Product outline
UTMⅡ/UTMV series can be easily connected to TM700 with the supplied cable. With the high-speed sampling rate of 20000 times/sec., TM700 can support the high response time of UTMⅡ/UTMV (1 kHz). Fluctuation of torque, rotation speed, and power over a short period of time can be displayed.
Features
- Torque monitor for UTMⅡ/UTMV.
- Monitoring of torque, rotation speed and power curves.
- Enable the cogging torque measurement with UTMⅡ/UTMV.
- Easy connection to UTMⅡ/UTMV with one cable.(Operation power can be supplied to the UTMⅡ/UTMV and to the optional rotary encoder as well)
- Upper/lower limits & hold function.
- Ideal for applications such as nut runners, motor test benches, engine test bench, mixer, wind power generation, etc….

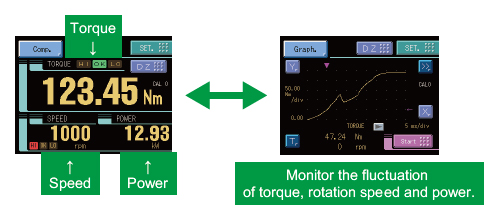

Sample display

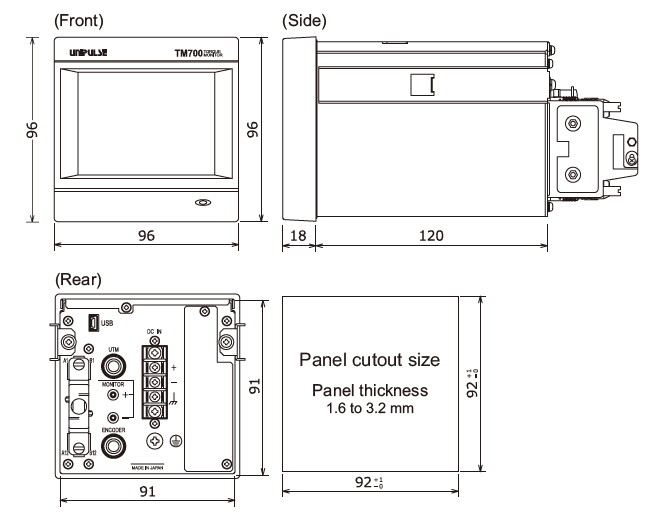

External dimension
Specifications
Torque input｜Input for high-speed rotation｜Input for low-speed rotation｜Display section｜External I/O signal｜Interface｜General specifications｜Attachments
| Torque input (voltage input) | |
| Signal input range | -5 to +5 V Input impedance：1 MΩ or more |
|---|---|
| Accuracy | Non-linearity：within 0.02% FS±1 digit Zero drift： within 0.2 mV/℃ RTI Gain drift ： within 0.01%/℃ |
| Analog filter | Low pass filter (-6 dB/oct.) Selectable from 10 Hz, 30 Hz, 100 Hz, 300 Hz, 1 kHz, 3 kHz, 10 kHz, 30 kHz |
| A/D converter | ･ Speed ：20000 times/sec ･ Resolution：24 bit (binary) Approx. 1/30000 against 5 V |
| Voltage monitor output | Linked to the output voltage of the torque meter |
| Input for high-speed rotation (open-collector pulse) : for standard UTMⅡ/UTMV. |
|
| Maximum input frequency | Conforming to the maximum rotation speed of UTMⅡ/UTMV |
|---|---|
| Minimum input frequency | Selectable from 15, 10, 5, 3 or 2 rpm (when pulse rate is 4 ppr) Selectable from 60, 40, 20, 12 or 8 rpm (when pulse rate is 1 ppr) |
| Minimum detection pulse width | 50 μs |
| Circuit configuration | No-voltage contact input (minus common) Open collector connectable (Ic ＝ Approx. 10 mA) |
| Input for low-speed rotation (open-collector pulse) : for UTMⅡ with rotary encoder option |
|
| Maximum input frequency | Approx. 1000 rpm |
|---|---|
| Minimum input frequency | 0.1 rpm |
| Minimum detection pulse width | 5 μs |
| Circuit configuration | No-voltage contact input (minus common) Open collector connectable (Ic ＝ Approx. 10 mA) |
| Display section | |
| Display unit | 3.5 inch TFT color LCD |
|---|---|
| External I/O signal | |
| External output (8) | ex) high and low limit outputs |
|---|---|
| External input (10) | ex) hold control input, digital zero input(DZ) |
| Interface | |
| Standard | SIF：2-wire serial interface USB：USB interface |
|---|---|
| Option | D3V：D/A converter voltage output (3 ch) |
| General specifications | |
| Power supply | DC 24 V (±15%) |
|---|---|
| Power consumption | 6 W typ. |
| Operating conditions | Operation temperature：-10 to +40℃, storage temperature : -40 to +80℃ Humidity：85% RH or less (non-condensing) |
| Dimension | 96(W) × 96(H) × 138(D) mm (Not including projections) |
| Weight | Approx. 1.0 kg |
| CE marking certification | EMC directives EN61326-1 |
| Attachments | |
| Operation manual | 1 |
|---|---|
| External input/output connector | 1 |
| Cable for connecting UTMⅡ/UTMV 2 m | 1 |
| Operating tool (with D/A converter(3 ch) option) | 1 |
Optional accessories
| Model | Description |
| DTC2 | Case for TM700 (with AC power supply) |
|---|---|
| CA372-I/O | Cable with FCN connector at one-end 3 m |
| CA81-USB | miniUSB-computer USB cable 1.8 m |
| CATM21-M | Cable for connecting UTMⅡ/UTMV 2 m |
| CATM51-M | Cable for connecting UTMⅡ/UTMV 5 m |
| CATM(R)21-M | Cable for connecting UTMⅡrotary encoder 2 m |
| CATM(R)51-M | Cable for connecting UTMⅡrotary encoder 5 m |
| CN50 | FCN series I/O connector (with cover) |
| CN55 | FCN series I/O connector (with diagonal cover) |
| CN73 | D/A converter(3 ch) connector |
| CN90 | Waterproof plastic connector for UTMⅡ/UTMV |
| CN91 | Waterproof plastic connector for UTMⅡrotary encoder |
| GMP96x96 | Rubber seal |
| TSU03 | DC lighting surge unit |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.

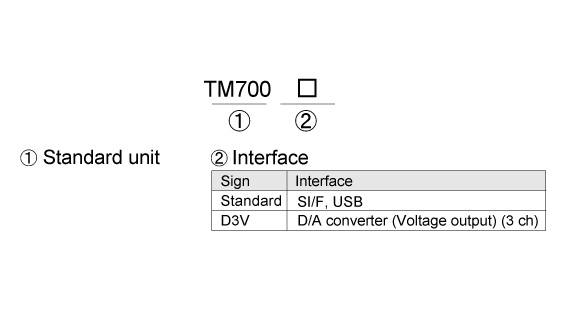

Structure of product code
