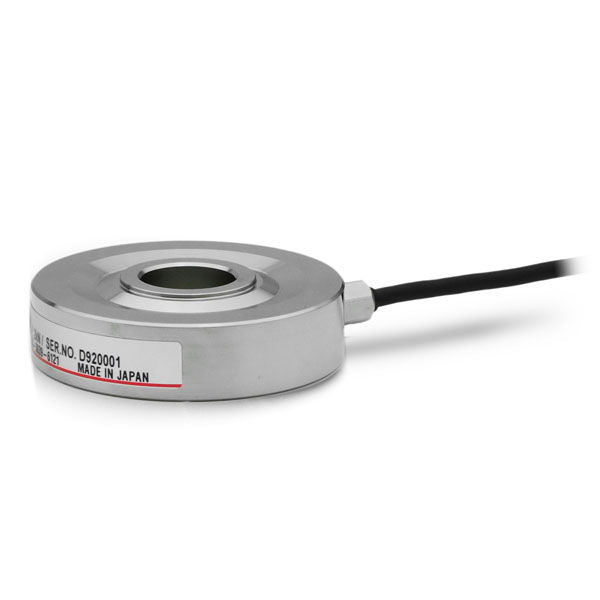

Easy to use low profile center hole load cell!

Capacity 1 kN/ 2 kN/ 5 kN/ 10 kN/ 20 kN

Suitable for measurement of axial bolt force, press-fitting, and caulking.

Model	UBFH- 1KN	UBFH- 2KN	UBFH- 5KN	UBFH- 10KN	UBFH- 20KN
Rated capacity	1 kN	2 kN	5 kN	10 kN	20 kN
Rated output	Approx. 1 mV/V
Safe overload	150% R.C.
Zero balance	±10% R.O.
Non-linearity	0.1% or less R.O.		0.2% or less R.O.	0.5% or less R.O.
Hysteresis	0.2% or less R.O.			0.5% or less R.O.
Repeatability	0.1% or less R.O.			0.3% or less R.O.
Compensated temperature range	-10 to +60℃
Safe temperature range	-10 to +70℃
Temperature effect on zero	0.3% R.O./10℃ or below
Temperature effect on span	0.2% R.O./10℃ or below
Input resistance	Approx. 1000 Ω
Output resistance	Approx. 1000 Ω
Recommended excitation voltage	10 V
Maximum excitation voltage	15 V
Insulation resistance	1000 MΩ or more
Cable	φ3.8 4-conductor flexible cable (3 m) Cable end: 5 wires

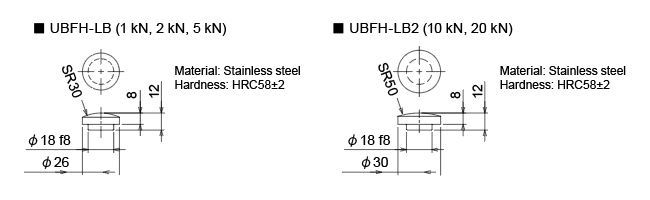

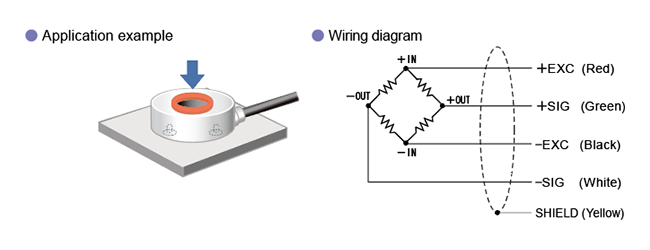

Cable color code	＋EXC：Red ＋SIG：Green －EXC：Black －SIG：White SHIELD：Yellow
Deflection at rated	0.030 mm			0.035 mm
Natural frequency	5.0 kHz	7.3 kHz	11 kHz	9.7 kHz	13 kHz
Load cell material	Stainless steel
Weight	280 g			470 g
RoHS directives	2011/65/EU (EU)2015/863
