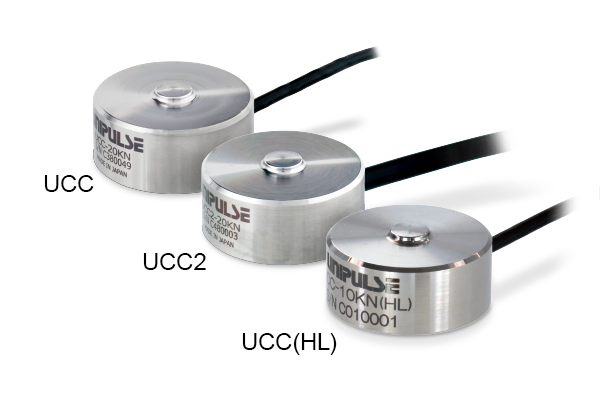

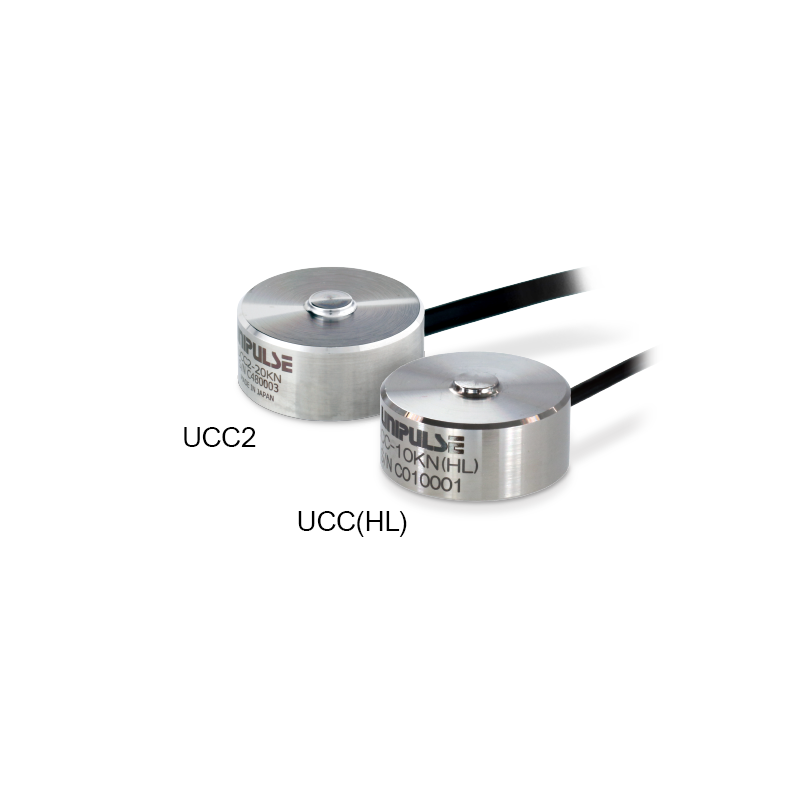

Product outline

  • Can measure up to 20 kN with diameter of 21 mm!
  • Capacity 10 kN/ 20 kN
  • Also supports high/low temperature environment from -40℃ to 150℃ (HL)

Specifications

Model UCC-10KN UCC-20KN UCC-10KN
（HL)		 UCC-20KN
(HL)
Rated capacity 10 kN 20 kN 10 kN 20 kN
Rated output Approx. 1 mV/V
Safe overload 120% R.C.
Zero balance ±10% R.O.
Non-linearity 0.5% or less R.O.
Hysteresis 0.5% or less R.O.
Repeatability 0.2% or less R.O.
Compensated
temperature range		 0 to +50℃ -40 to +150℃
Safe temperature
range		 -10 to +60℃ -40 to +150℃
Temperature effect on
zero		 0.5% R.O/10℃ or below
Temperature effect on
span		 0.5% R.O/10℃ or below
Input resistance Approx. 350 Ω
Output resistance Approx. 350 Ω
Recommended
excitation voltage		 2.5 V
Maximum excitation
voltage		 5 V
Insulation resistance
(DC 50 V)		 1000 MΩ or more
Cable φ2 4-conductor flexible cable (2 m)
Cable end: 5 wires		 φ2 4-conductor fluorine resin cable (3 m)
Cable end: 5 wires
Load cell material Stainless steel
Deflection at rated 0.030 mm 0.045 mm 0.030 mm 0.045 mm
Natural frequency 54 kHz 55 kHz 54 kHz 55 kHz
Weight 20 g
RoHS directives 2011/65/EU (EU)2015/863
Example of use, Wiring diagram

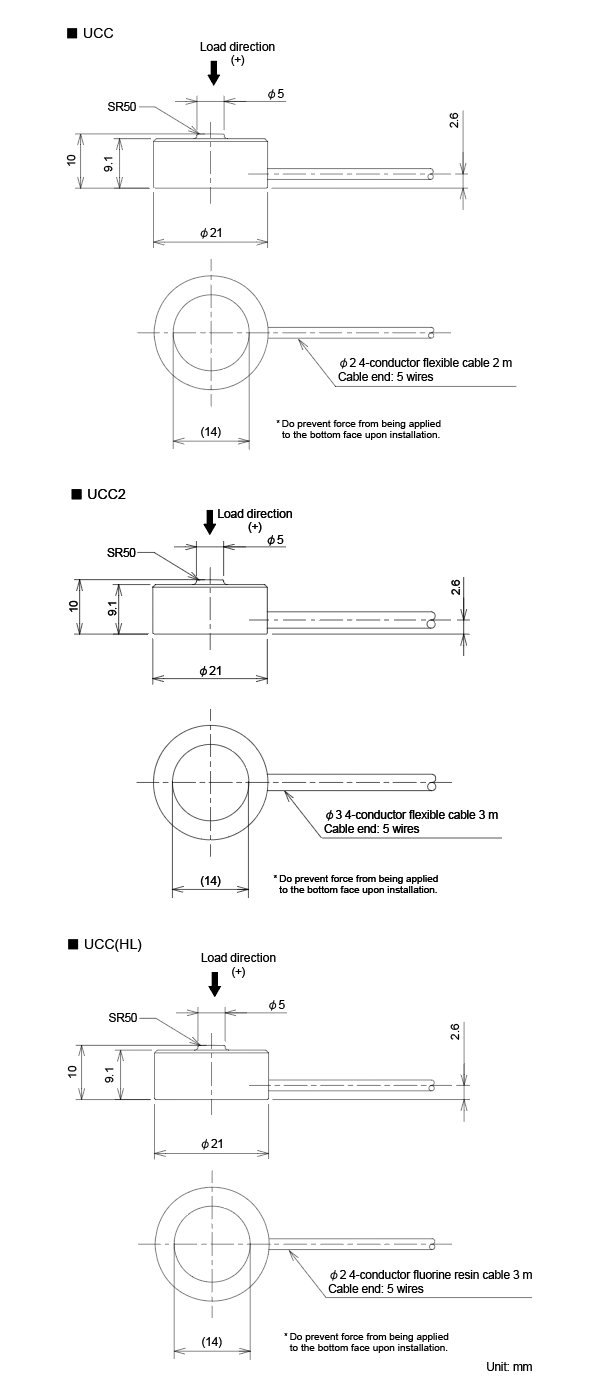

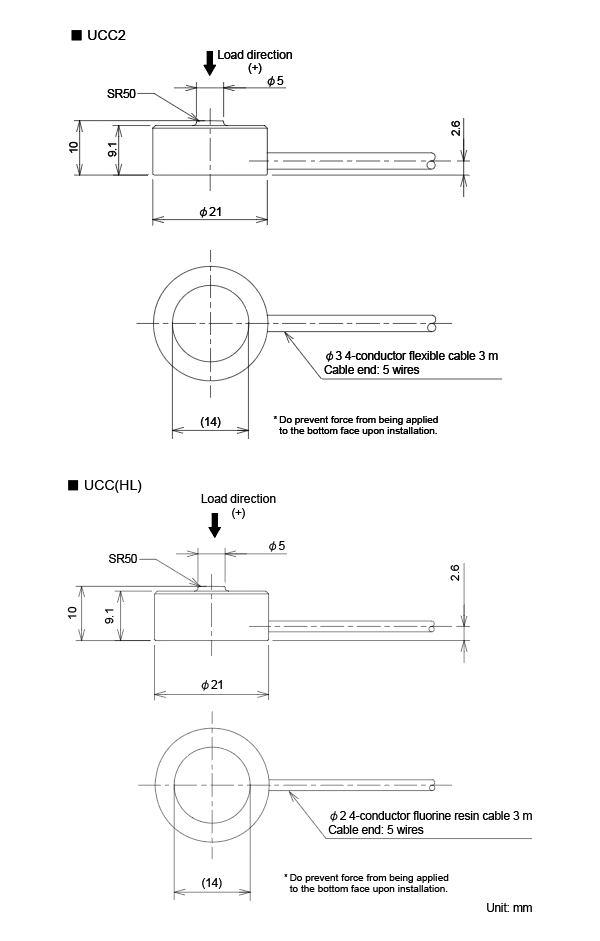

External dimension
