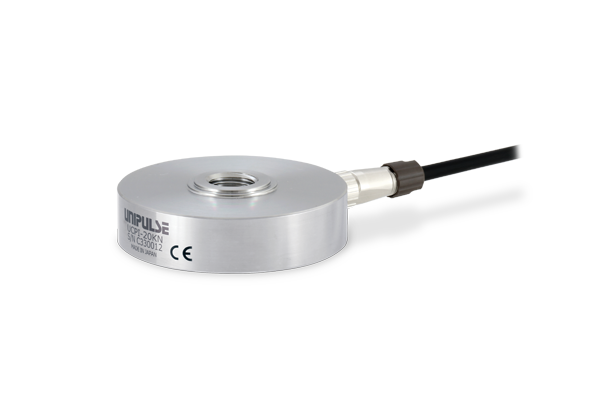

Product outline

・Capacity: 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN
・A tapped hole cut in the center, can be used for both tension & compression measurement
・Suitable for assembling into press machine and compression & tension testing machine due to its low-profile body
・A cable with a connector. Convenient for exchange.
・Can be easily installed in presses made by THK.

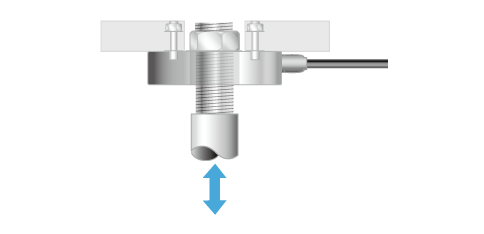

Application example

UCPI is capable of measuring axial force between bolt and nut as illustrated below and is ideal for tension measurement of anchor!

Specifications

Model	UCPI- 1KN	UCPI- 2KN	UCPI- 5KN	UCPI- 10KN	UCPI- 20KN	UCPI- 50KN
Rated capacity	1 kN	2 kN	5 kN	10 kN	20 kN	50 kN
Rated output	Approx. 2 mV/V
Safe overload	150% R.C.
Zero balance	±10% R.O.
Non-linearity	0.1% or less R.O.					0.15% or less R.O.
Hysteresis	0.1% or less R.O.					0.25% or less R.O. *Specification changed.
Repeatability	0.1% or less R.O.
Compensated temperature range	－10 to ＋60℃
Safe temperature range	－20 to ＋70℃
Temperature effect on zero	0.1% R.O./10℃ or below
Temperature effect on span	0.1% R.O./10℃ or below
Input resistance	Approx. 1000 Ω
Output resistance	Approx. 1000 Ω
Recommended excitation voltage	10 V
Maximum excitation voltage	15 V
Insulation resistance	1000 MΩ or more
Cable	φ5 6 conductor flexible cable 3 m Cable end: 7 wires
Load cell material	Stainless steel
Deflection at rated	0.05 mm		0.06 mm	0.04 mm	0.05 mm	0.06 mm
Natural frequency	5 kHz	7 kHz	10 kHz		13 kHz
Weight	350 g			410 g		630 g
RoHS directives	2011/65/EU (EU)2015/863

Wiring diagram

External dimension

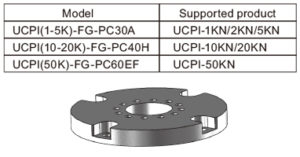

Optional accessories

With the mounting flange, it is possible to mount UCPI easily to a press machine manufactured by THK.
