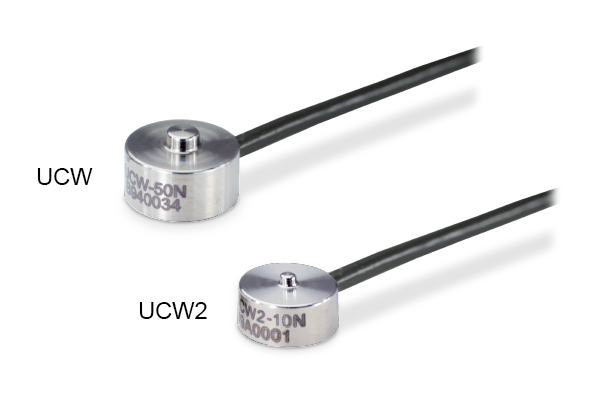

Product outline
UCW2:Diameter 6 mm, height 3.5 mm
UCW:Diameter 7 mm, height 4.5 mm
Compact type load cell
● Capacity
UCW2:10 N/ 20 N
UCW:50 N/ 100 N/ 200 N/ 500 N
● Construction material: Stainless steel
Specifications
Model | UCW2-10N, UCW2-20N |
UCW-50N, UCW-100N, UCW-200N, UCW-500N |
---|---|---|
Rated capacity | 10 N, 20 N | 50 N, 100 N, 200 N, 500 N |
Rated output | Approx. 0.5 mV/V | Approx. 1 mV/V |
Safe overload | 200% R.C. | |
Zero balance | ±20% R.O. | ±10% R.O. |
Non-linearity | 0.3% or less R.O. | |
Hysteresis | 0.2% or less R.O. | |
Repeatability | 0.1% or less R.O. | |
Compensated temperature range |
0 to +60℃ | |
Safe temperature range |
-10 to +70℃ | |
Temperature effect on zero |
1% R.O./10℃ or below | 0.5% R.O./10℃ or below |
Temperature effect on span |
1% R.O./10℃ or below | 0.5% R.O./10℃ or below |
Input resistance | Approx. 350 Ω | |
Output resistance | Approx. 350 Ω | |
Recommended excitation voltage | 2.5 V | |
Maximum excitation voltage |
5 V | |
Insulation resistance (DC 50 V) |
1000 MΩ or more | |
Cable | φ1.6 4-conductor shield cable 0.5 m Cable end: 5 wires |
|
Cable color code | +EXC:Red +SIG : Green -EXC : Black -SIG : White SHIELD |
|
Load cell material | Stainless steel | |
Deflection at rated | 0.003 mm | 50N:0.003 mm 100N/200N:0.004 mm 500N:0.005 mm |
Natural frequency | 10N:110 kHz 20N:140 kHz |
50N:110 kHz 100 to 500N:120 kHz |
Weight | 1 g | 2 g |
RoHS directives | 2011/65/EU (EU)2015/863 |

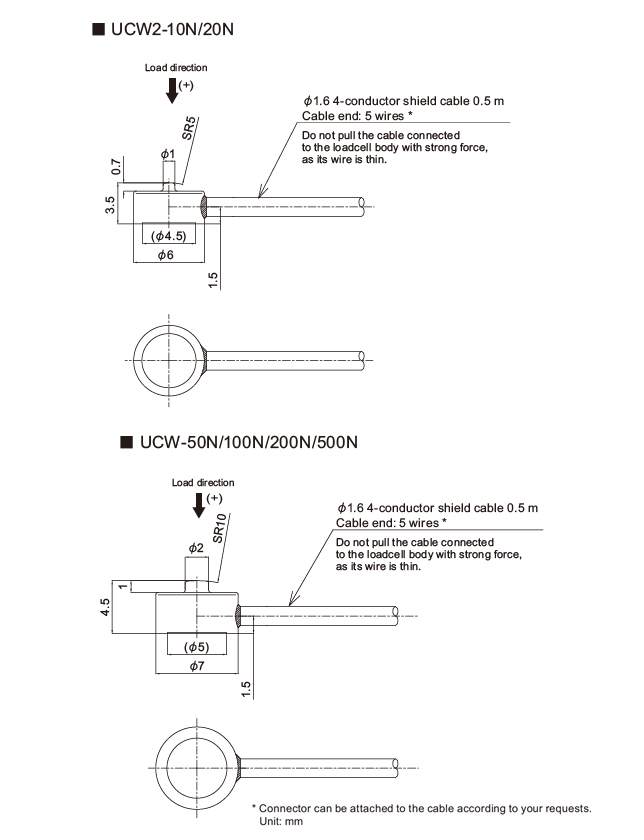

External dimension
