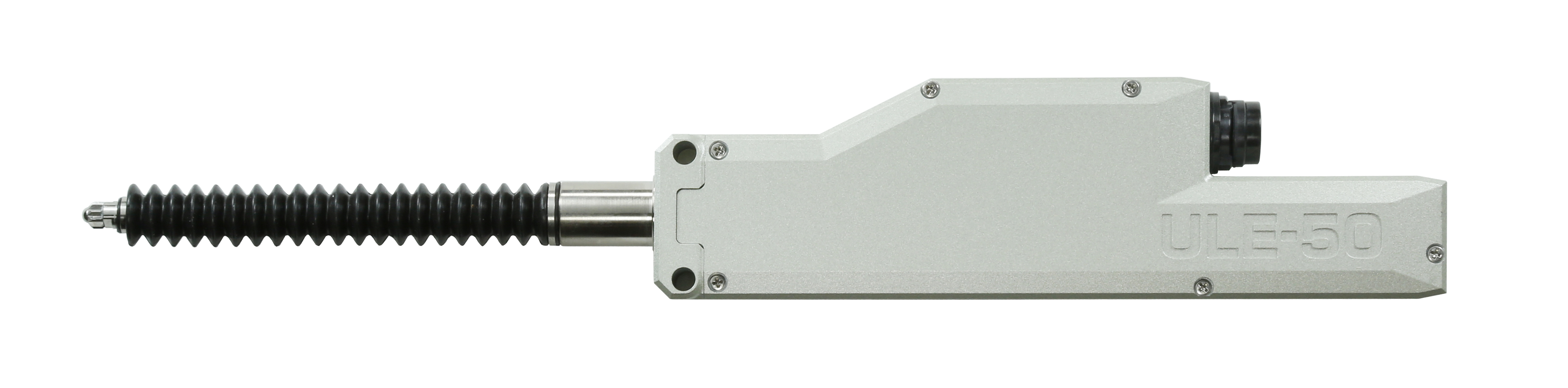

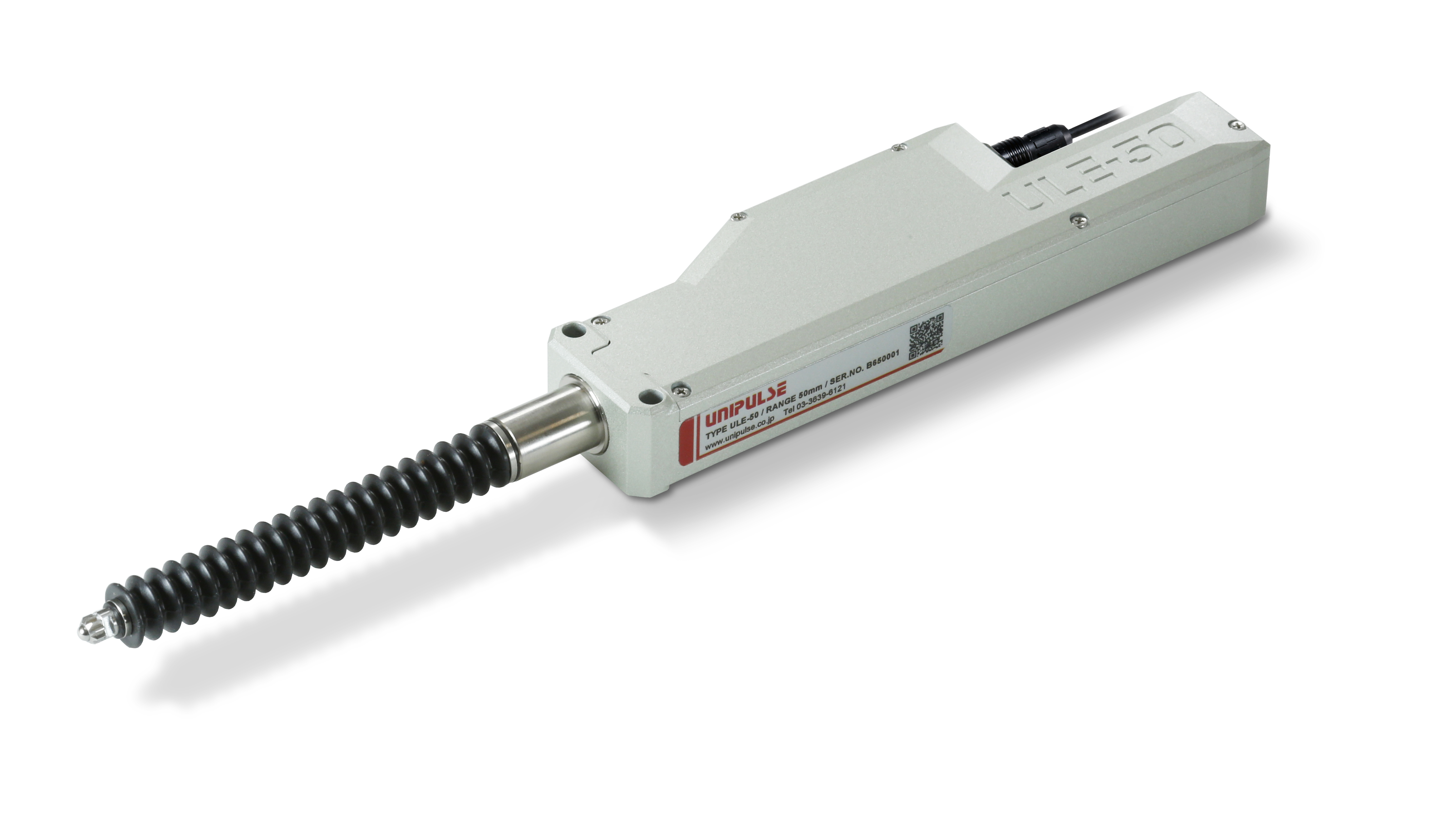

ULE-50 is a digital contact sensor designed for use with UNIPULSE indicator.

50 mm stroke for various workpieces.
Flexible cable for installation on moving parts.
Ideal for use with PFA, FS2000, F381A-LDI indicator.

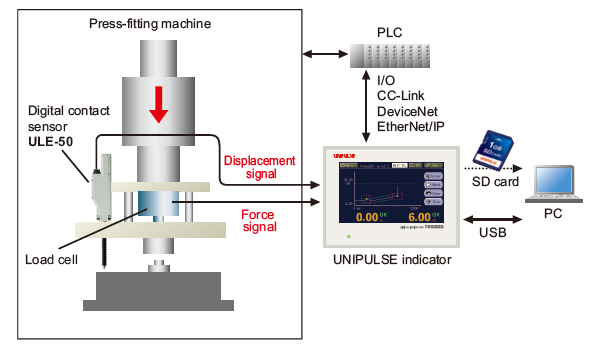

By using it with a load cell and “PFA, FS2000, F381A-LDI” force vs. displacement measurement can be performed!!!

Model	ULE-50
Method	Incremental
Measurement range	50 mm
resolution	2.5 μm (When connected to a UNIPULSE indicator)
Measuring force	downward: Approx. 2.8 N (at 50 mm) Side: Approx. 2.6 N (at 50 mm) Upward: Approx. 2.3 N (at 50 mm)
Operating temperature	-10℃ to +40℃
Storage temperature	-20℃ to +60℃
Output signal	Differential line driver signal with 90° phase difference (RS-422A compliant)
Cable	Flexible cable 2 m
Cable color	Red (PWR+), Blue (PWR-), Pink (A+), Blown (A-), Yellow (B+), Green (B-), Shield
Weight	Approx. 350 g
Power supply voltage	DC 4.5 to 30 V
Current consumption	Approx. 0.1 A or less
Optional accessory	ULE-DB: Dust boots
