Product outline

Compact compression type with a diameter of 20 mm and a height of 9.5 mm.

● Capacity 100 N/ 200 N
● Construction material：stainless steel

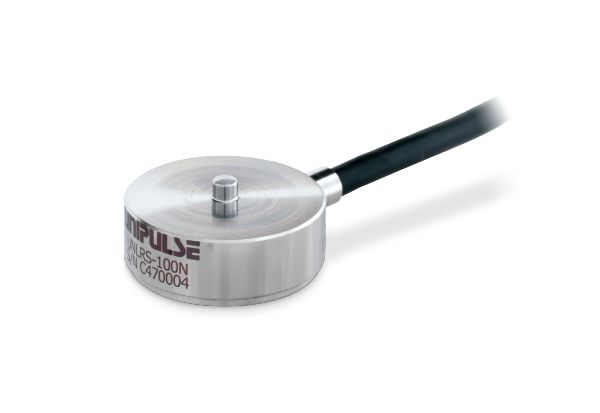

● Compact compression type load cell with a diameter of 20 mm and a height of 9.5 mm

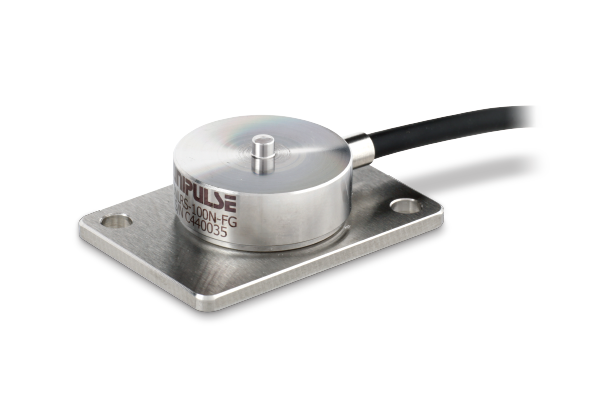

● UNLRS-FG: W/plate for screw fastening

Specifications

Model UNLRS-100N, UNLRS-100N-FG,
UNLRS-200N, UNLRS-200N-FG
Rated capacity 100 N, 200 N
Rated output Approx. 1 mV/V
Safe overload 150% R.C.
Zero balance ±20% R.O.
Non-linearity 0.3% or less R.O.
Hysteresis 0.3% or less R.O.
Repeatability 0.1% or less R.O.
Compensated temperature
range		 0 to ＋60℃
Safe temperature range -10 to +60℃
Temperature effect on zero 2.0% R.O./10℃ or below
Temperature effect on span 1.0% R.O./10℃ or below
Input resistance Approx. 350 Ω
Output resistance Approx. 350 Ω
Recommended excitation
voltage		 2.5 V
Maximum excitation voltage 6 V
Insulation resistance
(DC 50 V)		 1000 MΩ or more
Cable φ3 4-conductor shield cable 3 m
Cable end: 5 wires
Cable color code ＋EXC：Red
＋SIG：Green
－EXC：White
－SIG:Black
SHIELD:Yellow
Load cell material Stainless steel
Deflection at rated 0.01 mm
Natural frequency 100N, 100N-FG：21 kHz
200N, 200N-FG：25 kHz
Weight 100N：5 g
100N-FG：18 g
200N：5 g
200N-FG：18 g
RoHS directives 2011/65/EU (EU)2015/863

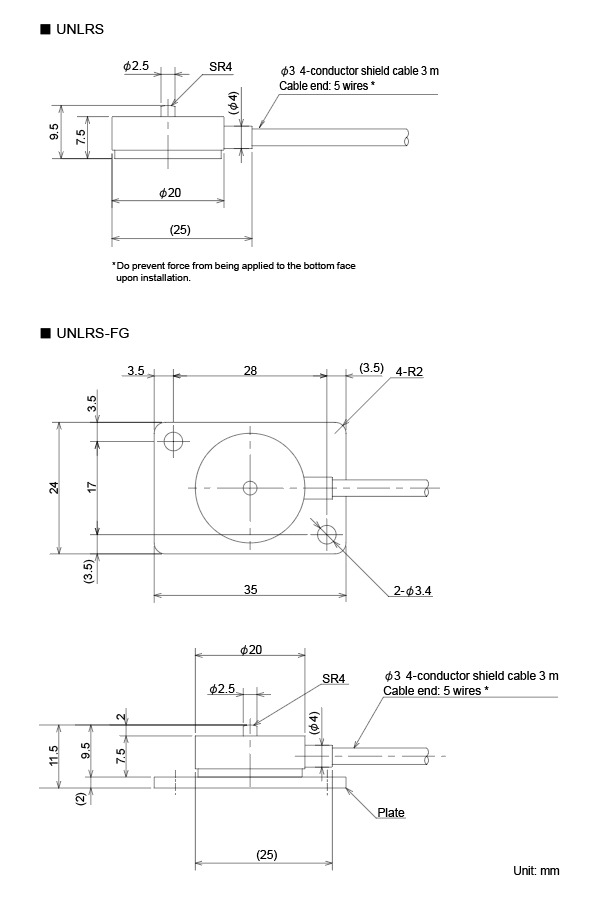

External dimension
