Product outline

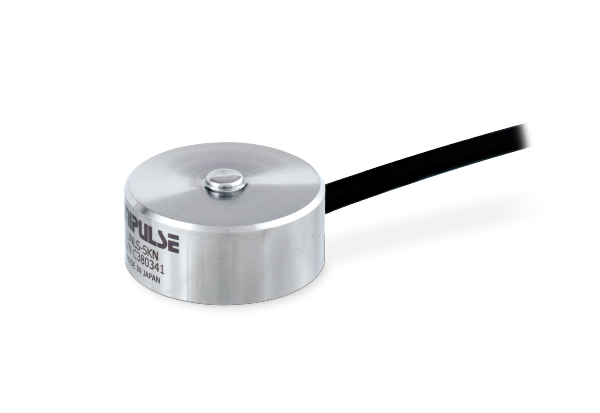

Compact compression type load cell with a diameter of 21 mm and a height of 10 mm

● Capacity 100 N/ 200 N/ 500 N/ 1 kN/ 2 kN/ 5 kN
● Construction material: Stainless steel
● Compact compression type load cell with a diameter of 21 mm and a height of 10 mm

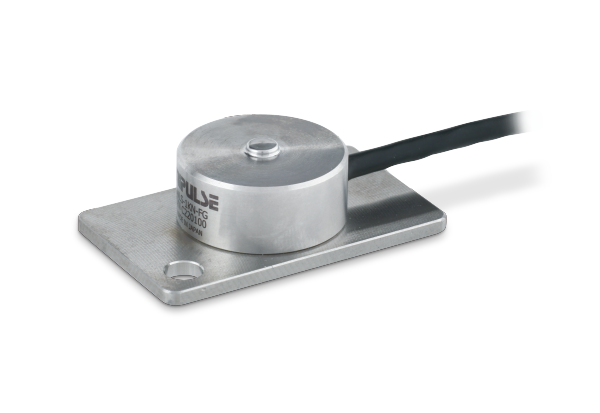

● UNLS-FG: W/plate for screw fastening

Specifications

Model UNLS-100N, UNLS-200N,
UNLS-500N, UNLS-1KN,
UNLS-2KN, UNLS-5KN		 UNLS-100N-FG, UNLS-200N-FG, UNLS-500N-FG, UNLS-1KN-FG, UNLS-2KN-FG, UNLS-5KN-FG
Rated capacity 100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN
Rated output Approx. 1 mV/V
Safe overload 150% R.C.
Zero balance ±10% R.O.
Non-linearity 0.5% or less R.O. 1.0% or less R.O.
Hysteresis 0.3% or less R.O. 0.5% or less R.O.
Repeatability 1.0% or less R.O. 1.0% or less R.O.
Compensated
temperature range		 0 to +50℃
Safe temperature
range		 0 to +60℃
Temperature effect
on zero		 0.5% R.O./10℃ or below
Temperature effect
on span		 0.5% R.O./10℃ or below
Input resistance Approx. 350 Ω
Output resistance Approx. 350 Ω
Recommended
excitation voltage		 2.5 V
Maximum excitation
voltage		 5 V
Insulation
resistance (DC 50 V)		 1000 MΩ or more
Cable φ3 4-conductor shield cable 2 m
Cable end: 5 wires
Cable color code ＋EXC: Red
＋SIG: Green
－EXC: White
－SIG: Black
SHIELD: Yellow
Load cell material Stainless steel
Deflection at rated 100N, 100N-FG：0.015 mm
200N, 200N-FG：0.015 mm
500N, 500N-FG：0.020 mm
1kN, 1kN-FG: 0.020 mm
2kN, 2kN-FG: 0.025 mm
5kN, 5kN-FG: 0.040 mm
Natural frequency 100N, 100N-FG：35 kHz
200N, 200N-FG：47 kHz
500N, 500N-FG：60 kHz
1kN, 1kN-FG: 85 kHz
2kN, 2kN-FG: 98 kHz
5kN, 5kN-FG: 102 kHz
Weight 100N: 20 g, 100N-FG: 35 g
200N: 20 g, 200N-FG: 35 g
500N: 20 g, 500N-FG: 35 g
1kN: 20 g, 1kN-FG: 35 g
2kN: 20 g, 2kN-FG: 35 g
5kN: 20 g, 5kN-FG: 35 g
RoHS directives 2011/65/EU (EU)2015/863

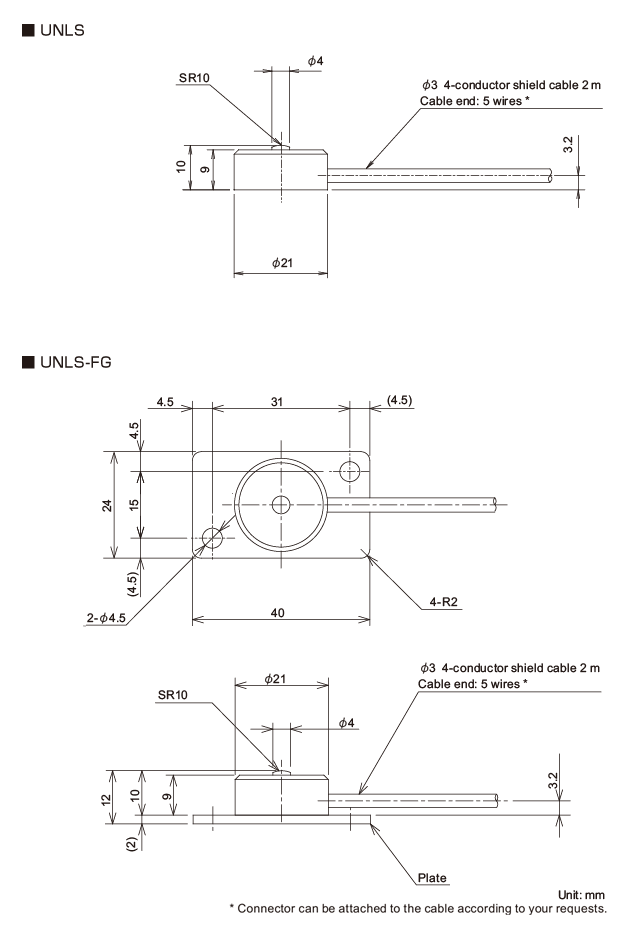

External dimension
