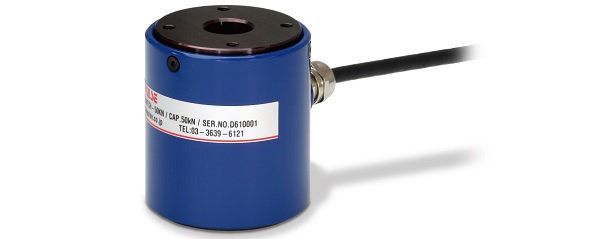

Product outline
Most appropriate for load control of press fitting, caulking, etc.
● Capacity 5 kN/ 10 kN/ 20 kN/ 50 kN/ 100 kN
● Construction material: Special alloy steel
● Most appropriate for load control of press fitting, caulking, etc.
● Capacity 5 kN/ 10 kN/ 20 kN/ 50 kN/ 100 kN
● Construction material: Special alloy steel
● Most appropriate for load control of press fitting, caulking, etc.
Specifications
| Model | UNTCH-5KN, UNTCH-10KN, UNTCH-20KN, UNTCH-50KN, UNTCH-100KN |
|---|---|
| Rated capacity | 5 kN, 10 kN, 20 kN, 50 kN, 100 kN |
| Rated output | 1 mV/V±1% |
| Safe overload | 120% R.C. |
| Zero balance | ±5% R.O. |
| Non-linearity | 0.5% or less R.O. |
| Hysteresis | 0.5% or less R.O. |
| Compensated temperature range |
-10 to +70℃ |
| Safe temperature range | -30 to +80℃ |
| Temperature effect on zero | 0.1% R.O./10℃ or below |
| Temperature effect on span | 0.1% R.O./10℃ or below |
| Input resistance | Approx. 350 Ω |
| Output resistance | Approx. 350 Ω |
| Recommended excitation voltage |
10 V |
| Maximum excitation voltage | 20 V |
| Insulation resistance (DC 50 V) | 2000 MΩ or more |
| Cable | φ6 4-conductor shield cable 3 m Cable end: 5 wires |

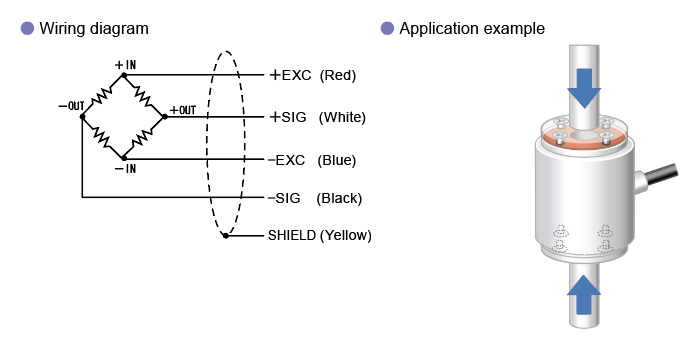

| Cable color code | ＋EXC: Red ＋SIG: White －EXC: Blue －SIG: Black SHIELD: Yellow |
| Load cell material | Special alloy steel |
| Deflection at rated | 5KN：0.025 mm 10KN：0.025 mm 20KN：0.045 mm 50KN：0.050 mm 100KN：0.065 mm |
| Natural frequency | 5KN：13 kHz 10KN：7 kHz 20KN：11 kHz 50KN：14 kHz 100KN：20 kHz |
| Weight | 5KN：300 g 10KN：930 g 20KN：1.0 kg 50KN：1.0 kg 100KN：1.0 kg |
| RoHS directives* | 2011/65/EU (EU)2015/863 |
*Supported only for UNTCH-50KN.

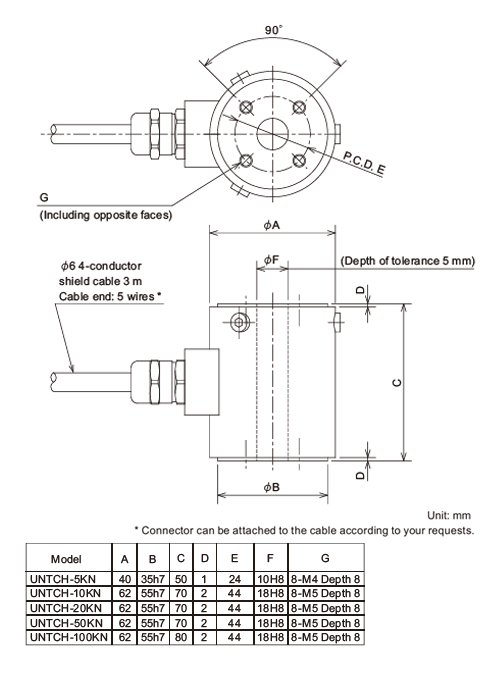

External dimension
