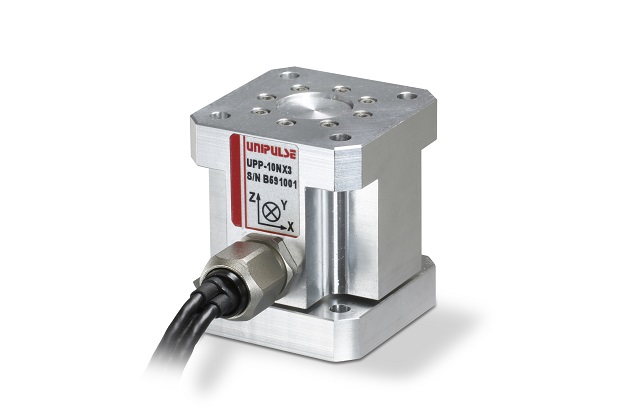

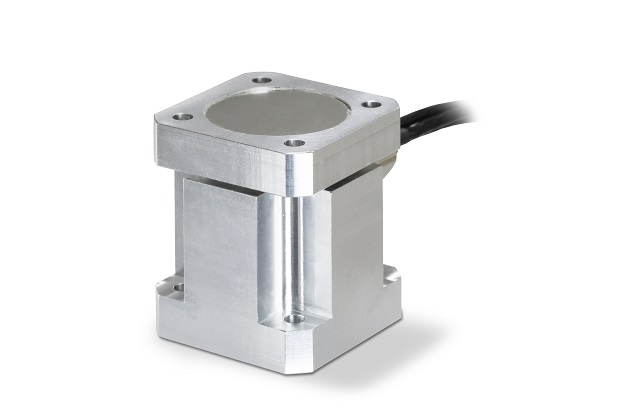

Product outline

Force in 3 dimensions(X, Y, Z) can be measured at the same time

Safe overload rating of 500%
– the three-axis force sensor with the high sensitivity and stiffness

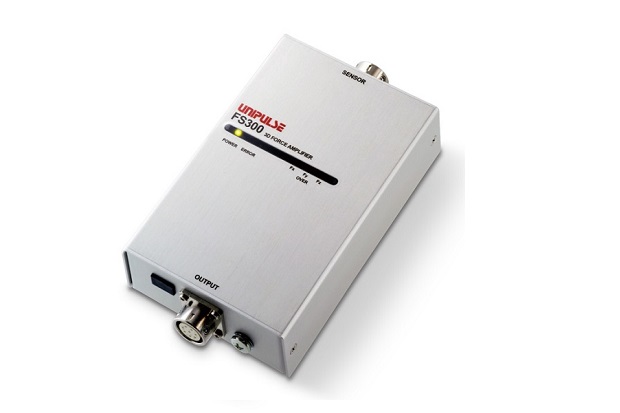

Dedicated amplifier FS300

±5 V output at the rated capacity for each direction: Fx, Fy, Fz (three axis).
As output signals for each direction is adjusted before shipping out, you can get calibrated(scaled) output by just connecting sensor and DC 24 V power supply to FS300.

Specifications

Model Sensor：UPP-100NX3, Amplifier：FS300
Rated capacity Fx, Fy : ±100 N, Fz : 100 N
Power supply voltage DC 24 V±15%
Consumption current 150 mA or less
Load signal output Fx, Fy, Fz：±5 V
Load resistance 2 kΩ or more
Response 2 kHz
I/O signal Input: Auto zero command
Output: Auto zero response
Safe overload 500% FS
Non-linearity 0.5% FS or less
Hysteresis 0.5% FS or less
Repeatability 0.5% FS or less
Compensated temperature
range		 0 to +40℃
Safe temperature range -10 to +50℃
Temperature effect on zero 0.5% FS/℃ or below
Temperature effect on span 0.05% FS/℃ or below
Sensor material Aluminum alloy
Weight Sensor：Approx. 70 g,
Amplifier：Approx. 180 g

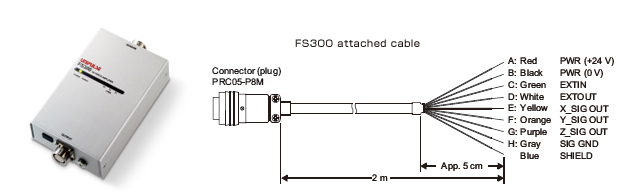

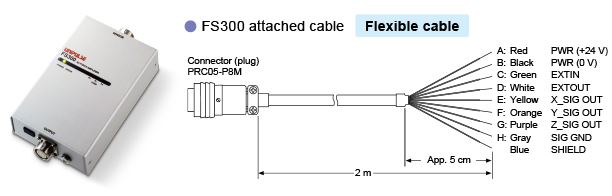

Cable 8 conductor flexible cable 1 m
(Connector is included for FS300 connection)

* Above specifications are achieved when the sensor(UPP-100NX3) is connected with the dedicated amplifier(FS300).
* Accuracy is not guaranteed in the range of Fz 0 to -5 V.
* Calibration is performed by using the dedicated adapter.
* Depending on adapters to be used or their mounting conditions, calibration values (slopes of load and output signal) may changes.

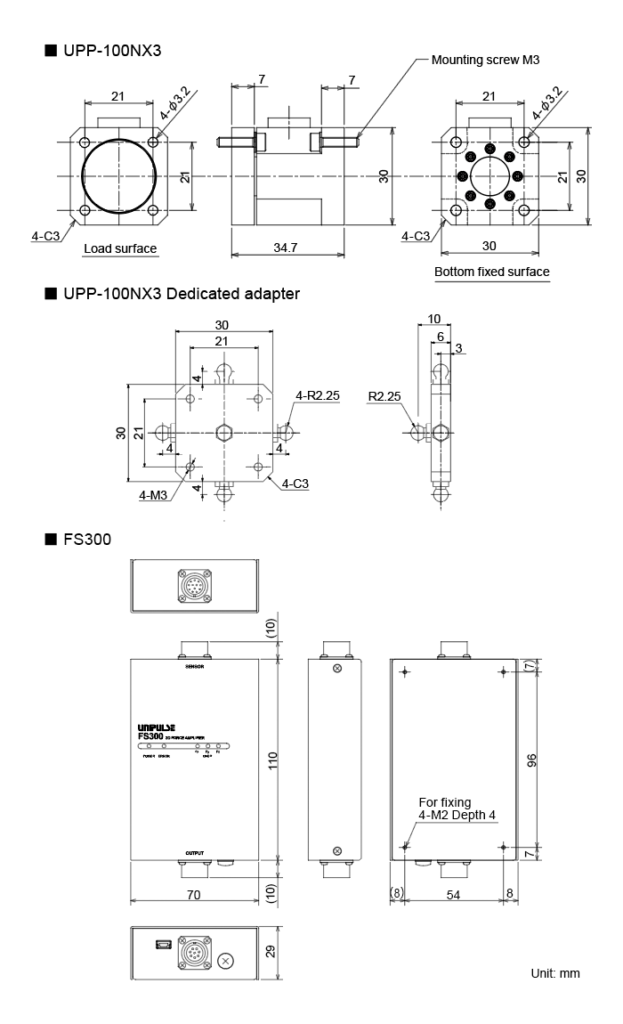

External dimension

Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
