Product outline
Thrust force and Torque are measured simultaneously.
- Phenomenal safe overload!!

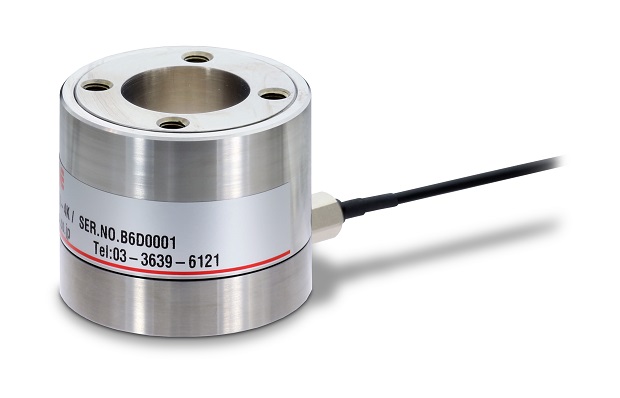

- URT-20-5K is a dual-axis load cell
having 2 kHz high-speed responsivity and high-stiffness.

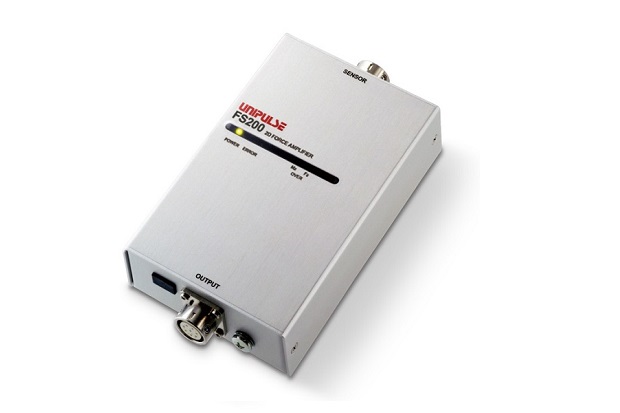

Product-specific amplifier
Rated Output is adjusted at ±5 V
in both Mz and Fz direction.

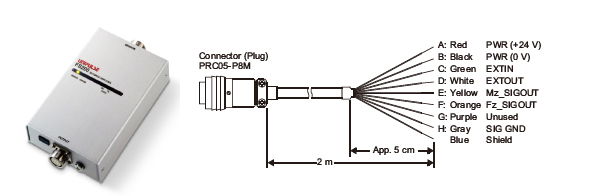

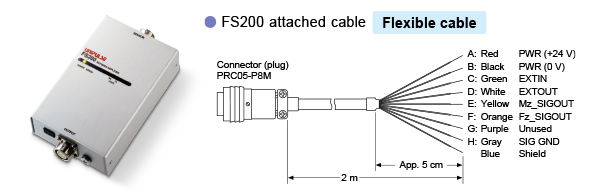

Just connect a sensor and apply 24 V to it, then adjusted voltage will be outputted simultaneously.
Any calibration settings are not required.
Specifications
| Model | Sensor : URT-20-5K Amplifier : FS200 |
|---|---|
| Rated capacity | Mz : ±20 Nm Fz : 5 kN |
| Power supply voltage | DC 24 V±15% |
| Consumption current | 150 mA or less |
| Load signal output | Mz, Fz : ±5 V |
| Load resistance | 2 kΩ or more |
| Response | 2 kHz |
| I/O signal | Input: Auto zero command Output: Auto zero response |
| Safe overload | Mz:500% FS Fz:400% FS |
| Non-linearity | Mz:0.1% FS typ., Fz:0.5% FS or less |
| Hysteresis | Mz:0.1% FS typ., Fz:0.5% FS or less |
| Repeatability | Mz:0.1% FS typ., Fz:0.5% FS or less |
| Cross talk | Mz(20 Nm) → Fz:0.05 kN or less Fz(5 kN) → Mz:0.2 Nm or less |
| Compensated temp. range | 0 to +40℃ |
| Safe temp. range | －10 to +50℃ |
| Temp. effect on zero | 0.1% FS/℃ or below |
| Temp. effect on span | 0.05% FS/℃ or below |
| Sensor material | Stainless steel |
| Weight | Sensor：Approx. 250 g, Amplifier：Approx. 180 g |
＊Above specifications are achieved when the sensor(URT-20-5K) is connected with the dedicated amplifier(FS200).
＊Accuracy is not guaranteed in the range of Fz 0 to -5 V.

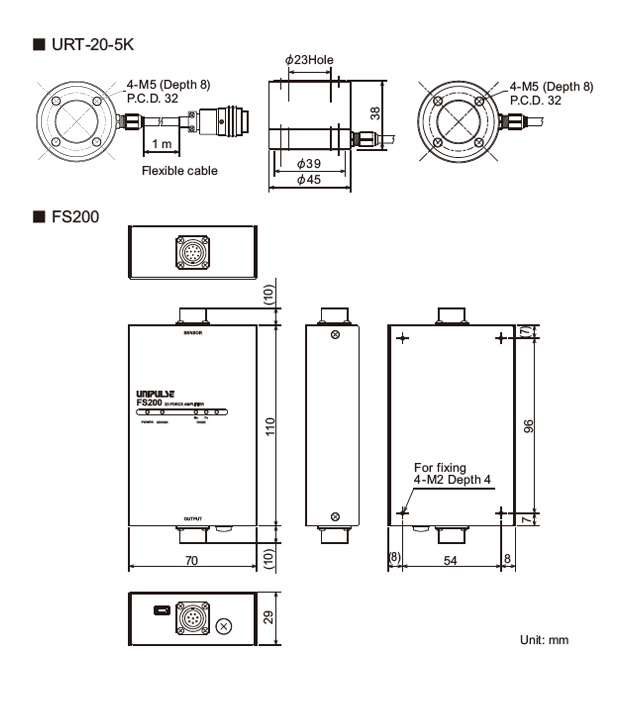

External dimension
