Product outline

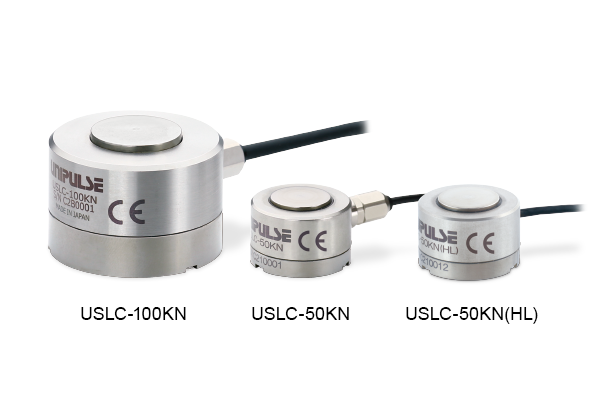

- Can measure up to 50 kN with diameter of 22 mm, and 100 kN with diameter of 38 mm!
- Easy & fast replacement from competitors’ load cells
Specifications
| Model | USLC-50KN | USLC-100KN |
|---|---|---|
| Rated capacity | 50 kN | 100 kN |
| Rated output | Approx. 2 mV/V | |
| Safe overload | 150% R.C. | |
| Zero balance | ±10% R.O. | |
| Non-linearity | 0.5% or less R.O. Specification changed. |
0.3% or less R.O. |
| Hysteresis | 0.5% or less R.O. Specification changed. |
0.3% or less R.O. |
| Repeatability | 0.1% or less R.O. | |
| Compensated temperature range | -10 to +60℃ | |
| Safe temperature range | -20 to +70℃ | |
| Temperature effect on zero |
0.5% R.O/10℃ or below | |
| Temperature effect on span |
0.5% R.O/10℃ or below | |
| Input resistance | Approx.700 Ω | |
| Output resistance | Approx.700 Ω | |
| Recommended excitation voltage | 5 V | |
| Maximum excitation voltage | 10 V | |
| Insulation resistance (DC 50 V) |
1000 MΩ or more | |
| Cable | φ2 4-conductor flexible cable (3 m) Cable end: 5 wires |
φ3.8 4-conductor flexible cable (3 m) Cable end: 5 wires |
| Load cell material | Stainless steel | |
| Deflection at rated | 0.08 mm | 0.07 mm |
| Natural frequency | 39 kHz | 16.3 kHz |
| Weight | 40 g | 210 g |
| RoHS directives | 2011/65/EU (EU)2015/863 | |
* Due to the characteristics of the stainless steel being used for, it is possible that it gets rusty on its surface.There is functionally no problem.

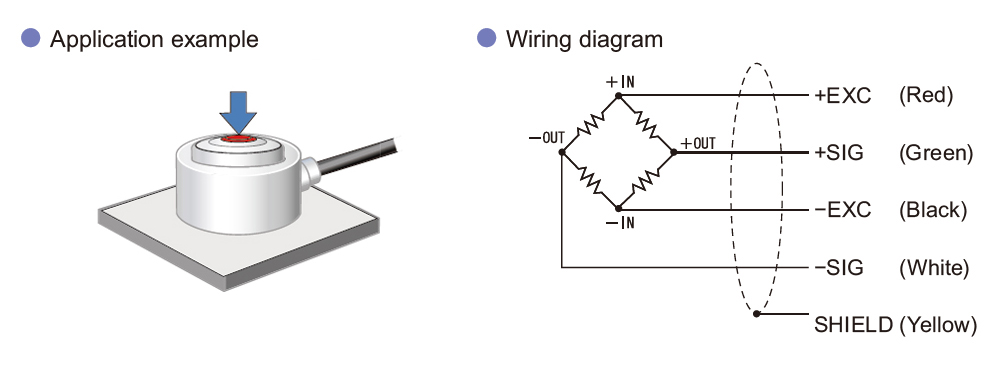

Application example, Wiring diagram

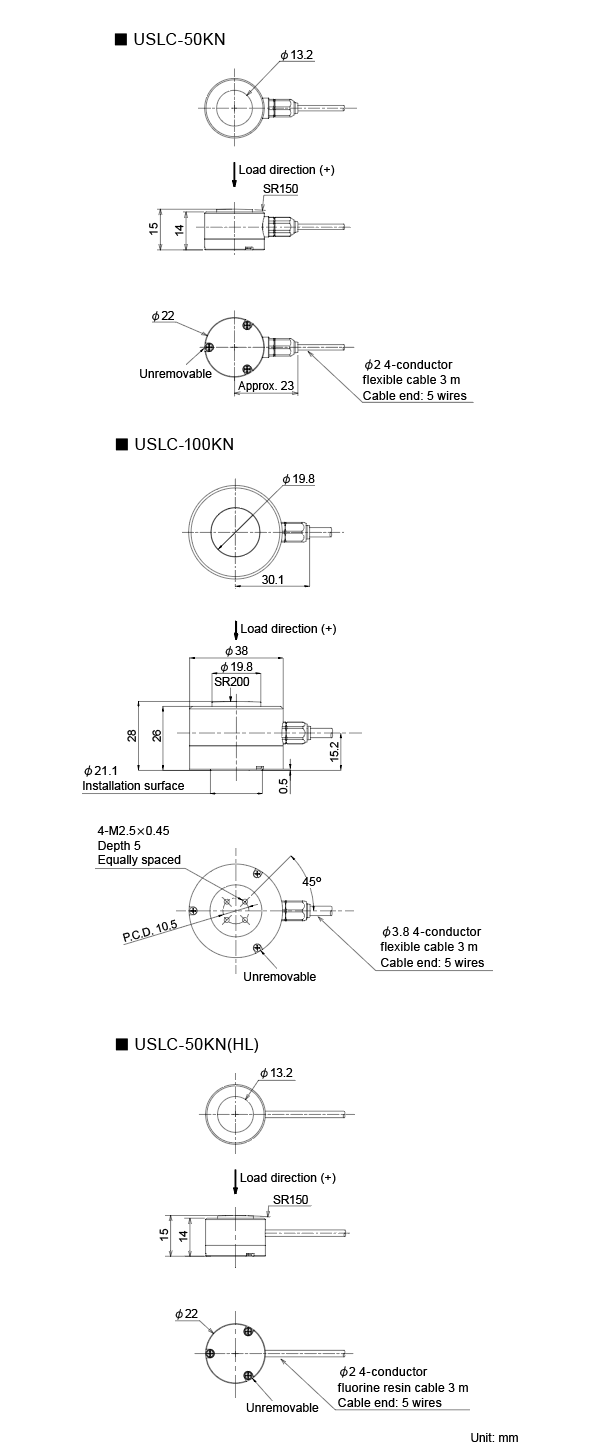

External dimension
Download
|
Product catalogue(PDF)
|
⇒Download Page | |
|---|---|---|
|
Operation manual(PDF)
|
||
|
External dimension
|
DXF
（ZIP） |
|
|
PDF
|
||
|
Support tools
|
||
|
Software
|
||
