Safe overload of 500% !　Miniature tension/compression load cell.

Capacity 1 N/ 2 N/ 5 N/ 10 N/ 20 N/ 50 N

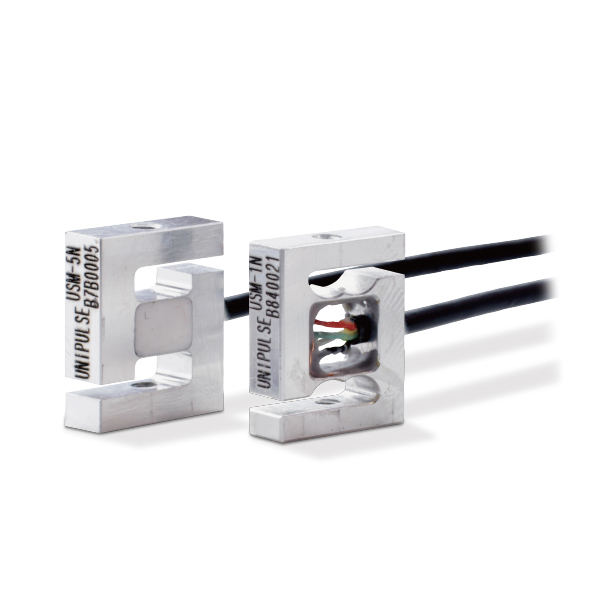

Ultra-compact size: 11W × 14H × 4D mm
Safe overload rating of 500% !!
Suitable for measurement of thread tension and plunger force for needle and syringe.

Space-saving design. Ideal for side-by-side installation too.

Two tapped holes at both hands enable easier connections to the actuator.

Load cell frequently gets damaged especially in small force measurement, and cable is easily broken.

Safe overload of 500%! Using high durability robot cable!

Model	USM-1N　 USM-2N	USM-5N　 USM-10N　 USM-20N　 USM-50N
Rated capacity	1 N, 2 N	5 N, 10 N, 20 N, 50 N
Rated output	Approx. 0.4 mV/V
Safe overload	500% R.C.
Zero balance	±0.5 mV/V *Spec Changed	±0.3 mV/V
Non-linearity	0.2% or less R.O.	0.1% or less R.O.
Hysteresis	0.2% or less R.O.	0.1% or less R.O.
Repeatability	0.1% or less R.O.
Compensated temperature range	-10 to +60℃
Safe temperature range	-20 to +70℃
Temperature effect on zero	3% R.O./10℃ or below *Spec Changed	1% R.O./10℃ or below
Temperature effect on span	1% R.O./10℃ or below
Input resistance	Approx. 1000 Ω
Output resistance	Approx. 1000 Ω
Recommended excitation voltage	5 V
Maximum excitation voltage	7.5 V
Insulation resistance	1000 MΩ or more
Cable	φ2mm 4-conductor flexible cable (1 m) Cable end: 5 wires
Cable color code	＋EXC：Red ＋SIG：Green －EXC：Black －SIG：White SHIELD：Yellow
Load cell material	Aluminum alloy
Deflection at rated	1N：0.006 mm 2N：0.007 mm 5N：0.005 mm 10N：0.011 mm 20N：0.011 mm 50N：0.023 mm
Natural frequency	1N：2.7 kHz 2N：3.1 kHz 5N：3.8 kHz 10N：3.3 kHz 20N：4.1 kHz 50N：4.3 kHz
Weight	Approx. 2 g (Excluding the cable)	Approx. 3 g (Excluding the cable)
RoHS directives	2011/65/EU (EU)2015/863
