Product outline

Capacity 1 kN/ 2 kN/ 5 kN/ 10 kN/ 20 kN/ 50 kN
Tension / compression type load cell
Less impact from lateral load pressing force can be measured accurately

Specifications

Model UTTC-
1KN		 UTTC-
2KN		 UTTC-
5KN		 UTTC-
10KN		 UTTC-
20KN		 UTTC-
50KN
Rated capacity 1 kN 2 kN 5 kN 10 kN 20 kN 50 kN
Rated output Approx. 1 mV/V
Safe overload 150% R.C.
Zero balance ±10 R.O.
Non-linearity 0.2% or less R.O. 0.1% or less R.O.
Hysteresis 0.1% or less R.O. 0.2% or less R.O.
Repeatability 0.1% or less R.O.
Compensated
temperature
range		 -10 to +60℃
Safe temperature
range		 -20 to +70℃
Temperature
effect on zero		 0.5% R.O./10℃ or below
Temperature
effect on span		 0.5% R.O./10℃ or below
Input resistance Approx. 1000 Ω
Output
resistance		 Approx. 1000 Ω
Recommended
excitation voltage		 10 V
Maximum
excitation voltage		 15 V
Insulation
resistance		 1000 MΩ or more
Cable φ3.8 mm 4-conductor flexible cable (3 m)
Cable end: 5 wires
Cable color code ＋EXC：Red
＋SIG：Green
－EXC：Black
－SIG：White
SHIELD：Yellow
Load cell
material		 Aluminum Stainless steel
Deflection at
rated		 0.020 mm 0.030 mm 0.022 mm 0.023 mm 0.044 mm
Natural
frequency		 3.8 kHz 4.0 kHz 5.2 kHz 4.2 kHz 4.5 kHz
Weight 140 g 210 g 300 g 920 g
RoHS directives 2011/65/EU (EU)2015/863

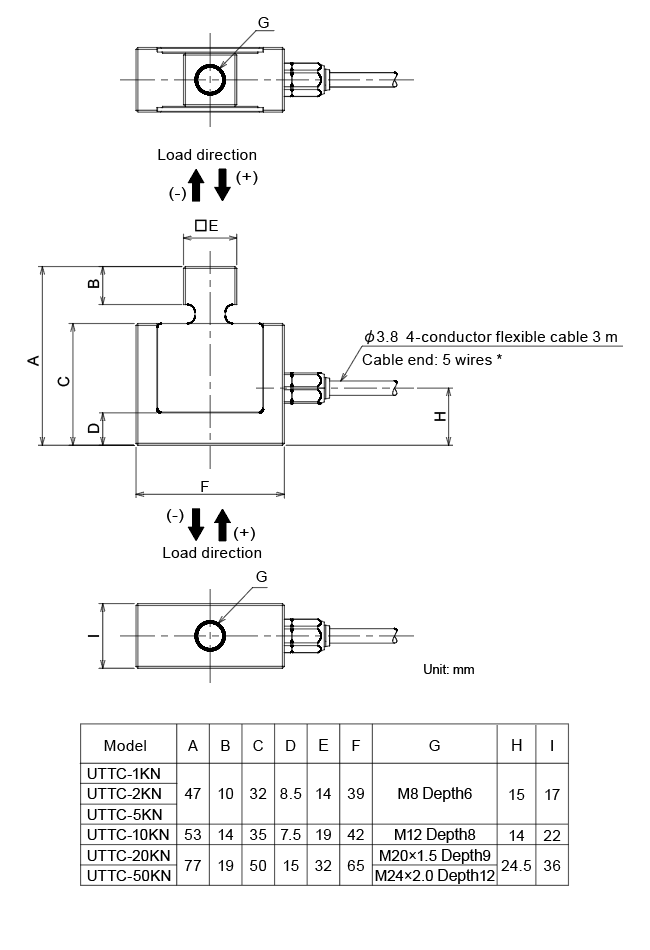

External dimension
