โครงร่างผลิตภัณฑ์

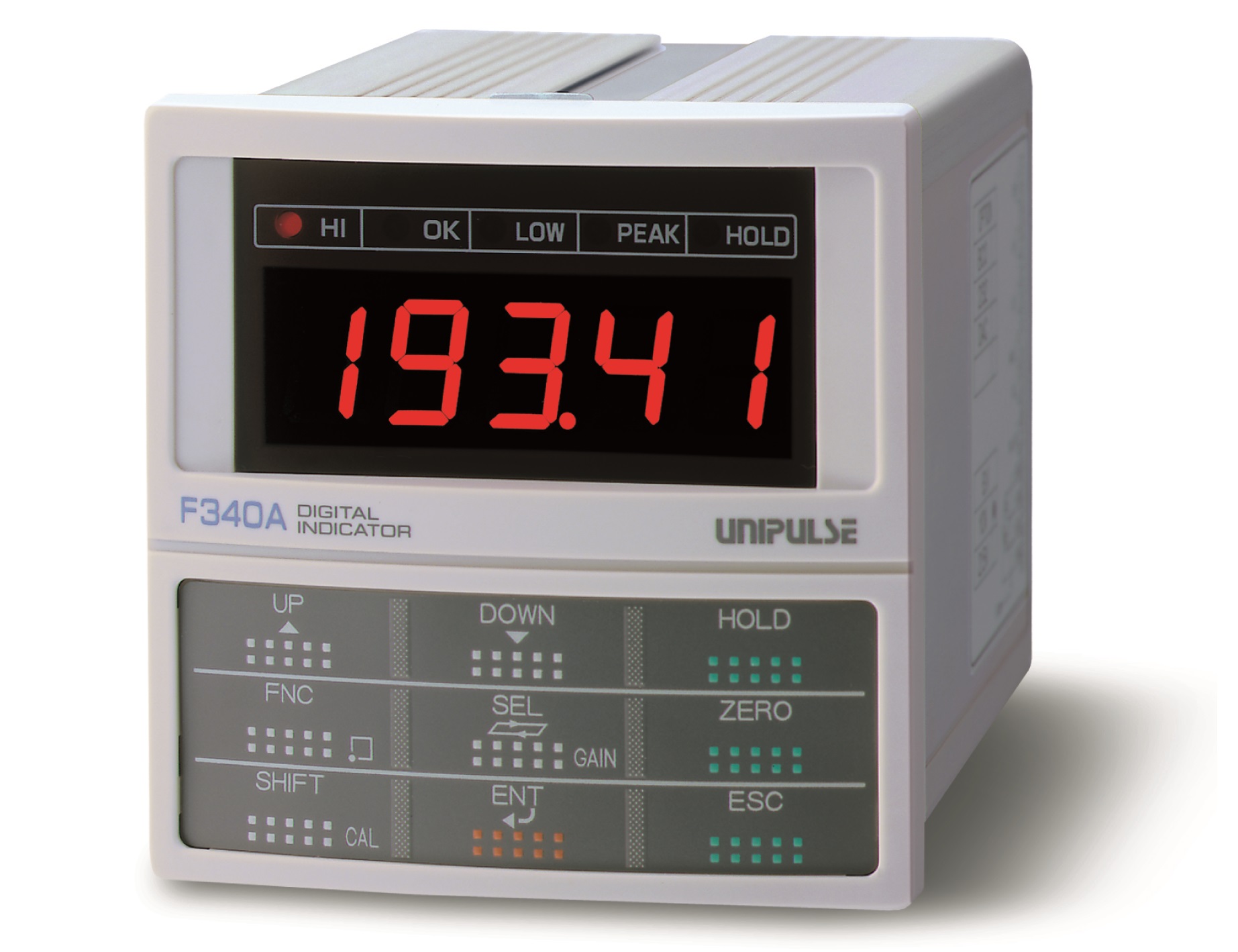

F340A is a digital indicator for strain gauge type sensors that measure pressure, load and torque. It is best used in the Pass/Fail acceptance judgment performed by automated devices and testers. F340A is a practical device equipped with compact DIN 96 square size, peak/sample hold function, and the equivalent input calibration function which allows calibration by simply key-inputting the rated value of the sensor without applying an actual load. This digital indicator has been made affordable while including all of these convenient functions at the same time.

ข้อมูลจำเพาะ

Analog section｜Display section｜Setting section｜External signal｜General performance｜Attachments

Analog section
Sensor excitation voltage 10/2.5 V DC ±10%; Output current: within 30 mA
Signal input range -3.0 to +3.0 mV/V
Accuracy Non-linearity: within 0.02%/FS (at 3 mV/V input)
Zero drift: within 0.5 μV/°C RTI
Gain drift: within 25 ppm/°C
A/D converter Speed: 100 times/sec.
Resolution: 16 bit (binary)
Analog filter Selectable from 4 Hz, 10 Hz, 100 Hz, 3 kHz
Low-pass filter (-6 dB/oct.)
Peak hold function
(High-speed analog hold method)		 At 3mV/V input: Performance response speed: approx. 1 kHz (at sine wave input, analog filter 3 kHz)
Accuracy: 0.1% FS or less, Reset time: 50 μs or less
Voltage output Analog voltage proportional to sensor input; Output level: approx. 2 V per 1 mV/V input
SI/F output Output data: Indicated value, status
Display section
Display unit 15 mm character height; 7-segment red LED numerical display (5 digits)
Digit numerals: ±8.8.8.8.8
Indicated value: -19999 to +19999
Decimal points: selectable decimal point displaying position
Display items Status display: 5 red LED display for HI, OK, LOW, PEAK, HOLD
Display times/sec: selectable from 3, 6, 13 and 25 times/sec.
Setting section
Setting items Calibration: Zero/ Span calibration (actual load/equiv. input calibration)
HI limit, LO limit, HI/LO comparison mode, hysteresis, digital offset, near zero, digital filter, analog filter, motion detect, zero tracking, hold mode, auto print, hold value print, LOCK, min scale, display frequency, excitation voltage, BCD data update rate, RS-232C, D/A converter zero setting, D/A converter full scale setting
External signal
External I/O signal HI limit relay (N/O) output, LO limit relay (N/O) output, digital zero input, hold input
Interface SIF: 2-wire type serial interface
232: RS-232C communication interface (Optional)
BCO: BCD parallel data output interface (Optional)
DAV: D/A converter interface (voltage output) (Optional)
DAI: D/A converter interface (current output) (Optional)
* Only 1 option can be installed.
General performance
Power supply voltage 100 V to 240 V AC (+10% -15%) (free power supply), 50/60 Hz, 12 to 24 V DC (±15%) (Please specify when ordering.)
Power consumption 15 W max
Operating conditions Temperature: Working temperature range -10 to +40°C;
Storage temperature range -40 to +80°C
Humidity: 85% RH or less (non-condensing)
Dimensions 96(W)×96(H)×135(D) mm (protruding parts not included)
Panel cutout dimensions 92×92+1-0 mm
Weight Approx. 0.9 kg
CE marking certification EMC directives: EN61326-1
Safety standard: EN61010-1, EN62311
Attachments AC input cord (nominal rating 125A) 3 m * ×1
3P-2P conversion plug for AC input cord * ×1
Mini-driver ×1
Ferrite core for sensor cable ×1
Ferrite core for AC input cord * ×1
BCD output connector (when BCD output option is installed) ×1
Operation manual ×1
* Included only for AC power supply specification

อ๊อปชั่น

Model
BCO BCD parallel data output interface
232 RS-232C communication interface
DAV D/A converter interface (voltage output)
DAI D/A converter interface (current output)

อุปกรณ์เสริมต่างๆ

Model
CAAC3P-B3 AC Supply cord 3 m
CAAC3P-CEE7/7-B2 AC Supply cord (Voltage resistance: 250 V) 2 m
CN3P-2P 3P-2P converter plug for AC input cord
CN35 D-Sub25p connector for RS-232C
CN21 BCD output connector
E04SR301334 Ferrite core
TSU01 Lightning surge unit
TSU03 Lightning surge unit, DC specification
