โครงร่างผลิตภัณฑ์

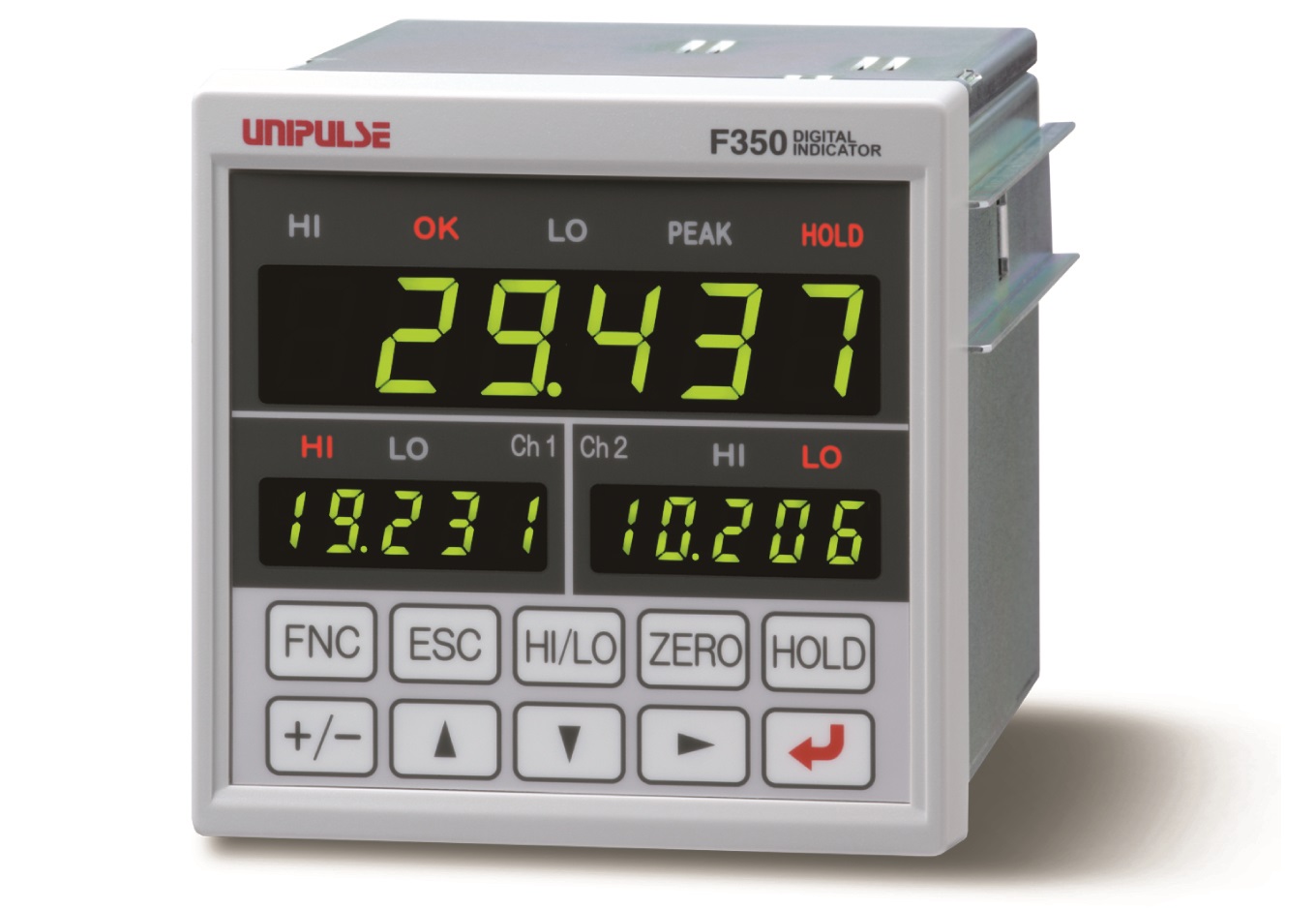

Digital Indicator of 2ch Input Type
F350 is a digital indicator that is capable of two-channel inputs of strain gauge type sensors. Equipped with calculation functions, such as ch1+ch2, ch1-ch2, F350 is ideal for total, difference, balance and other load measurements. This is a practical device equipped with compact DIN 96 square size, high-speed sampling at 3000 times/sec on each channel, and an equivalent input calibration function which allows calibration by simply key-inputting the rated value of the sensor without applying an actual load.

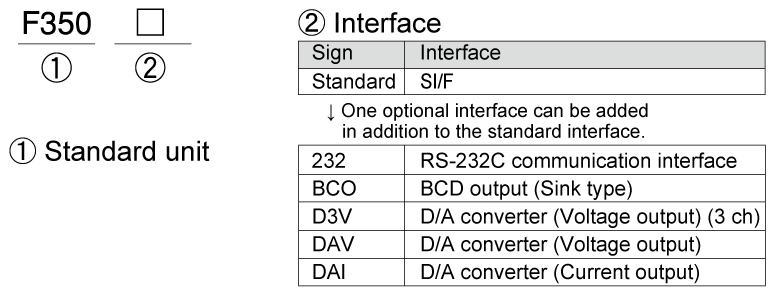

โครงสร้างของรหัสผลิตภัณฑ์
F350 is a digital indicator that is capable of two-channel inputs of strain gauge type sensors. Equipped with calculation functions, such as ch1+ch2, ch1-ch2, F350 is ideal for total, difference, balance and other load measurements. This is a practical device equipped with compact DIN 96 square size, high-speed sampling at 3000 times/sec on each channel, and an equivalent input calibration function which allows calibration by simply key-inputting the rated value of the sensor without applying an actual load.
ข้อมูลจำเพาะ
ANALOG SECTION｜DISPLAY SECTION｜SETTING SECTION｜EXTERNAL SIGNAL｜GENERAL SPECIFICATIONS｜ACCESSORIES
| Analog section | |
| Number of sensor inputs | 2 inputs (strain gauge input) |
|---|---|
| Excitation voltage | DC 10 V, 2.5 V ±5% (depending on settings), Output current: within 60 mA (2 channels total) |
| Signal input range*1 | -3.0 to +3.0 mV/V |
| Accuracy*1 | Non-linearity: within 0.02% FS ±1 digit (at 3.0 mV/V input) Zero drift: within 0.5 μV/℃ RTI Gain drift: within 0.01%/℃ |
| Analog filter*1 | Low pass filter (-6 dB/oct.), Selectable at 3 Hz, 30 Hz, 300 Hz, 1 kHz |
| A/D converter*1 | Speed: Selectable from 3000 times/sec. and 300 times/sec. Resolution: 24 bits (binary), Approx. 1/10000 for 1 mV/V |
| Analog monitor output*1 | Output level: Approx. 2 V per 1 mV/V strain gauge input Load resistance: 2 KΩ or more |
*1 As for each input, it is common.
| Display section | |
| Display unit | Main display: Character height 14.6 mm, Numerical display by 7-segment green LED (6-digit) Sub display: Character height 8 mm, Numerical display by 7-segment green LED(5-digit) |
|---|---|
| Indicated value | Main display: 5-digit, ±8.8.8.8.8, -99999 to +99999, Signs: Minus sign on most significant digit Sub display: 5-digit, ±8.8.8.8.8, -19999 to +19999, Signs: Minus sign on most significant digit |
| Display frequency | Selectable from 3, 6, 13 and 25 times/sec. |
| Status display | HI/ OK/ LO/ PEAK/ HOLD/ HI(ch1)/ LO(ch1)/ HI(ch2)/ LO(ch2) |
| Setting section | |
| Setting item | Work setting (comparison): Calculated value HI limit/ Calculated value LO limit/ ch1,2 HI limit/ ch1,2 LO limit Work setting (comparison/hold): Comparison function select/ Near zero/ Hysteresis/ Calculation hold function select/ Detection time/ Average sample number System setting (calculation/common operation): MD/ SI/F function select/ Display frequency System setting (ch operation): Digital filter/ Analog filter/ ZT/ D/Z synchronous mode/ A/D conversion speed select Calibration setting (ch calibration): Calibration function select/ Zero calibration/ Equivalent input calibration/ Actual load calibration/ Digital offset/ Digital zero limit/ Alarm HI limit/ Alarm LO limit System setting (BCO option): Output data select/ Output rate/ BCD/binary select System setting (232 option): Communication mode/ Communication condition/ Delimiter System setting (DAV/ DAI option): Output data select/ Zero scale value/ Full scale value Protect/initialize: Setting protect/ Key protect/ Initialize/ Password |
|---|---|
| Hold section | Sample, Peak, Bottom, Average Hold section setting (All section・External signal・External signal+Time) |
| External signal | |
| External output signal (11) |
HI/LO limit comparison (HI(calculation)・OK(calculation)・LO(calculation)・HI(ch1)・LO(ch1)・HI(ch2)・LO(ch2))/ alarm(ch1)/ alarm(ch2)/ hold complete/ RUN Open collector output circuit (sink type), Vceo ＝ 30 V (max), Ic ＝ 30 mA (max) |
|---|---|
| External input signal (4) |
hold section control/ hold release/ digital zero 1/ digital zero 2 Dry contact input circuit (minus common type), Ic ＝ 10 mA or less |
| Interface (Only one option can be installed) |
|
| SIF | 2-wire type serial interface |
|---|---|
| BCO | BCD parallel data output interface (Option) |
| D3V | D/A converter voltage output (3 ch) |
| DAV | D/A converter voltage output (Option) |
| DAI | D/A converter current output (Option) |
| 232 | RS-232C communication interface (Option) |
| General specifications | |
| Power supply voltage | AC 100 V to 240 V +10% -15% (free power source 50/60 Hz) |
|---|---|
| Power consumption | 6 W typ. |
| Operating conditions | Operation temperature: -10 to +40℃, Storage temperature: -40 to +80℃ Humidity: 85% RH or less (non-condensing) |
| Dimensions | 96(W) × 96(H) × 138(D) mm (Not including projections) |
| Weight | Approx. 1.0 kg |
| CE marking certification | EMC directives: EN61326-1 Safety standard: EN61010-1, EN62311 |
| Attachments | |
| AC input cord (Nominal rating 125 V) 3 m | 1 |
|---|---|
| AC input cord converter plug | 1 |
| FCN series I/O connector (with cover) | 1 |
| Ferrite core | 2 |
| Operation manual | 1 |
| Analog I/O connector terminal block (Same accessory as the attached one) |
1 |
| BCD output connector (when BCD output option is selected) |
1 |
| Operating tool (when D/A converter(3 ch) option is selected) |
1 |
| Mini driver (when D/A converter option is selected) |
1 |
อุปกรณ์เสริมต่างๆ
| Model | |
| CA372-I/O | Cable with FCN connector at one-end 3 m |
|---|---|
| CA325AC3P-B3 | AC input cord 3 m |
| CA325AC3P-CEE7/7-B2 | AC input cord (Voltage resistance: 250 V) 2 m |
| CN3P-2P | 3P-2P converter plug for AC input cord |
| CN34 | D-Sub9p connector for RS-232C |
| CN50 | FCN series I/O connector (with cover) |
| CN51 | BCD output connector |
| CN55 | FCN series I/O connector (with diagonal cover) |
| CN73 | D/A converter (3 ch) connector |
| CN81 | Analog I/O connector terminal block (Same accessory as the attached one) |
| DTC2-PSL | Case for F350 |
| GMP96×96 | Rubber packing |
| TSU01 | DC Lighting surge unit |
โปรดทราบว่า มีความเป็นไปได้ของความแตกต่างของสี ในอุปกรณ์ เช่น LEDs, หลอดภาพสี และ LCD เพราะกระบวนการผลิตที่มีจำนวนมาก
