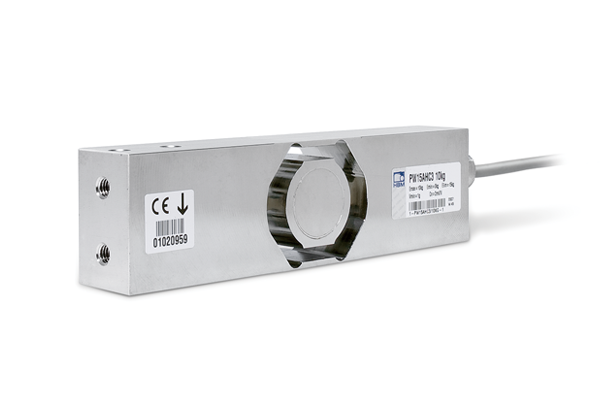

Product outline

Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.

● Capacity 10/ 20/ 50/ 100 kg
● Constructed of stainless steel, Lightweight
● Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.

Specifications

Model PW15AH-10KG, PW15AH-20KG,
PW15AH-50KG, PW15AH-100KG
Rated capacity 10 kg, 20 kg, 50 kg, 100 kg
Rated output 2.0±0.2 mV/V
Safe overload 150% R.C.
Maximum safe side overload 300% R.C.
Zero balance 0±0.1 mV/V
Non-linearity 0.0166% R.O. typ.
Hysteresis 0.0166% R.O. typ.
Compensated temperature range -10 to +40℃
Safe temperature range -10 to +50℃
Temperature effect on zero 0.0140% R.O./10℃
Temperature effect on span 0.0175% R.O./10℃(+20 to +40℃),
0.0117% R.O./10℃(-10 to +20℃)
Input resistance 300 to 500 Ω
Output resistance 300 to 500 Ω
Recommended excitation voltage 1 to 12 V
Insulation resistance 1000 MΩ or more
Degrees of protection IP68
Cable 6-conductor shield cable 3 m
Cable end: 7 wires
Cable color code ＋EXC：Blue
＋S：Green
－S：Gray
－EXC：Black
＋SIG：White
－SIG:Red
SHIELD：Yellow
Load cell material Stainless steel
Deflection at rated 0.5 mm or less
Natural frequency 10KG：169 Hz
20KG：232 Hz
50KG：352 Hz
100KG：492 Hz
Maximum off center distance 160 mm
Maximum platform size 500 × 400 mm
Weight 1.0 kg

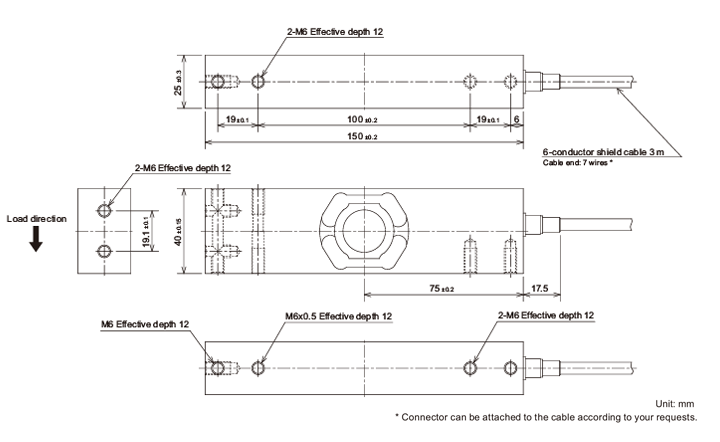

External dimension
