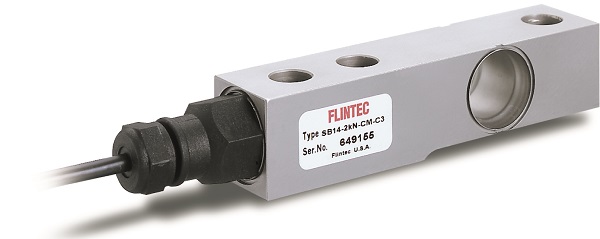

Product outline

Most appropriate for load control of platform scales, hopper scales, etc.

●　Capacity 2.5 kN / 5 kN / 12 kN / 25 kN
●　High accuracy, constructed of stainless steel, hermetically sealed
●　High input impedance: 1100 Ω
●　Applications: Platform scales, hopper scales, etc.

Specifications

Model SB14-2.5KN, SB14-5KN, SB14-12KN, SB14-25KN
Rated capacity 2.5 kN, 5 kN, 12 kN, 25 kN
Rated output 2 mV/V±0.1%
Safe overload 200% R.C.
Maximum safe side
overload		 100% R.C.
Zero balance ±5% R.O.
Combined error 0.0200% R.O.
Non-linearity 0.0166% R.O. typ.
Hysteresis 0.0166% R.O. typ.
Creep 0.0166% R.O./30 min
Compensated
temperature range		 -10 to +40℃
Safe temperature range -40 to +80℃
Temperature effect
on zero		 0.0122% R.O./10℃
Temperature effect
on span		 0.0100% R.O./10℃
Input resistance 1100±50 Ω
Output resistance 1000±2 Ω
Recommended excitation
voltage		 5 to 15 V(AC, DC)
Insulation resistance 5000 MΩ or more
Degrees of protection IP68
Cable 4-conductor color shield cable. Length 3 m.
Cable color code ＋EXC: Green
＋SIG: White
－EXC: Black
－SIG: Red
SHIELD: Yellow
Load cell material Stainless steel
Weight 1.2 kg

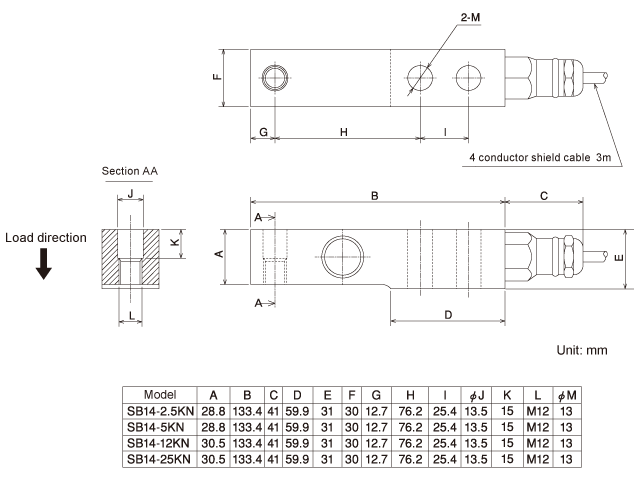

External dimension
