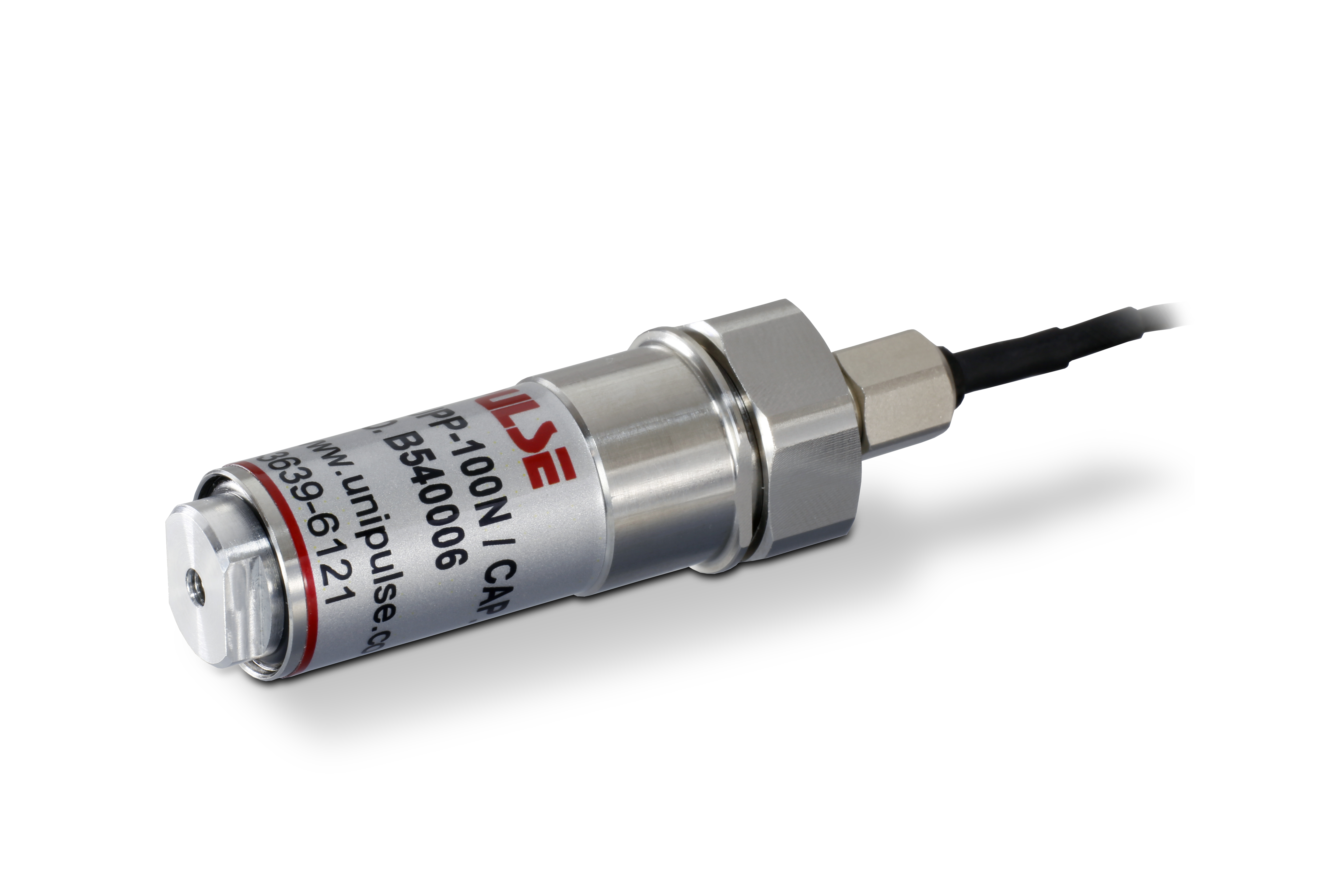

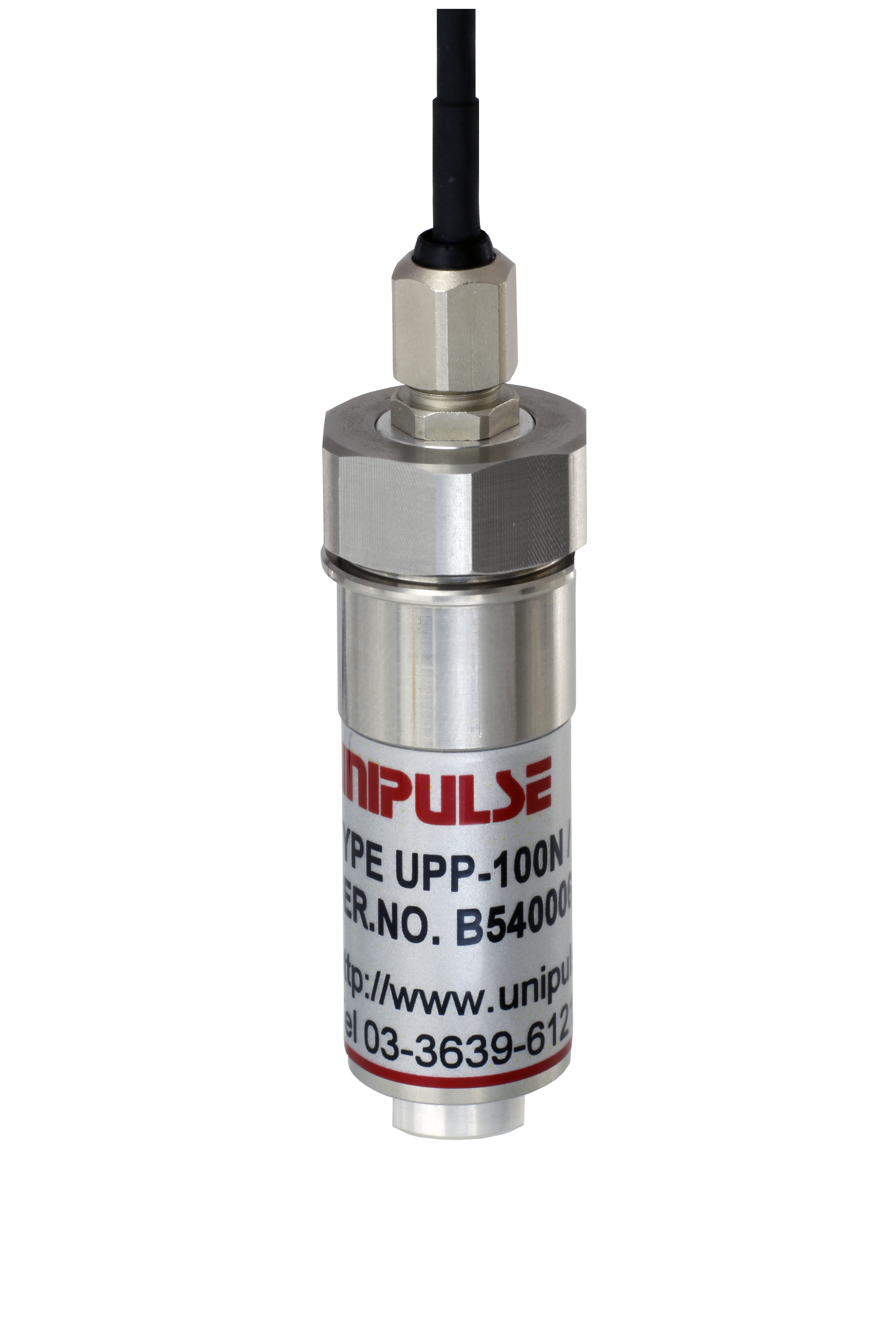

Product outline
Safe overload of 500% ! High axial stiffness !
Tension/compression loadcell
- Capacity 100 N
- Safe overload rating of 500%
- Suitable for click tester and push tester
- A loadcell with the high sensitivity and rigidity both
- The double shear type spring has a feature high axial stiffness

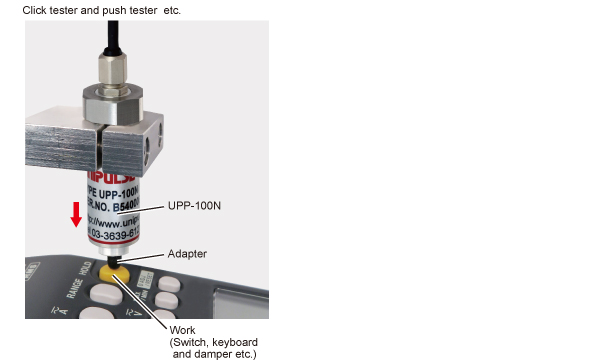

Example of use
![](https://www.unipulse.tokyo/th/wp-content/uploads/2023/08/UPP-100N_img02_en.jpg)
Specifications
Model | UPP-100N |
---|---|
Rated capacity | 100 N |
Rated output | Approx. 0.4 mV/V |
Safe overload | 500% R.C. |
Zero balance | 0.3 mV/V |
Non-linearity | 0.5% or less R.O. |
Hysteresis | 0.5% or less R.O. |
Repeatability | 0.5% or less R.O. |
Compensated temperature range |
0 to +40℃ |
Safe temperature range | -0 to +50℃ |
Temperature effect on zero | 1.0% R.O./10℃ or below |
Temperature effect on span | 0.5% R.O./10℃ or below |
Input resistance | Approx. 1000 Ω |
Output resistance | Approx. 1000 Ω |
Recommended excitation voltage |
10 V |
Insulation resistance (DC 50 V) |
1000 MΩ or more |
Deflection at rated | 3 μm |
Natural frequency | 11.7 kHz |
Cable | φ2 mm 4-conductor flexible cable (1.5 m) |
Cable color code | +EXC: Red +SIG: Green -EXC: (Black/Blue) -SIG: White SHIELD |
Loadcell material | Aluminum alloy |
Weight | Approx. 30 g |
RoHS directives | 2011/65/EU (EU)2015/863 |
